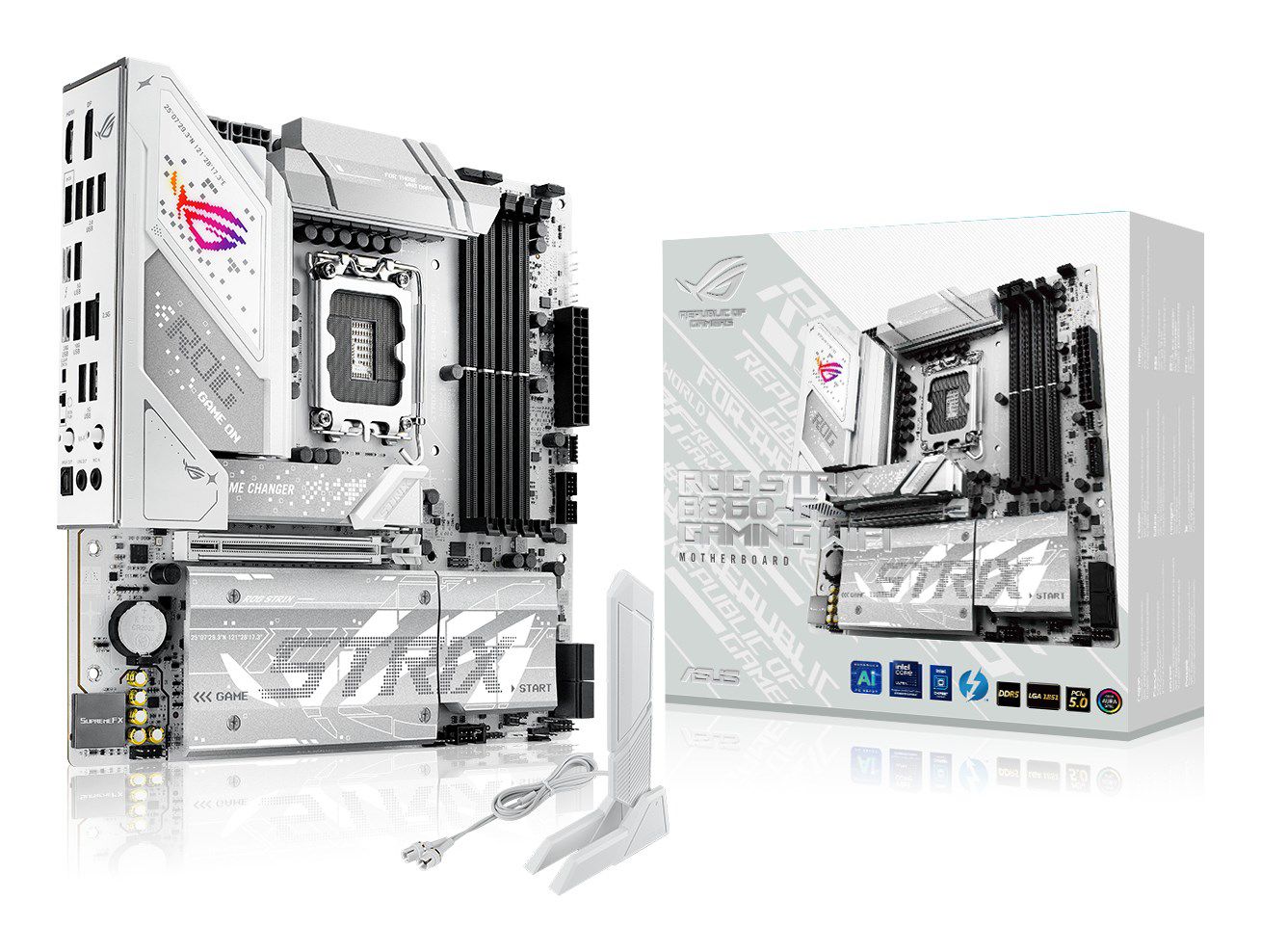

ASUS ROG STRIX B860-G GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Processor
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Motherboard form factor: micro ATX
Audio chip: Realtek ALC1220P
Motherboard chipset family: Intel
Product colour: White
Windows operating systems supported: Windows 11
Component for: PC

Memory
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 9066 MHz
ECC сompatibility: Non-ECC

Weight & dimensions
Height: 50 mm
Width: 244 mm
Depth: 244 mm

Network
Bluetooth: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
12V power connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 1

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package weight: 2.12 kg
Package height: 72.5 mm
Package width: 285 mm
Package depth: 274 mm

Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 5, 10, 1
Number of HDDs supported: 4
Number of storage drives supported: 8

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
Thunderbolt ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1

Other features
Weight: 1.23 kg
