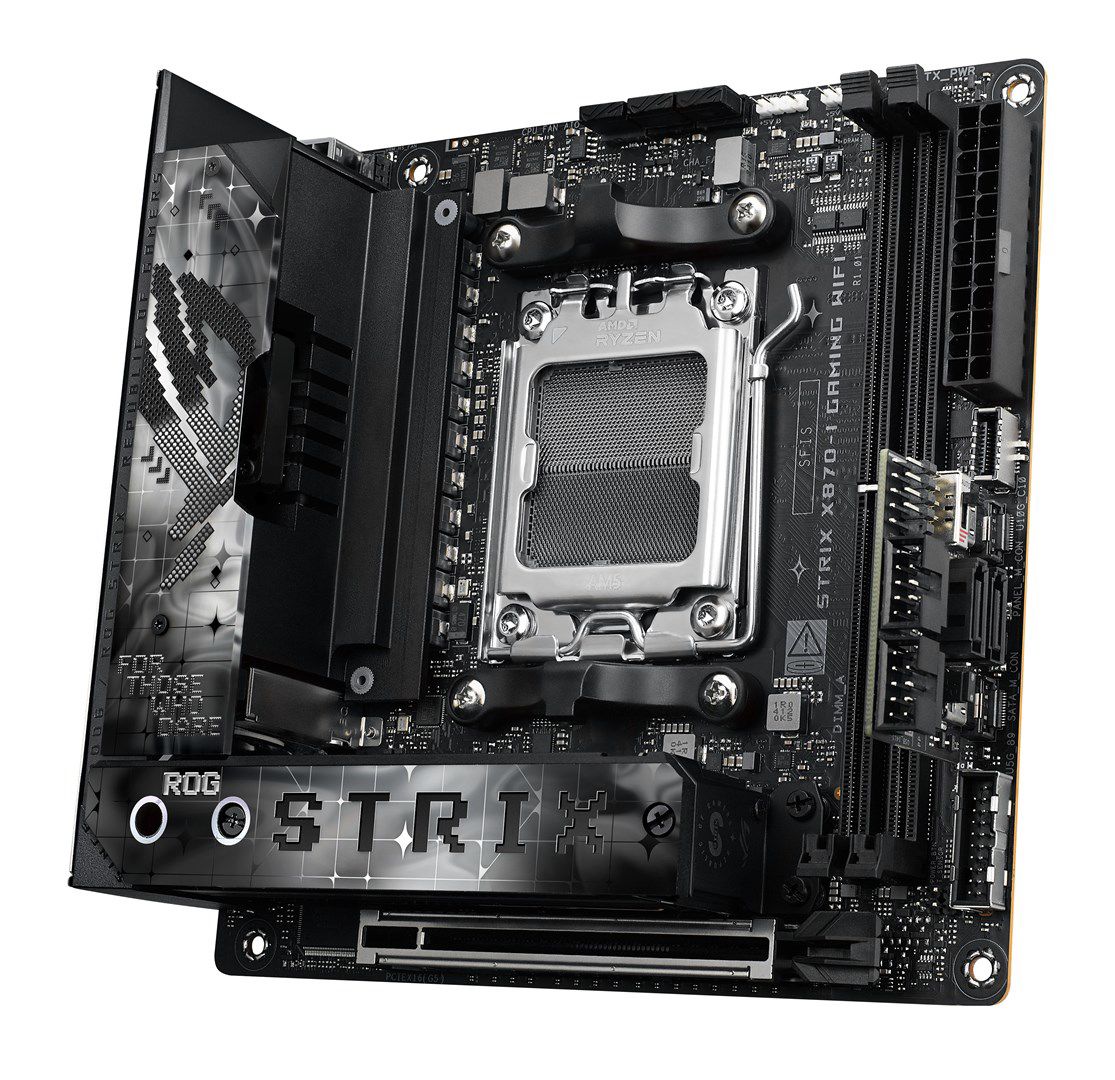

ASUS ROG STRIX X870-I GAMING WIFI AMD X870 socket AM5 mini ITX motherboard

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD X870
Product colour: Black
Motherboard form factor: mini ITX
Motherboard chipset family: AMD

Memory
Memory channels: Dual-channel
Maximum internal memory: 96 GB
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 8600 MHz
Number of memory slots: 2

Weight & dimensions
Depth: 170 mm
Width: 170 mm

Network
Bluetooth version: 5.4
Ethernet interface type: Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes

Internal I/O
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 2

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Storage controllers
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
Number of HDDs supported: 2
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 4

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 2.0 ports quantity: 3
USB4 Gen 3x2 ports quantity: 2

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
