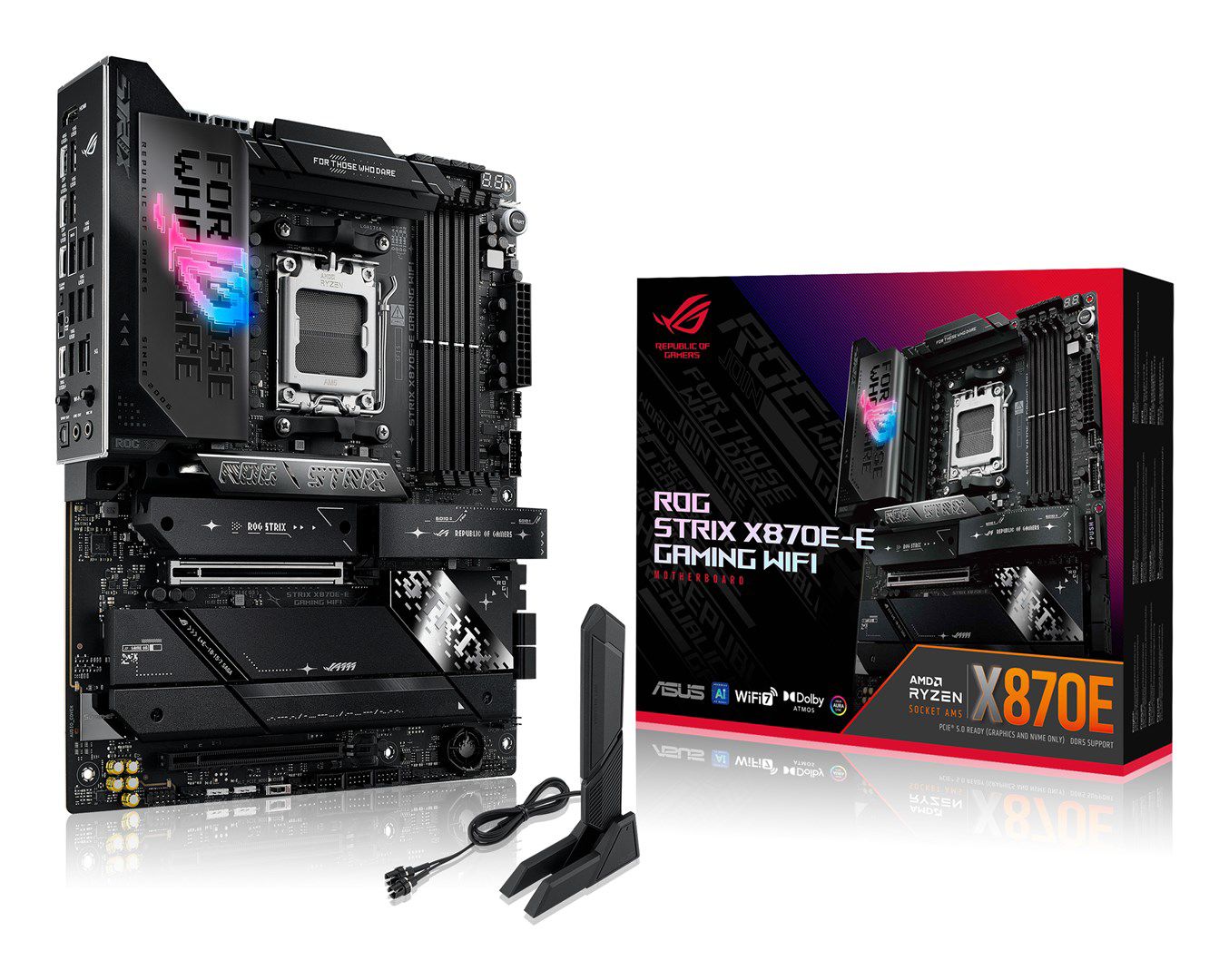

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

Processor
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD X870E
Motherboard form factor: ATX
Product colour: Black
Audio chip: Realtek ALC4080
Motherboard chipset family: AMD

Memory
Memory slots type: DIMM
ECC сompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Maximum internal memory: 192 GB
Number of memory slots: 4
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 50 mm

Network
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 5
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package height: 87 mm
Package weight: 3.02 kg
Package width: 365 mm
Package depth: 281 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 10, 5
RAID support: Yes
Number of storage drives supported: 9

Rear panel I/O ports
USB4 Gen 2x2 ports quantity: 2
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 9
Microphone in: Yes
S/PDIF out port: Yes
Ethernet LAN (RJ-45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 5

Other features
Weight: 2.06 kg

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
