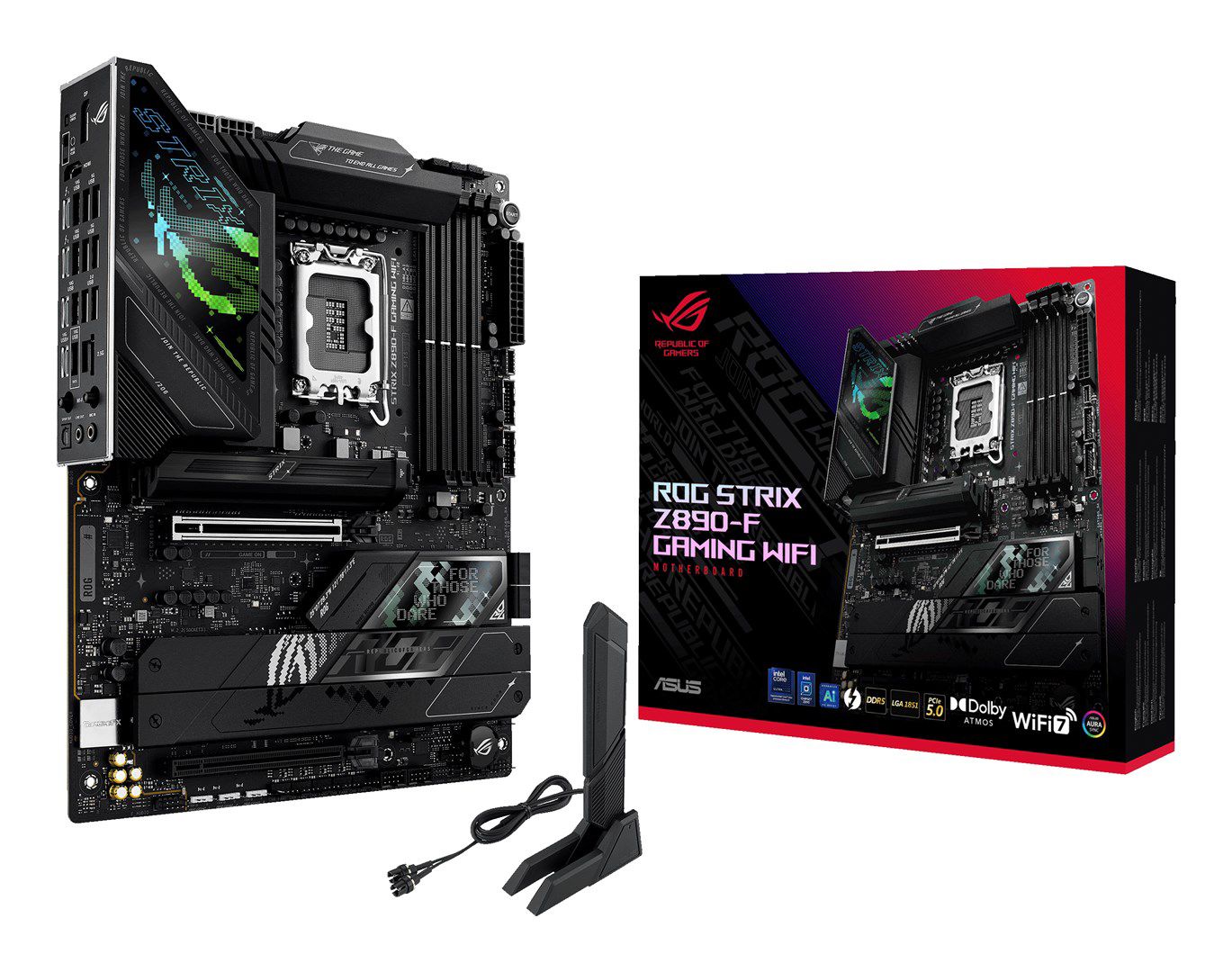

ASUS ROG STRIX Z890-F GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX

Processor
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11
Motherboard chipset: Intel Z890
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Audio chip: Realtek ALC4080
Product colour: Black

Memory
Maximum internal memory: 192 GB
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Supported memory clock speed (max): 8600 MHz
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Wi-Fi: Yes

Internal I/O
Thunderbolt headers: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 2
Number of chassis fan connectors: 5
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Packaging data
Package weight: 1.98 kg
Package height: 68 mm
Package width: 353 mm
Package depth: 273 mm

Storage controllers
RAID levels: 1, 5, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 9
Number of HDDs supported: 4

Rear panel I/O ports
DisplayPorts quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
Microphone in: Yes
Thunderbolt ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 5
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
