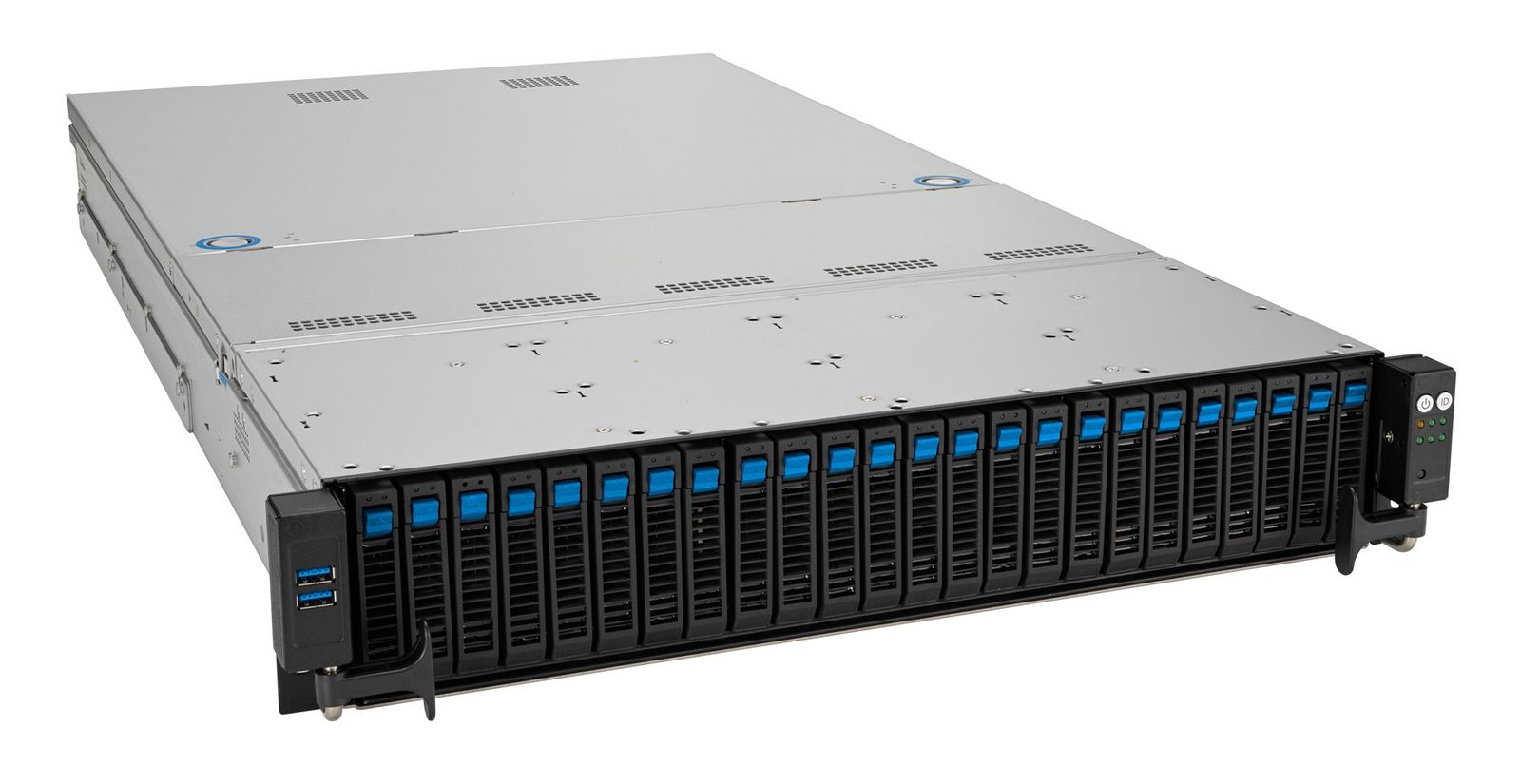

ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey

Technical details
Compliance certificates: CE, RCM, Federal Communications Commission (FCC), CB
Sustainability certificates: Federal Communications Commission (FCC), CE, RCM, CB

Processor
Processor socket: Socket SP5
Compatible processor series: AMD EPYC 9004
Processor manufacturer: AMD
Processor family: AMD EPYC
Number of processors supported: 1

Graphics
On-board graphics card memory: 64 MB
On-board graphics card model: Aspeed AST2600

Memory
Supported memory types: DDR5-SDRAM
Supported DIMM module capacities: 16GB, 64GB, 256GB, 32GB, 128GB
Number of DIMM slots: 24
Supported RDIMM clock speeds: 4000, 4800 MHz, 4400, 3600 MHz
Maximum internal memory: 6 TB

Design
On/off switch: Yes
Chassis type: Rack (2U)
LED indicators: Yes
Reset button: Yes
Product colour: Grey

Power
Redundant power supply (RPS) support: Yes
Power supply: 1600 W

Operational conditions
Storage relative humidity (H-H): 20 - 90%
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Depth: 840 mm
Width: 449 mm
Height: 88.1 mm
Weight: 19.1 kg

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I350-AM2

Packaging data
Package weight: 26.6 kg

Expansion slots
PCI Express slots version: 5.0

Storage
Storage drive sizes supported: M.2, 2.5
SSD form factor: M.2
Number of storage drives supported: 28
Number of 2.5" bays: 26
Hot-swap HDD bays: Yes
Supported storage drive types: HDD & SSD

Ports & interfaces
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
IPMI LAN (RJ-45) port: Yes
Ethernet LAN (RJ-45) ports: 2

Safety warning
Warnings: Do not disassemble the unit yourself., Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling.
