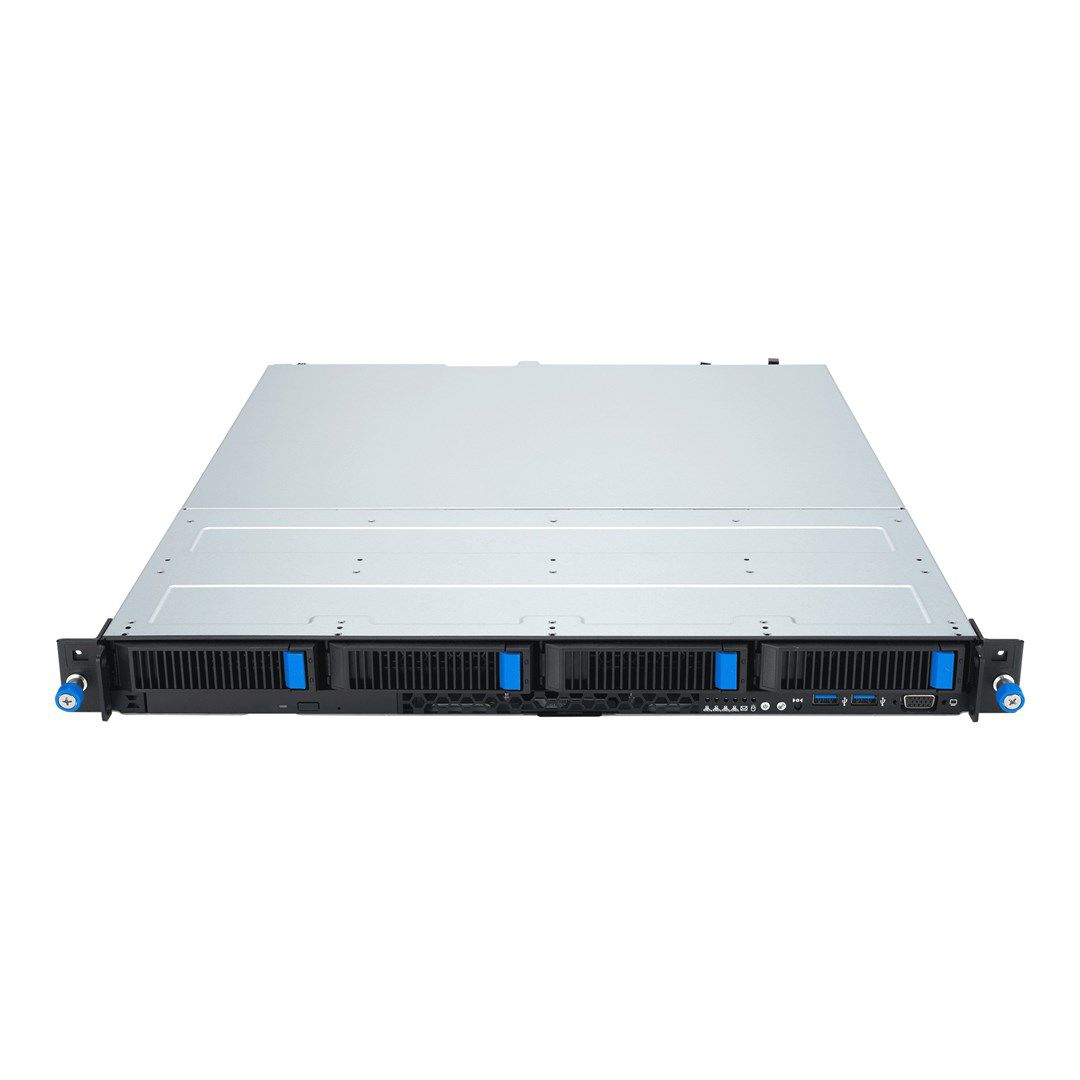

ASUS Server Platform RS300-E12-RS4 /1+1 450 W 90SF03A1-M00070

Processor
Number of processors supported: 1
Processor socket: LGA 1700
Motherboard chipset: Intel C262
Intel Xeon series: E-2400

Graphics
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 64 MB

Memory
Supported DIMM module capacities: 32GB, 8GB, 16GB
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Number of DIMM slots: 4
Supported memory types: DDR5 UDIMM
Supported UDIMM clock speeds: 3600
Certification: BSMI, CE, CB, FCC(Class A)

Design
Product colour: Silver
Chassis type: Rack (1U)

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Weight: 15.2 kg
Height: 44 mm
Width: 439.5 mm
Depth: 497 mm

Network
LAN controller: Intel® I210-AT
Ethernet interface type: Gigabit Ethernet, Fast Ethernet
Ethernet LAN: Yes

Expansion slots
Number of M.2 (M) slots: 1

Storage
Supported storage drive interfaces: PCIe/NVMe(M Key)/SATA (B+M Key)
Hot-swap HDD bays: Yes
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5, 3.5", M.2
Number of 3.5" bays: 4

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Number of SATA III connectors: 8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
COM ports quantity: 1

Safety warning
Warnings: Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling., Do not disassemble the unit yourself.
