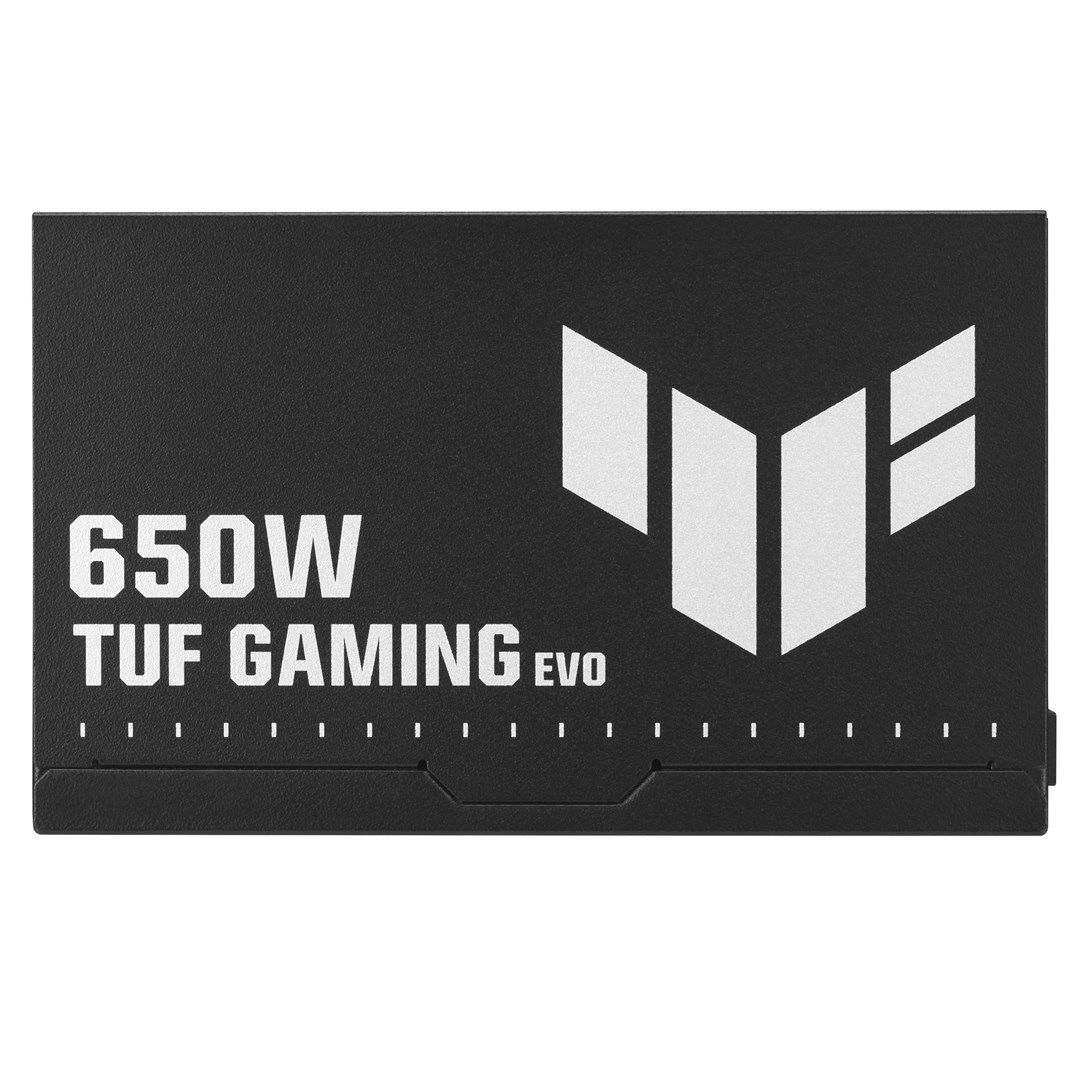

ASUS TUF-GAMING-650B-EVO power supply unit 650 W 20+4 pin ATX ATX Black

Design
Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Black
On/off switch: Yes
Fan location: Top

Power
Max output current (+5Vsb): 3 A
Combined power (+5Vsb): 15 W
Max output current (+12V): 54.16 A
Max output current (+3.3V): 12 A
Max output current (+5V): 12 A
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
AC input voltage: 100 - 240 V
Power protection features: Over power, Short circuit, Over voltage, Under voltage, Over current, Overheating
Combined power (+3.3V): 80 W
Total power: 650 W
Combined power (+5V): 80 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 650 W

Weight & dimensions
Depth: 150 mm
Weight: 1.25 kg
Height: 86 mm
Width: 140 mm

Performance
Bearing technology: DBB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 120000 h
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Purpose: PC

Packaging data
Package width: 282 mm
Package depth: 182 mm
Package weight: 2.07 kg
Package type: Box
Package height: 127 mm

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
SATA power cable length: 400 mm, 120
CPU power cable length: 65 cm
Peripheral (Molex) power cable length: 120, 400 mm
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
PCI Express power connectors (6+2 pin): 2
Cabling type: Fully-Modular
Peripheral (Molex) power connectors (4-pin): 2
