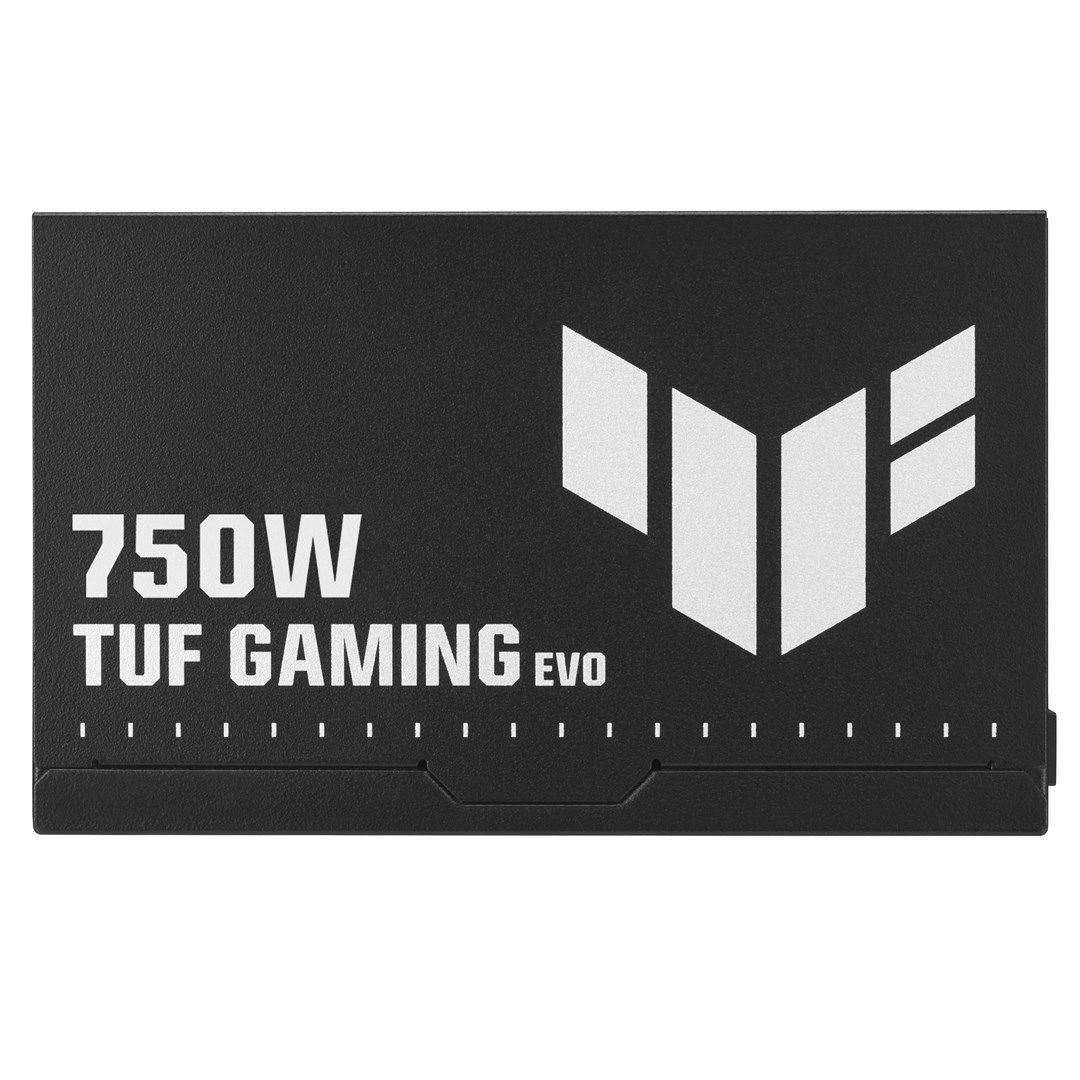

ASUS TUF-GAMING-750B-EVO power supply unit 750 W 20+4 pin ATX ATX Black

Design
On/off switch: Yes
Fan location: Top
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)

Power
Combined power (+5Vsb): 15 W
Max output current (+5V): 12 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 80 W
AC input voltage: 100 - 240 V
Max output current (-12V): 0.3 A
Max output current (+3.3V): 12 A
Combined power (+3.3V): 80 W
Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Over current
Total power: 750 W
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 62.5 A
Combined power (+12V): 750 W

Weight & dimensions
Width: 140 mm
Weight: 1.41 kg
Depth: 150 mm
Height: 86 mm

Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 120000 h
Bearing technology: DBB
Purpose: PC
ATX version: 3.1
Power supply unit (PSU) form factor: ATX

Packaging data
Package type: Box
Package height: 127 mm
Package width: 282 mm
Package weight: 2.11 kg
Package depth: 182 mm

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power cable length: 50 cm
Peripheral (Molex) power cable length: 400 mm, 120
PCI Express power connectors (6+2 pin): 3
PCI Express power cable length: 60 cm
Cabling type: Fully-Modular
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 120, 400 mm
CPU power cable length: 65 cm
CPU power connector (4+4 pin): Yes
