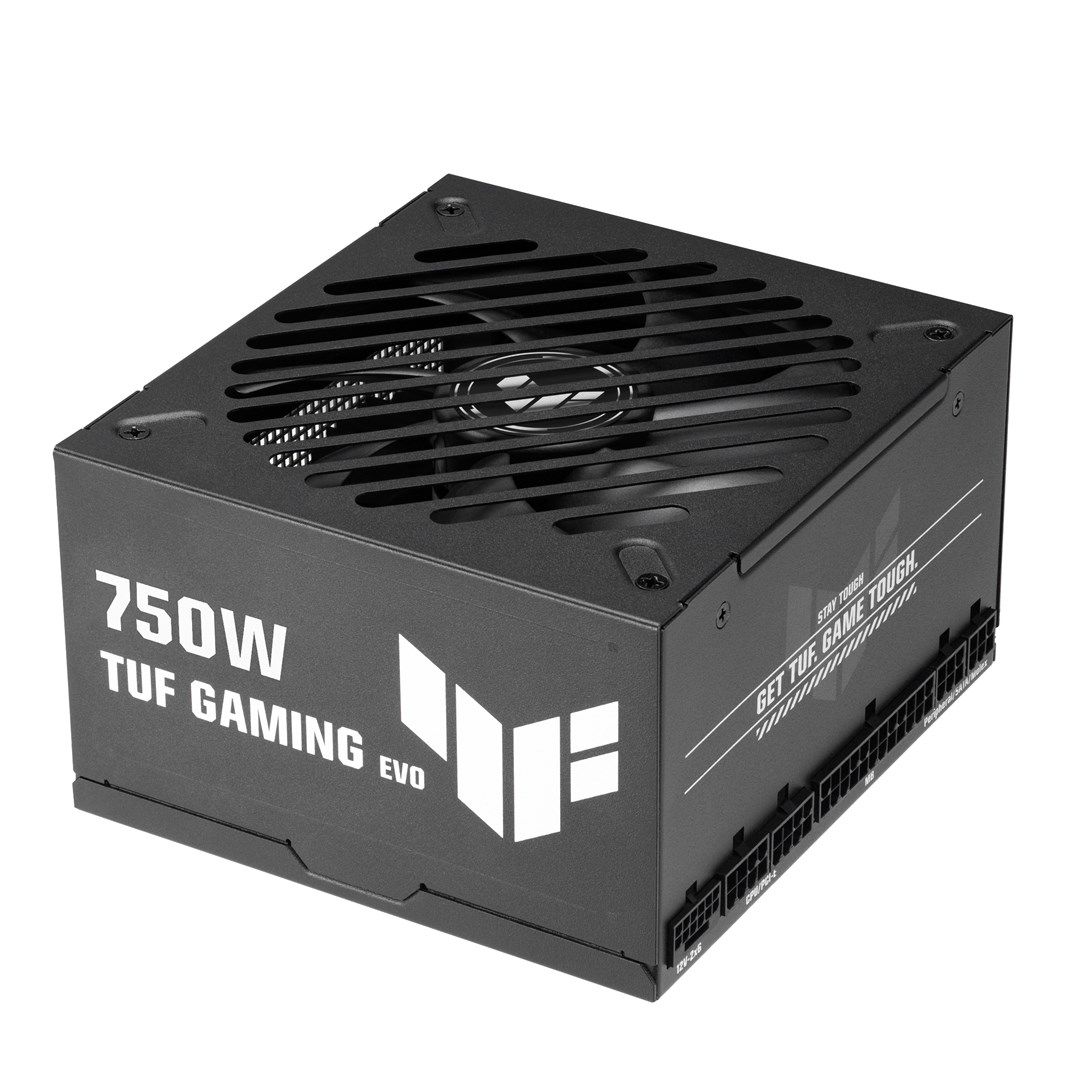

ASUS TUF-GAMING-750G-EVO power supply unit 750 W 20+4 pin ATX ATX Black

Design
Number of fans: 1 fan(s)
On/off switch: Yes
Illumination: No
Product colour: Black
Cooling type: Active
Fan location: Top

Power
Total power: 750 W
AC input voltage: 100 - 240 V
Power protection features: Under voltage, Over current, Over power, Overheating, Short circuit, Over voltage
Max output current (+3.3V): 20 A
Combined power (+12V): 750 W
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Combined power (+5Vsb): 15 W
Combined power (+5V): 110 W

Weight & dimensions
Height: 86 mm
Weight: 1.32 kg
Width: 140 mm
Depth: 150 mm

Performance
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Mean time between failures (MTBF): 120000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC
Bearing technology: DBB

Packaging data
Package weight: 2.06 kg
Package height: 127 mm
Package depth: 182 mm
Package width: 320 mm
Package type: Box

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
PCI Express power connectors (16-pin): 1
Peripheral (Molex) power connectors (4-pin): 2
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 2
SATA power cable length: 400, 120
PCI Express connector: Yes
Number of SATA power connectors: 4
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 120, 400 mm
Motherboard power cable length: 50 cm
Motherboard power connector: 20+4 pin ATX
