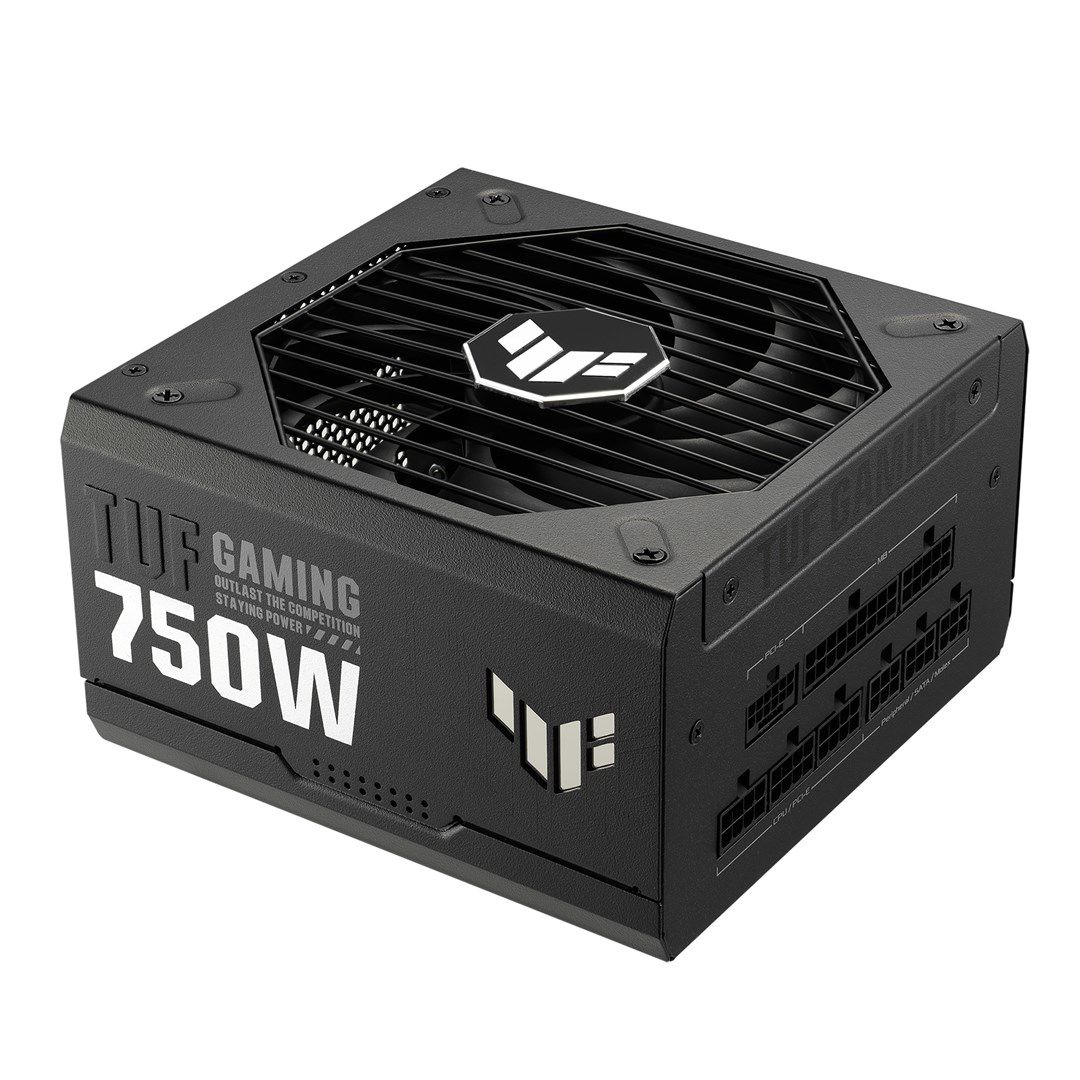

ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black

Technical details
Sustainability compliance: Yes

Design
On/off switch: Yes
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Product colour: Black
Cooling type: Active

Power
Combined power (+3.3V): 130 W
Total power: 750 W
Combined power (+12V): 744 W
Max output current (+5V): 25 A
Power protection features: Short circuit, Over voltage, Overcharge, Overheating, Under voltage, Over power
Combined power (+5Vsb): 15 W
Combined power (-12V): 9.6 W
Max output current (+12V): 62 A
Combined power (+5V): 130 W
Efficiency: 92%
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.8 A
Max output current (+3.3V): 25 A
AC input voltage: 100 - 240 V

Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.38 kg

Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
80 PLUS certification: 80 PLUS Gold

Packaging data
Package depth: 200 mm
Package height: 108 mm
Package weight: 3.07 kg
Package width: 310 mm
Package type: Box

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included: Yes

Certificates
Compliance certificates: RoHS

Ports & interfaces
ATX power connector (20+4 pin): Yes
SATA power cable length: 120, 400 mm
PCI Express power connectors (16-pin): 1
Motherboard power connector: 20+4 pin ATX
Cabling type: Fully-Modular
Peripheral (Molex) power cable length: 150, 400 mm
Motherboard power cable length: 61 cm
CPU power cable length: 65 cm
PCI Express power connectors (8-pin): 3
CPU power connector (4+4 pin): Yes
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 4

Safety warning
Warnings: Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
