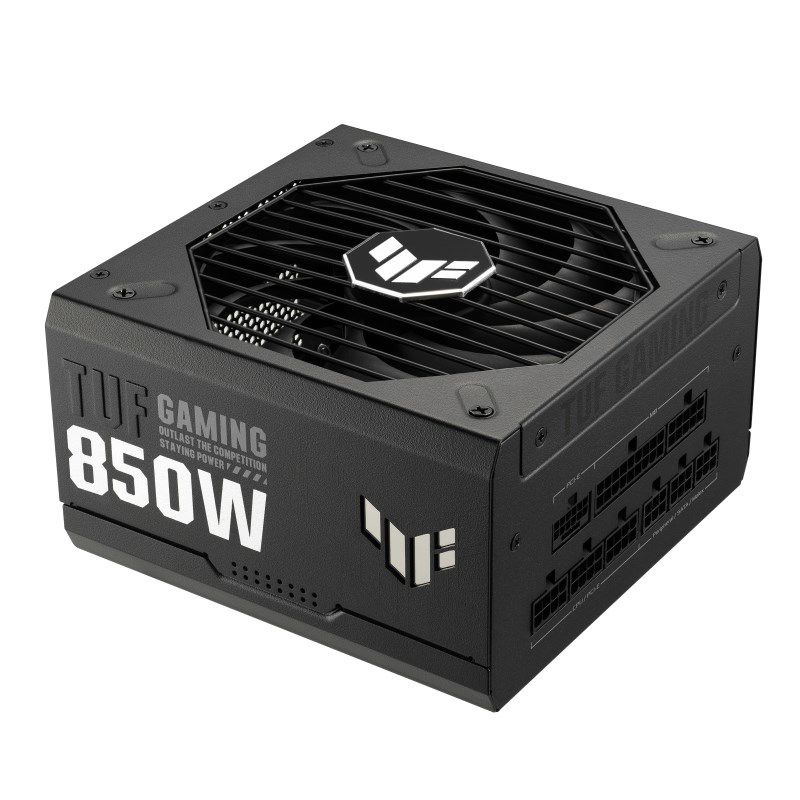

ASUS TUF Gaming 850W Gold power supply unit 24-pin ATX ATX Black

Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Power
Combined power (+12V): 850 W
Power protection features: Over power, Under voltage, Over current, Short circuit, Over voltage
Combined power (+5V): 130 W
Combined power (-12V): 9.6 W
Combined power (+3.3V): 130 W
Max output current (+5Vsb): 3 A
AC input voltage: 100 - 240 V
Max output current (+5V): 25 A
Combined power (+5Vsb): 15 W
Efficiency: 92%
Total power: 850 W
Max output current (+12V): 70.8 A
Max output current (-12V): 0.8 A
Max output current (+3.3V): 25 A

Weight & dimensions
Weight: 2.38 kg
Height: 86 mm
Width: 150 mm
Depth: 150 mm

Performance
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
80 PLUS certification: 80 PLUS Gold
Purpose: PC

Packaging data
Package width: 310 mm
Package height: 108 mm
Package depth: 200 mm
Package weight: 3.07 kg
Package type: Box

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates
Compliance certificates: RoHS

Ports & interfaces
Peripheral (Molex) power cable length: 150, 400 mm
PCI Express power connectors (16-pin): 1
Motherboard power cable length: 61 cm
Cabling type: Fully-Modular
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power connector: 24-pin ATX
SATA power cable length: 400 mm, 120
PCI Express power cable length: 67.5 cm
PCI Express power connectors (8-pin): 3
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
Number of SATA power connectors: 5

Safety warning
Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
