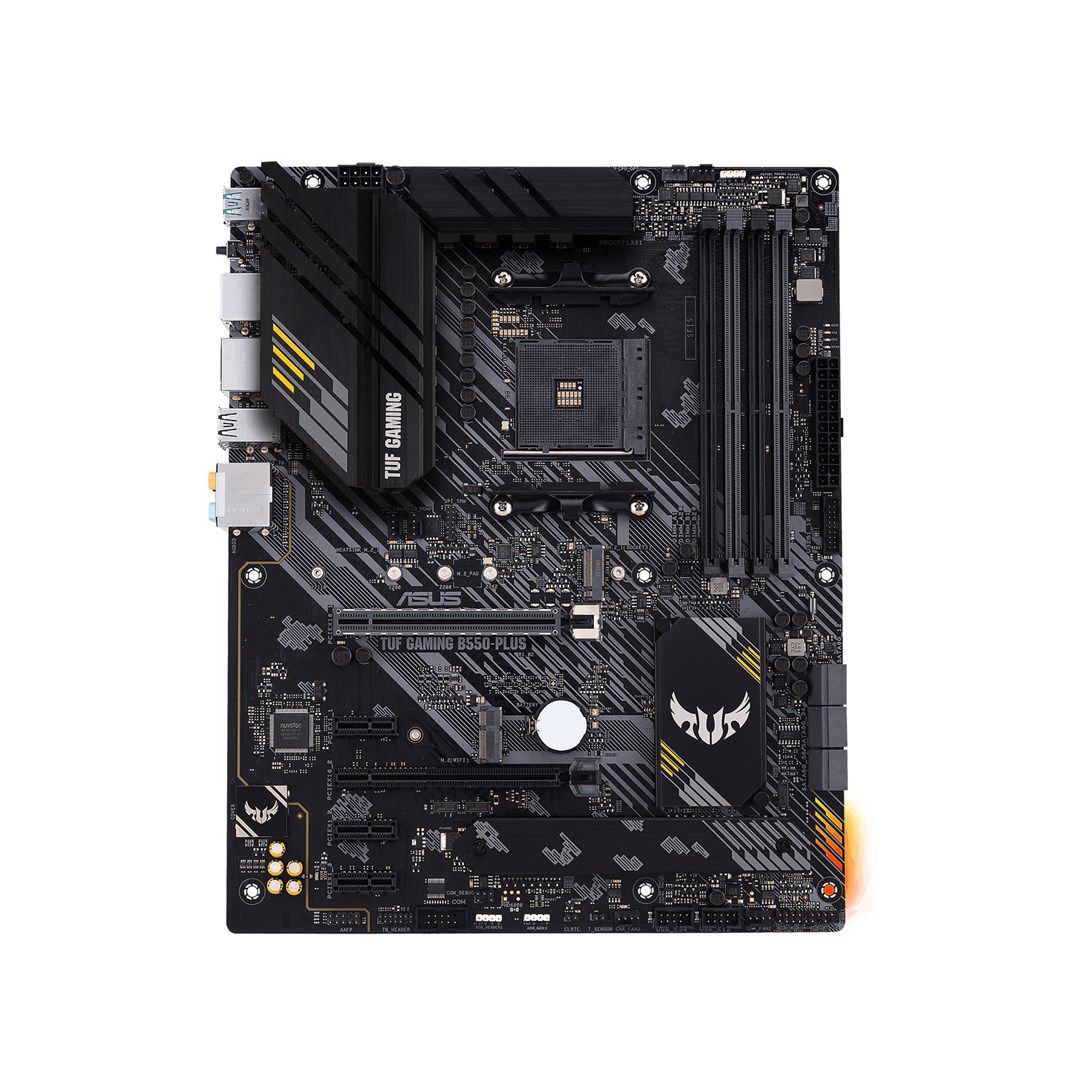

ASUS TUF Gaming B550-PLUS Socket AM4 ATX AMD B550

Processor
Processor socket: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Supported processor sockets: Socket AM4

Graphics
Parallel processing technology support: 2-Way CrossFireX

Features
Windows operating systems supported: Windows 10 x64
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC S1200A
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550

Memory
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory clock speeds: 4133 MHz, 4000, 3733, 4400, 3866, 3333, 2400, 2800, 3000, 3200 MHz, 2666, 4266, 2133, 4600, 3600, 3466
Maximum internal memory: 128 GB

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125B

Internal I/O
TPM connector: Yes
Number of chassis fan connectors: 3
EPS power connector (8-pin): Yes
CPU fan connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA connectors: 4

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, Serial ATA
RAID levels: 10, 0, 1

Rear panel I/O ports
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 3
