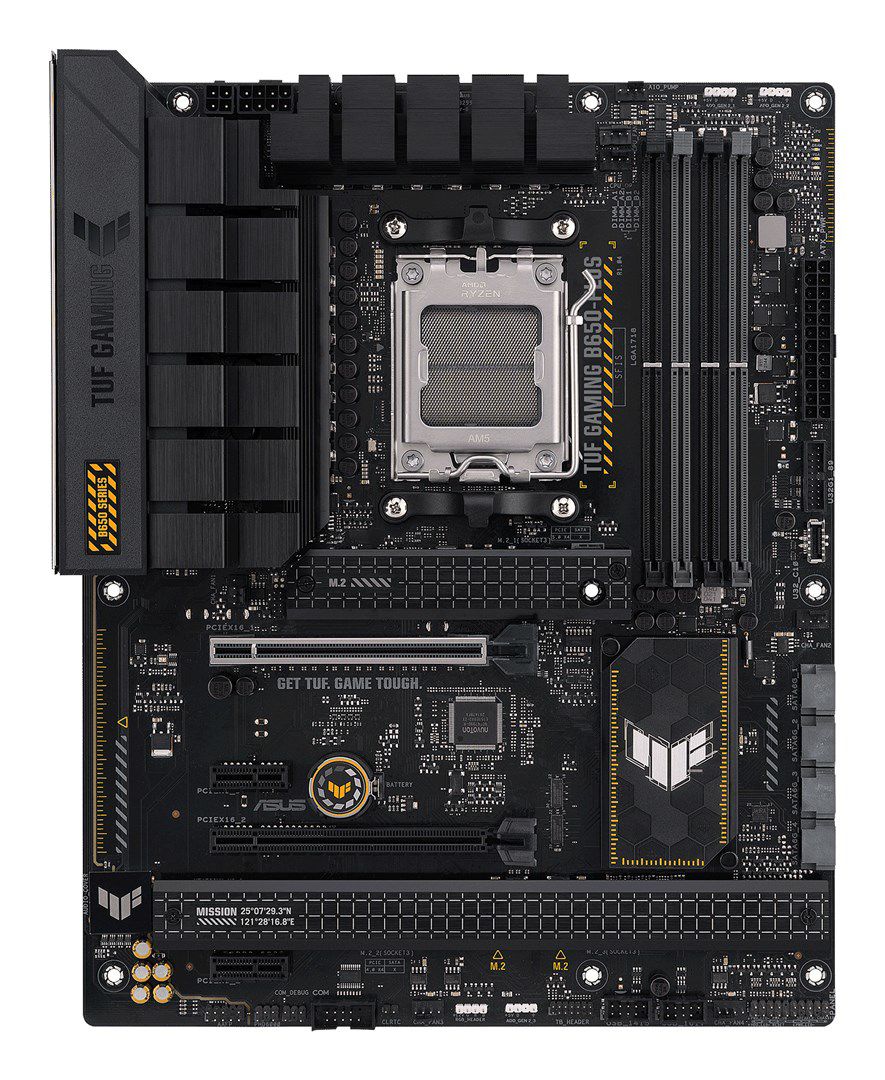

ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11 x64, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset: AMD B650
Component for: PC
Motherboard form factor: ATX
Power source type: ATX
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 5800, 5400, 5200, 5000, 4800, 5600, 6200, 6000, 6400 MHz
Supported memory clock speed (max): 6400 MHz
ECC сompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Number of memory slots: 4
Unbuffered memory: Yes
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory types: DDR5-SDRAM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
12V power connector: Yes
Number of chassis fan connectors: 4
RGB LED pin header: Yes
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package weight: 1.36 kg
Package height: 68 mm
Package width: 338 mm
Package depth: 273 mm

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 10, 0
RAID support: Yes

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI version: 2.1
Line-in: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
HDMI ports quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x4 (Gen 1.x) slots: 2

Other features
Back-to-BIOS button: Yes
