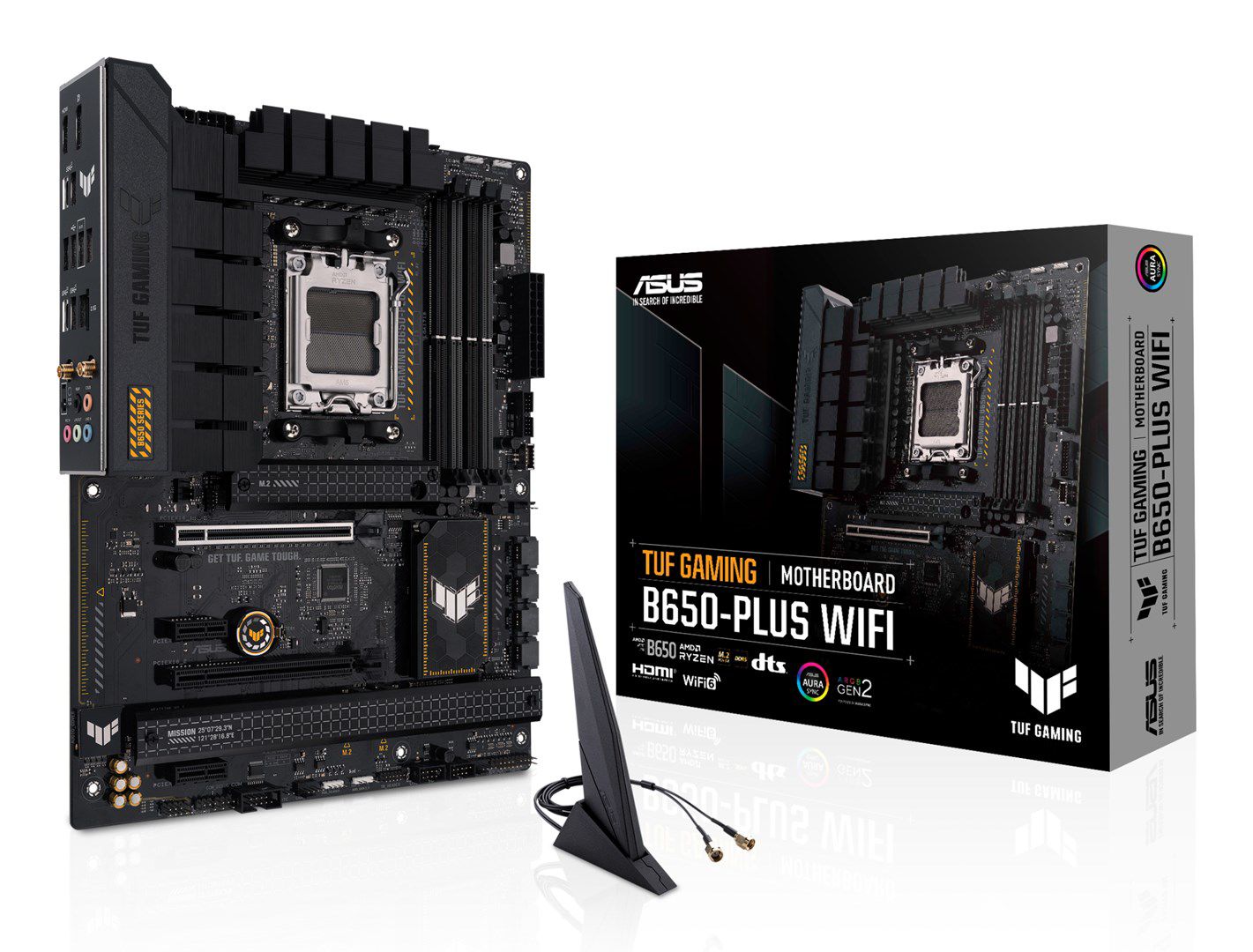

ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Product colour: Black
Motherboard chipset family: AMD
Motherboard form factor: ATX

Memory
Supported memory clock speeds: 6800, 7600, 7000, 4800, 5200, 6200, 5800, 5400 MHz, 6000, 6600, 5000, 6400, 5600, 7200
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel

Weight & dimensions
Width: 305 mm
Height: 50 mm
Depth: 244 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac)
Bluetooth version: 5.2
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
Thunderbolt headers: 1
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 4
USB 2.0 connectors: 2
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.36 kg
Package width: 338 mm
Package depth: 273 mm
Package height: 68 mm

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 10, 1
Number of storage drives supported: 7

Rear panel I/O ports
S/PDIF out port: No
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 2

Other features
Weight: 1.2 kg
