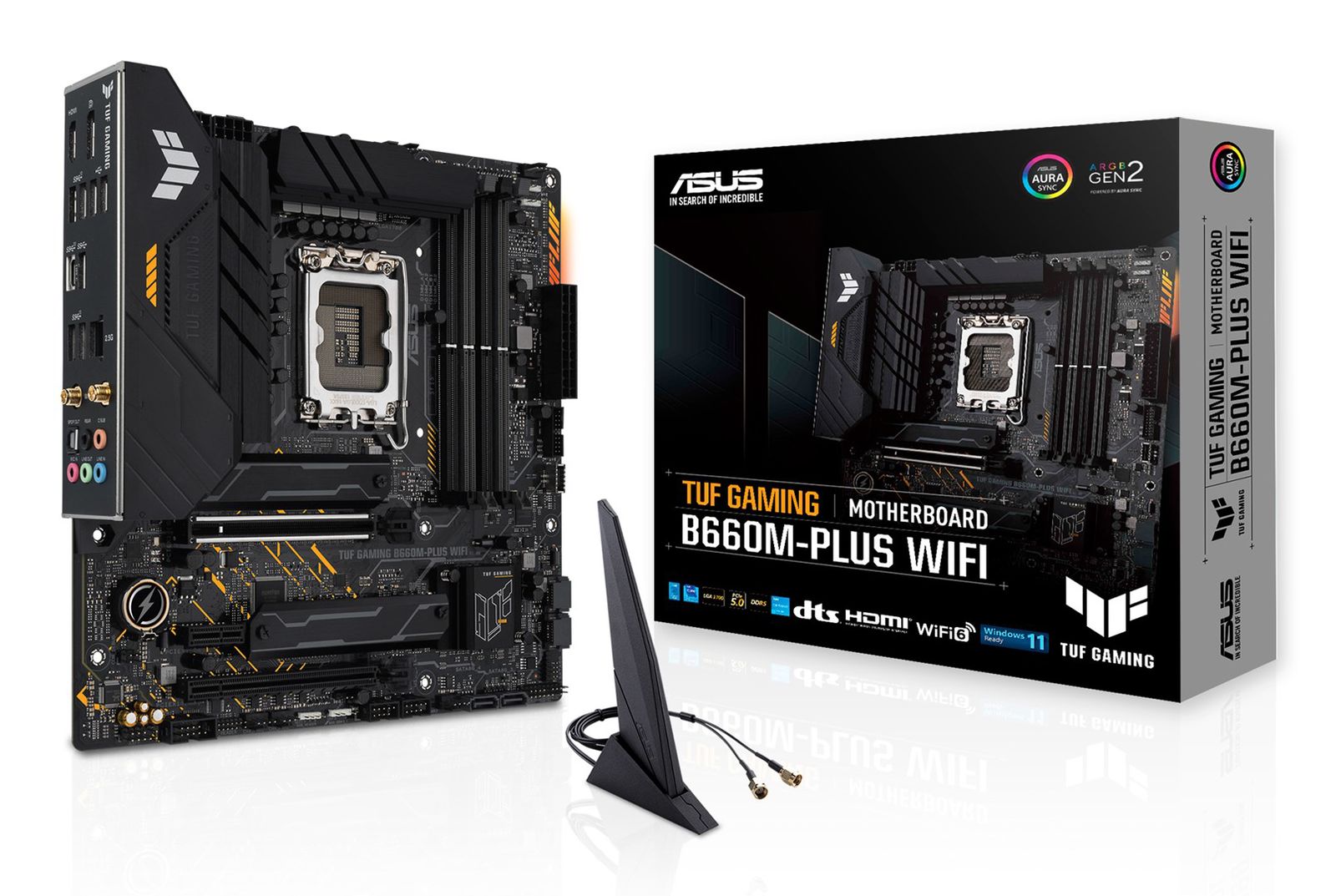

ASUS TUF GAMING B660M-PLUS WIFI Intel B660 LGA 1700 micro ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Component for: PC
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset: Intel B660

Memory
Memory channels: Dual-channel
Number of memory slots: 4
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Supported memory clock speeds: 5600 MHz, 5000, 4800, 5800, 5400, 6000, 5200
Maximum internal memory: 128 GB
ECC сompatibility: Non-ECC

Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 68 mm

Network
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth version: 5.2
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth: Yes

Internal I/O
EPS power connector (8-pin): Yes
Chassis intrusion connector: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Thunderbolt headers: 1
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of COM connectors: 1
Number of chassis fan connectors: 3
Front panel audio connector: Yes
12V power connector: Yes
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
BIOS memory size: 128 Mbit

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
RAID levels: 0, 10, 5, 1
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Headphone outputs: 5
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Digital audio optical out: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1

Other features
Weight: 1.35 kg

Logistics data
Harmonized System (HS) code: 84733020
