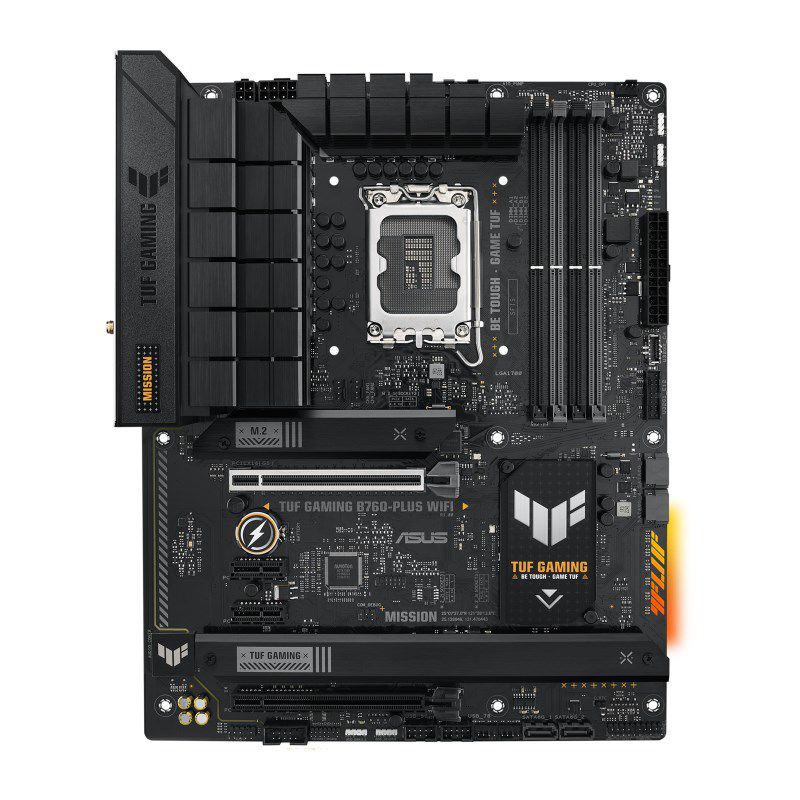

ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX

Processor
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Compatible processor series: Intel® Core™ i7, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: ATX
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Audio output channels: 7.1 channels

Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 5066 MHz
Memory channels: Dual-channel

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.2
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
USB 2.0 connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
Number of COM connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 3
EPS power connector (8-pin): Yes
12V power connector: Yes
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
Front panel connector: Yes
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package height: 53 mm
Package depth: 266 mm
Package width: 328 mm
Package weight: 1.16 kg

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 5, 10, 1, 0
Supported storage drive types: HDD & SSD
Number of storage drives supported: 7
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0, SATA III

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI ports quantity: 1
Line-in: Yes
USB 2.0 ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
