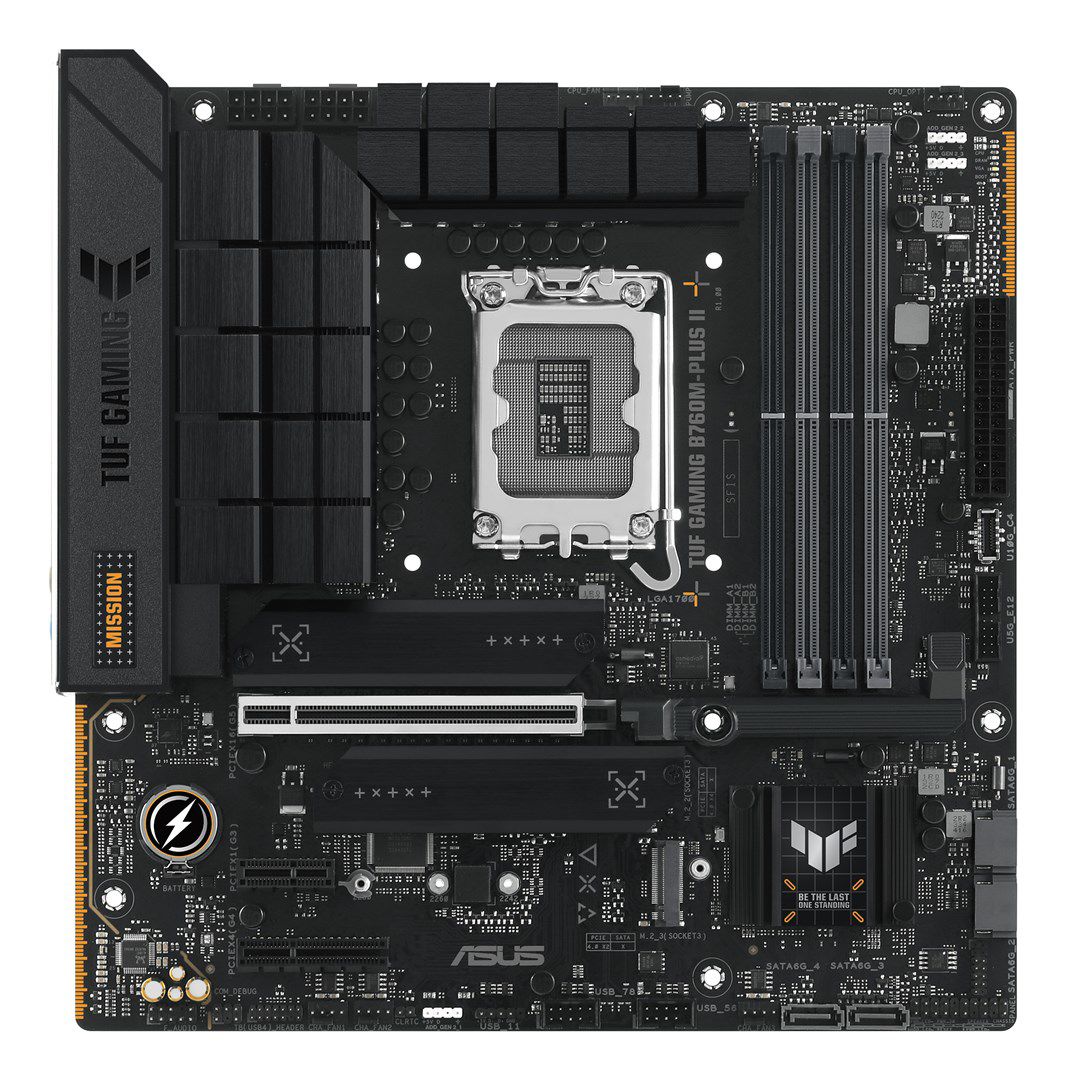

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

Processor
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Memory
ECC сompatibility: Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speeds: 5000, 6000, 5800, 5400, 7400, 7600, 7800, 4800 MHz, 6600, 6400, 5600, 7200, 7000, 6200, 5200, 6800
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Supported memory clock speed (max): 7800 MHz

Weight & dimensions
Width: 244 mm
Height: 50 mm
Depth: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
12V power connector: Yes
Number of SATA III connectors: 4
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 3
EPS power connector (8-pin): Yes
USB 2.0 connectors: 3
Front panel audio connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.65 kg
Package height: 71 mm
Package width: 280 mm
Package depth: 265 mm

Packaging content
Screws included: Yes
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
RAID levels: 10, 0, 5, 1
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
S/PDIF out port: Yes
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Headphone outputs: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1

Other features
Weight: 982 g

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
