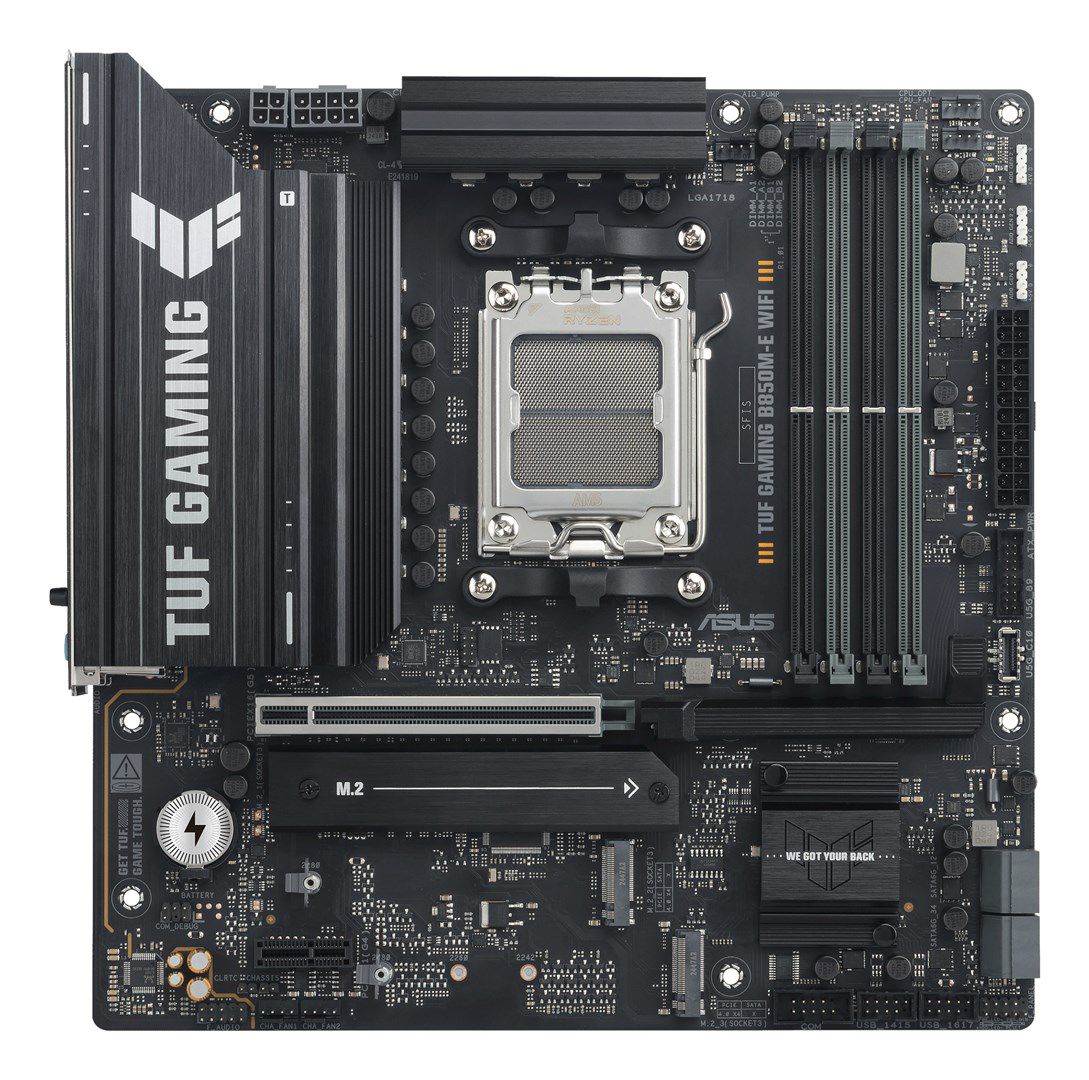

ASUS TUF GAMING B850M-E WIFI AMD B850 Socket AM5 micro ATX

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: AMD B850
Cooling type: Passive
Product colour: Grey
Power source type: ATX
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard chipset family: AMD
Audio output channels: 7.1 channels

Memory
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory clock speed (max): 8000 MHz
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.3

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of COM connectors: 1
CPU fan connector: Yes
Front panel audio connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
USB 2.0 connectors: 2
Chassis intrusion connector: Yes
Number of chassis fan connectors: 2
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Front panel connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Number of EPS power connectors (8-pin): 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.7 kg
Package width: 275 mm
Package depth: 275 mm
Package height: 67.4 mm

Packaging content
Cables included: SATA
Screws included: Yes
Antenna included: Yes

Storage controllers
RAID levels: 0, 10, 1, 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 7
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Line-in: Yes
Headphone outputs: 1
WiFi-AP antenna jack: 2

Expansion slots
Number of M.2 (M) slots: 3
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
3rd M.2 largest key size: 2280
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280

Other features
Weight: 1.01 kg
Quick installation guide: Yes
