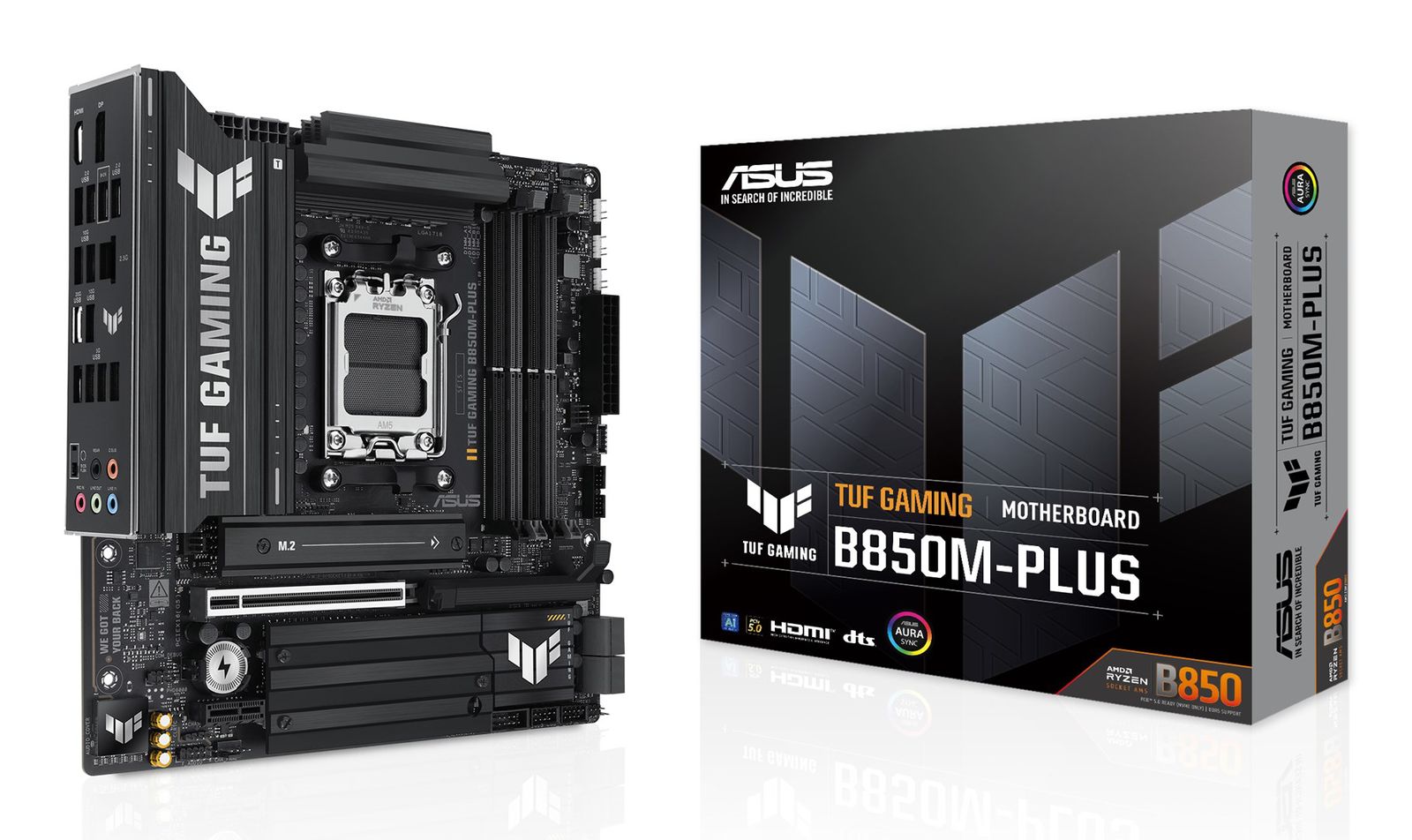

ASUS TUF GAMING B850M-PLUS AMD B850 Socket AM5 micro ATX

Processor
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Graphics
Parallel processing technology support: Not supported

Features
Component for: PC
Motherboard chipset: AMD B850
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC1220P
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels

Memory
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
12V power connector: Yes
S/PDIF out connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 3
Chassis intrusion connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package depth: 275 mm
Package width: 275 mm
Package height: 67.5 mm
Package weight: 1.65 kg

Packaging content
Screws included: Yes
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
RAID levels: 0, 5, 1, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of storage drives supported: 7
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB 2.0 ports quantity: 4

Expansion slots
1st M.2 largest key size: 2280
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 largest key size: 2280
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3

Other features
Weight: 1.19 kg
