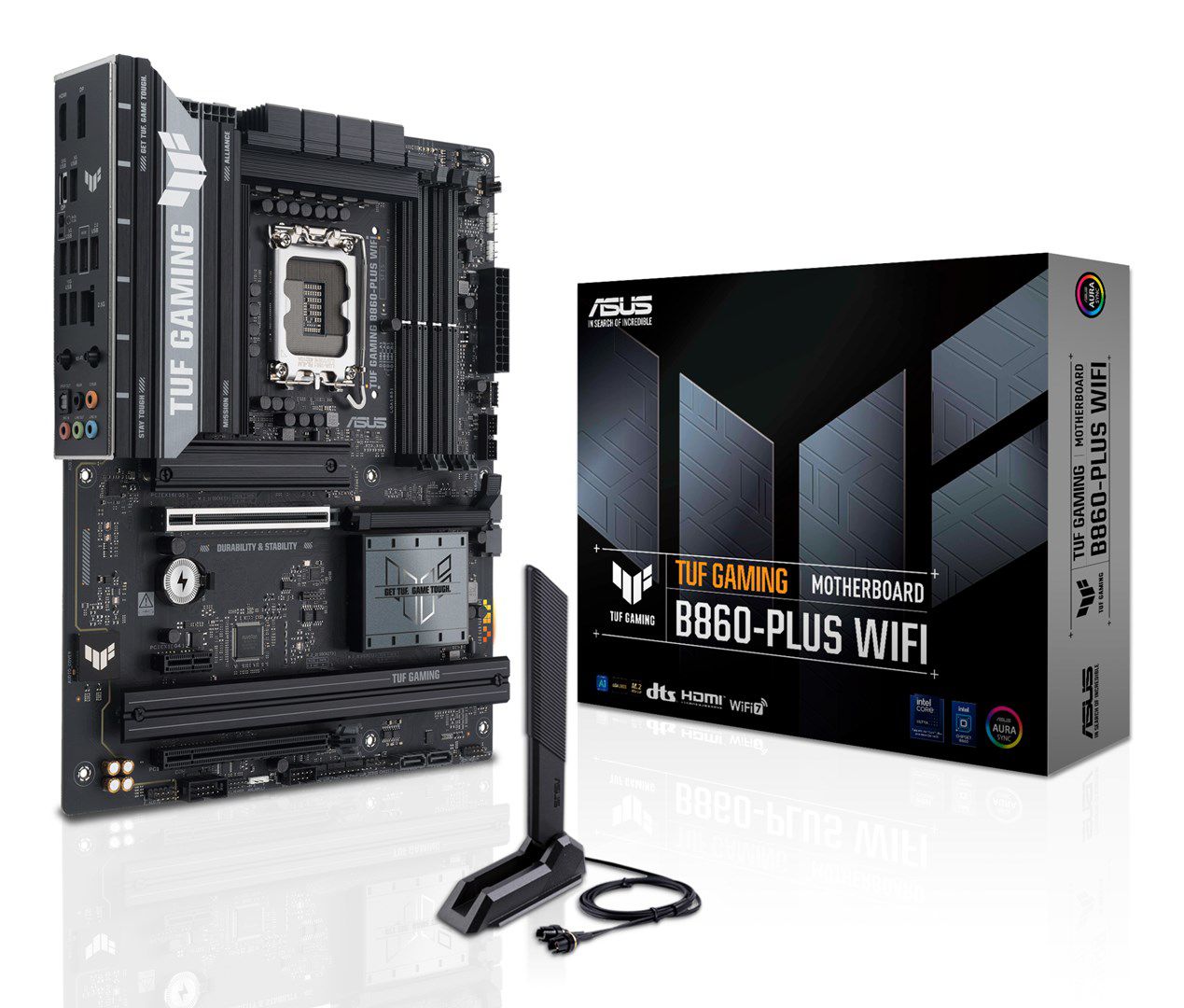

ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX motherboard

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Product colour: Black
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11

Memory
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O
USB 2.0 connectors: 1
S/PDIF out connector: Yes
Thunderbolt headers: 1
Chassis intrusion connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
12V power connector: Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 4

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 353 mm
Package height: 68 mm
Package weight: 2.1 kg
Package depth: 273 mm

Packaging content
Cables included: SATA
Antenna included: Yes
Screws included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 1, 5
Number of storage drives supported: 7
Number of HDDs supported: 4
RAID support: Yes

Rear panel I/O ports
S/PDIF out port: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
WiFi-AP antenna jack: 1
DisplayPorts quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0

Safety warning
Warnings: When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician.
