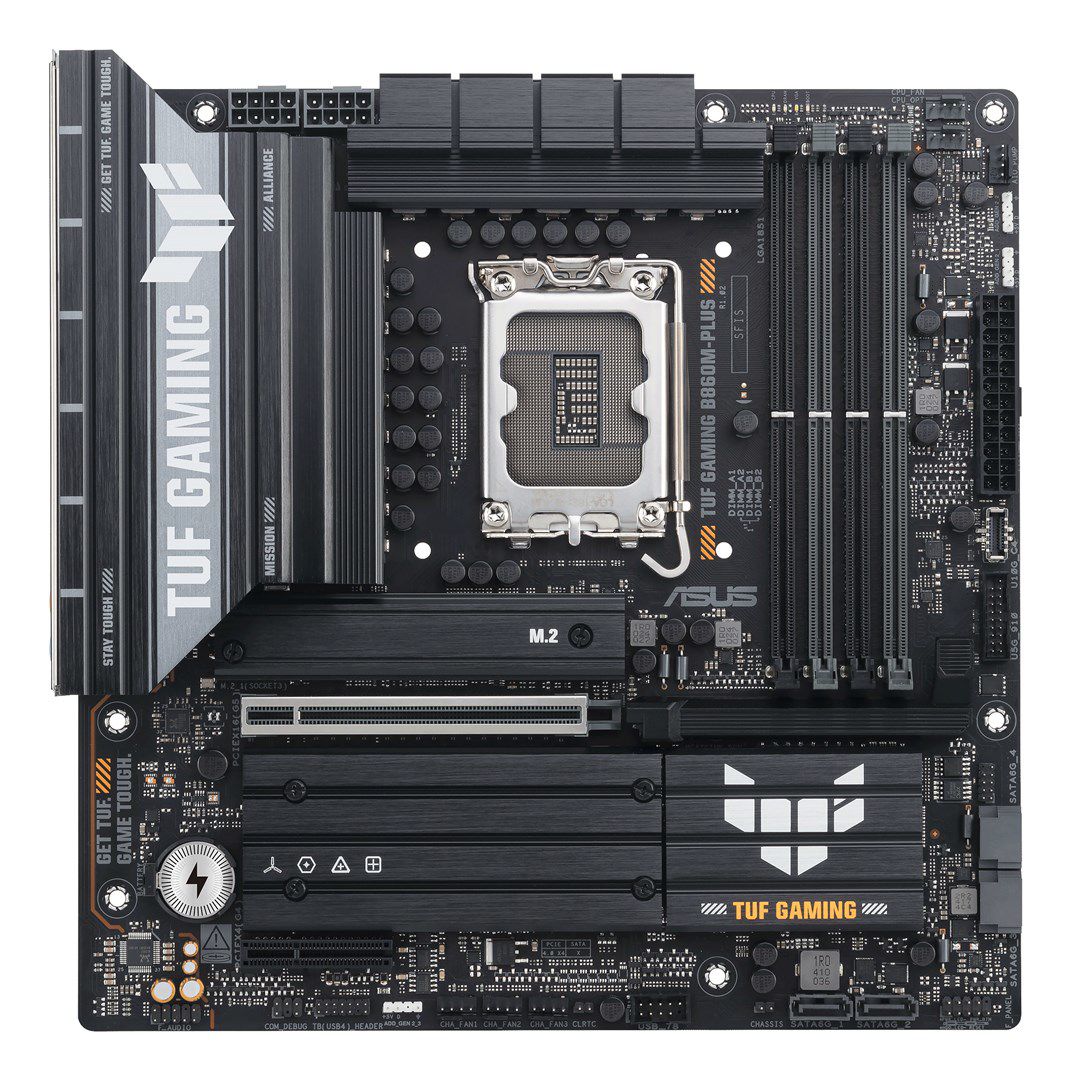

ASUS TUF GAMING B860M-PLUS Intel B860 LGA 1851 (Socket V1) micro ATX

Processor
Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel B860
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC

Memory
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Internal I/O
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
Number of chassis fan connectors: 3
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
12V power connector: Yes
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package width: 275 mm
Package weight: 1.65 kg
Package height: 67.5 mm
Package depth: 275 mm

Packaging content
Cables included: SATA
Screws included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 5, 10, 1
Number of storage drives supported: 7
Number of HDDs supported: 4

Rear panel I/O ports
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
