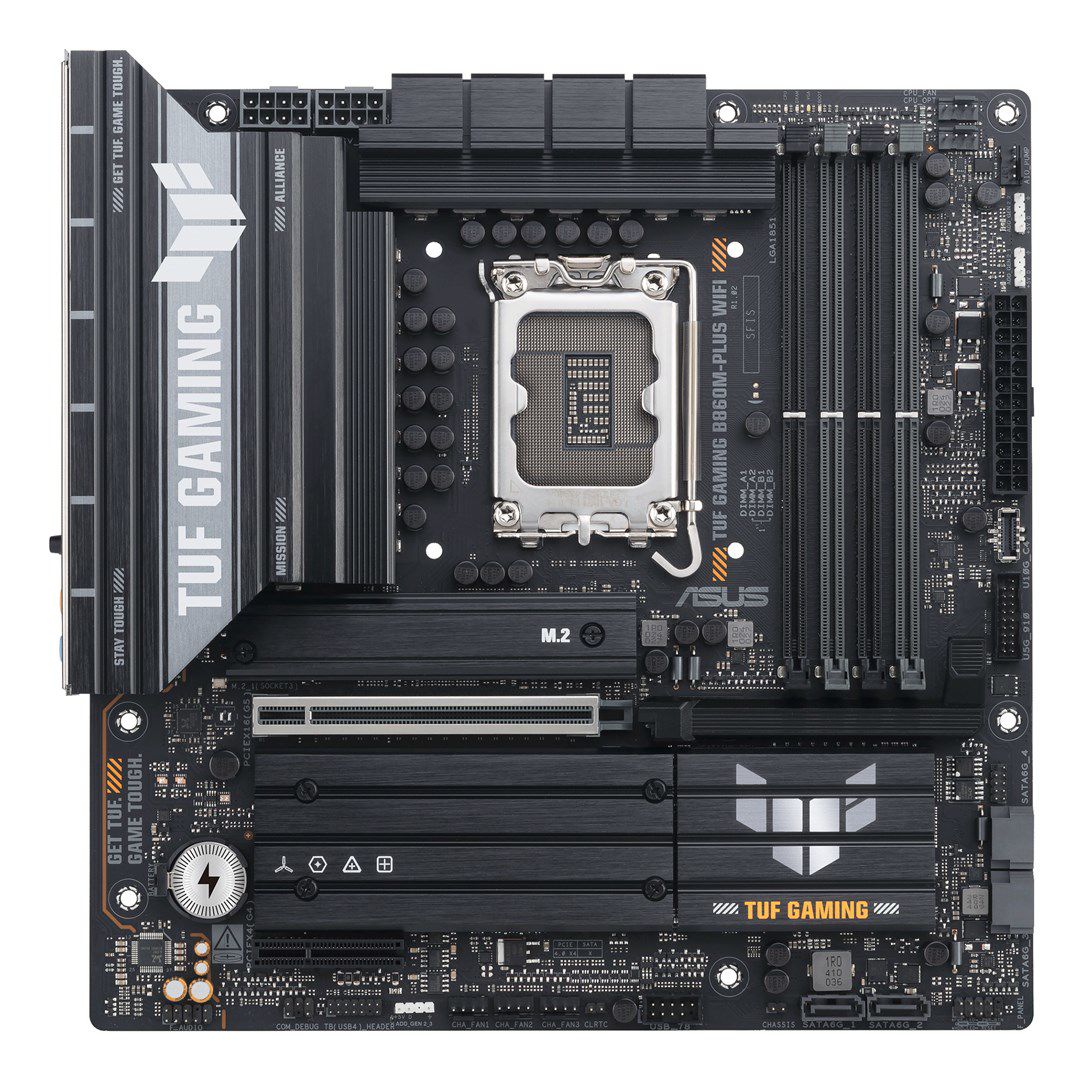

ASUS TUF GAMING B860M-PLUS WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Processor
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Product colour: Black
Component for: PC
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel B860

Memory
Maximum internal memory: 256 GB
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Unbuffered memory: Yes
ECC сompatibility: Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Bluetooth: Yes
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes

Internal I/O
12V power connector: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
Number of chassis fan connectors: 3
Thunderbolt headers: 1
Front panel audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
Chassis intrusion connector: Yes
USB 2.0 connectors: 1
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package height: 67.5 mm
Package depth: 275 mm
Package weight: 1.65 kg
Package width: 275 mm

Packaging content
Antenna included: Yes
Cables included: SATA
Screws included: Yes

Storage controllers
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 7
RAID support: Yes

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
S/PDIF out port: Yes
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
WiFi-AP antenna jack: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB 2.0 ports quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
