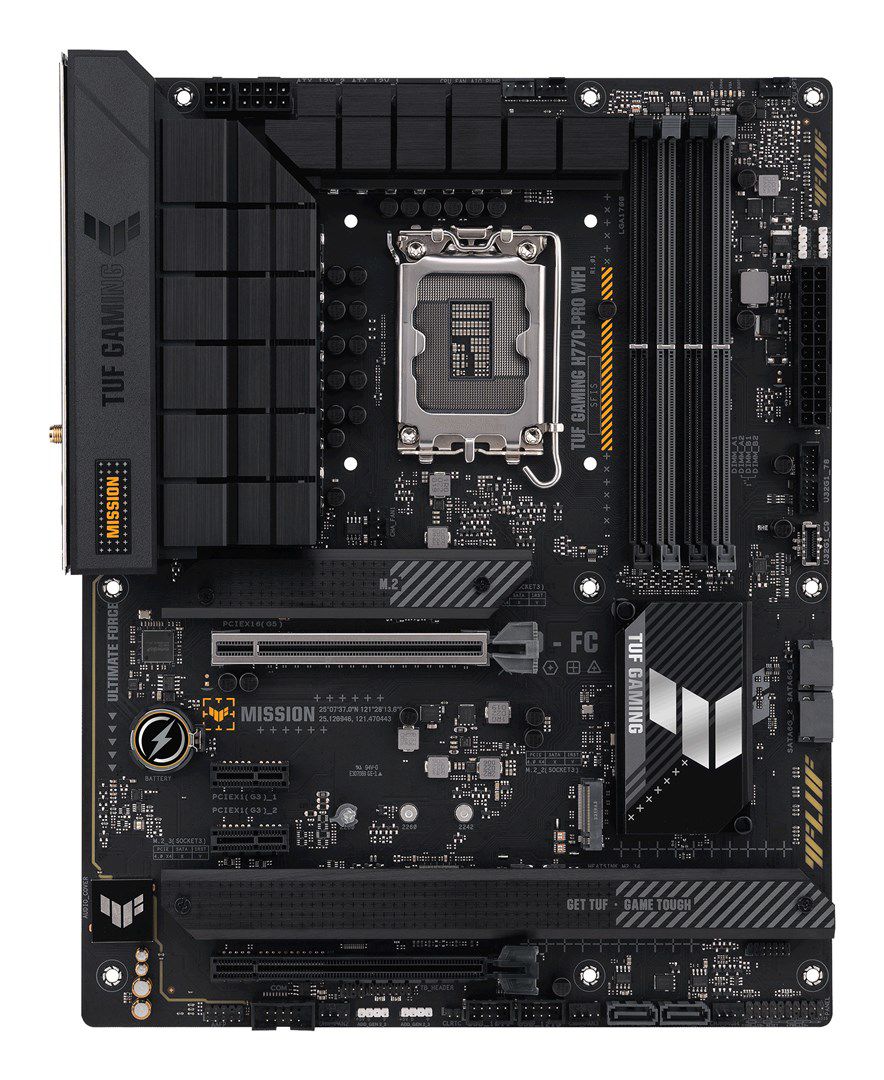

ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Maximum number of SMP processors: 1

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: Intel H770
Power source type: ATX
Audio output channels: 7.1 channels
Cooling type: Passive
Motherboard form factor: ATX

Memory
Supported memory clock speeds: 6600, 5600, 7200, 5000, 6400, 4800 MHz, 5800, 5400, 6000, 7000, 6200, 6800, 5200
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7200 MHz
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Internal I/O
Peripheral (Molex) power connectors (4-pin): 1
Front panel connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Thunderbolt headers: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
USB 2.0 connectors: 2
Number of COM connectors: 1
Front panel audio connector: Yes
12V power connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 340 mm
Package depth: 75 mm
Package weight: 1.98 kg
Package height: 270 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 5, 10, 1
Number of HDDs supported: 4
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD

Rear panel I/O ports
HDMI ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
S/PDIF out port: Yes
DisplayPort version: 1.4
HDMI version: 2.1
DisplayPorts quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Line-in: Yes
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
