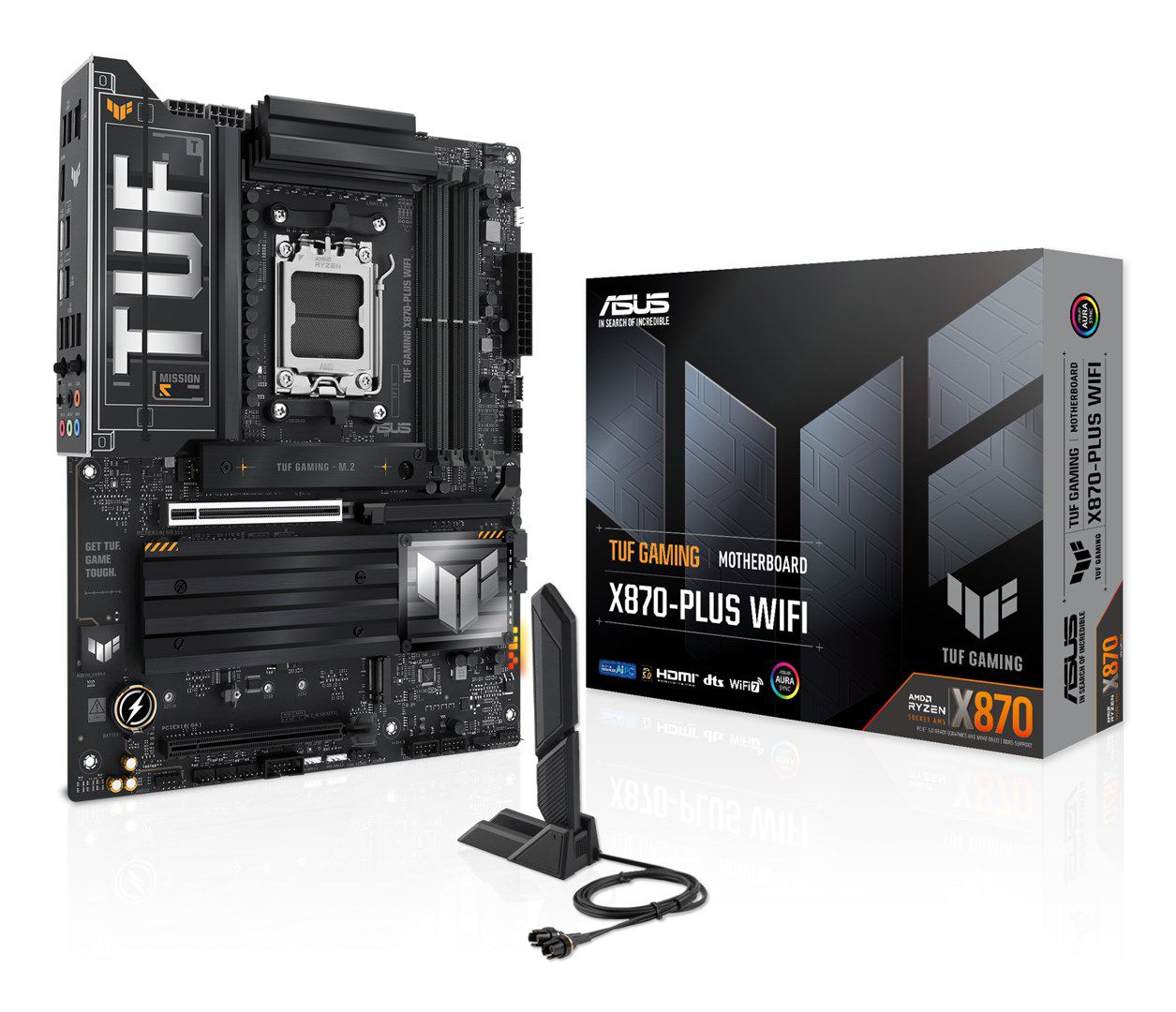

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Motherboard chipset: AMD X870
Motherboard chipset family: AMD
Motherboard form factor: ATX
Windows operating systems supported: Windows 11
Audio output channels: 7.1 channels
Audio chip: Realtek ALC1220P
Product colour: Black

Memory
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth version: 5.4
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes

Internal I/O
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
Number of chassis fan connectors: 4
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS type: UEFI AMI

Storage controllers
Number of HDDs supported: 2
RAID levels: 0, 1, 10, 5
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
USB4 Gen 3x2 ports quantity: 2
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB connector type: USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 2.0 ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
