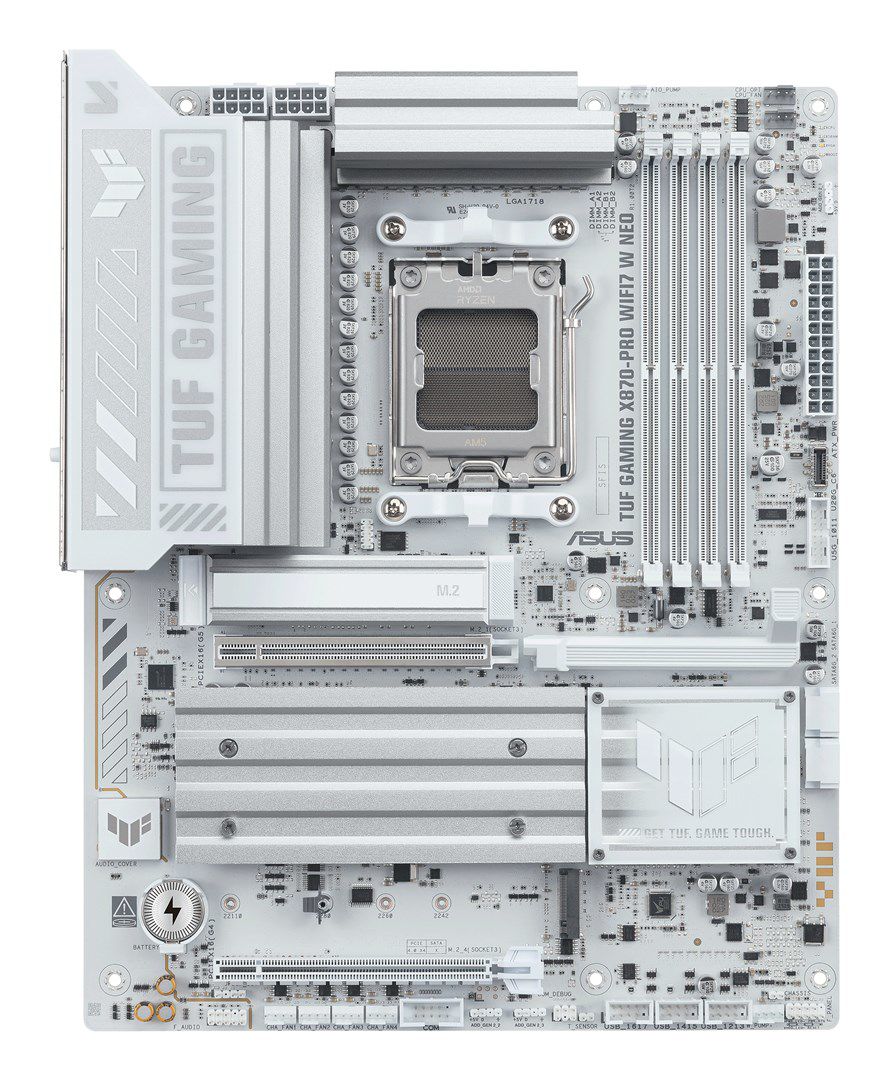

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD X870 Socket AM5 ATX

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Audio chip: Realtek ALC1220P
Motherboard chipset: AMD X870
Product colour: White
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11

Memory
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speed (max): 9600 MHz

Weight & dimensions
Depth: 244 mm
Height: 50 mm
Width: 305 mm

Network
Bluetooth: Yes
Ethernet LAN: Yes
WLAN controller model: Realtek RTL8922AE
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi standards: Wi-Fi 7 (802.11be)
Wi-Fi: Yes

Internal I/O
USB 3.2 Gen 2x2 connectors: 1
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Number of chassis fan connectors: 4
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
USB 2.0 connectors: 3
Number of SATA III connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
12V power connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 2.14 kg
Package height: 68 mm
Package width: 353 mm
Package depth: 273 mm

Storage controllers
RAID levels: 10, 0, 1, 5
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 2

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB4 Gen 3x2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1

Expansion slots
1st M.2 largest key size: 2280
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1

Other features
Weight: 1.56 kg
