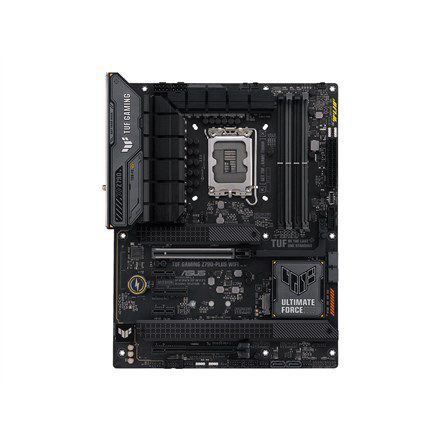

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Motherboard form factor: ATX
Product colour: Black
Audio chip: Realtek S1220A
Motherboard chipset family: Intel
Power source type: ATX
Motherboard chipset: Intel Z790
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10

Memory
ECC сompatibility: Non-ECC
Supported memory clock speeds: 6200, 5600 MHz, 7200, 6000, 6800 MHz, 4800, 6600, 7000, 5000, 6400, 5800, 5400, 5200
Supported memory clock speed (max): 7200 MHz
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
Bluetooth version: 5.3
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes

Internal I/O
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Thunderbolt headers: 1
Front panel audio connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8-pin): Yes
12V power connector: Yes
Number of chassis fan connectors: 4
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 0, 10, 5

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Microphone in: Yes
HDMI version: 2.1
WiFi-AP antenna jack: 2
Line-in: Yes

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
