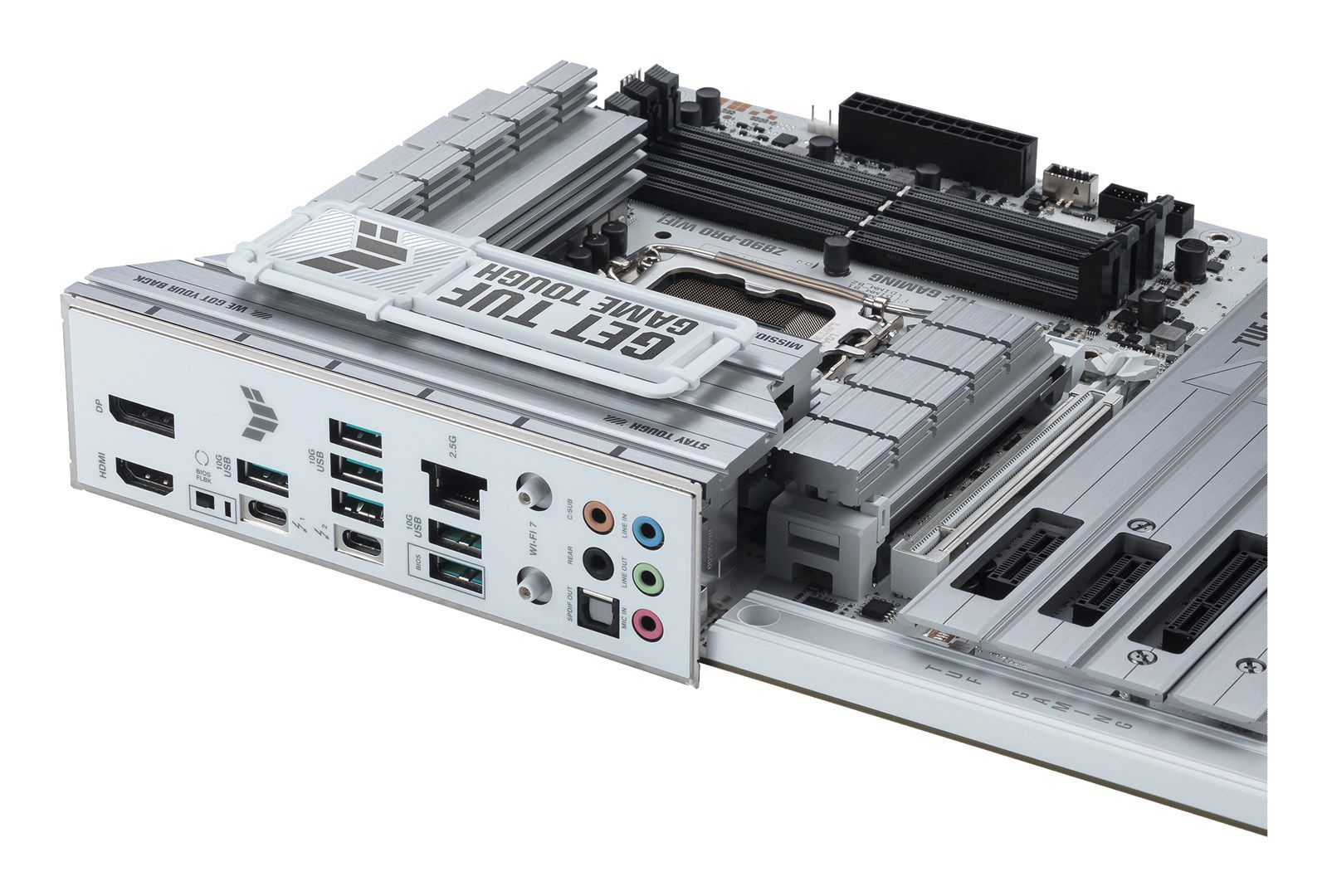

ASUS TUF GAMING Z890-PRO WIFI Intel Z890 LGA 1851 (Socket V1) ATX

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)

Graphics
Parallel processing technology support: Not supported

Features
Component for: PC
Windows operating systems supported: Windows 11
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Audio chip: Realtek ALC1220P
Motherboard chipset: Intel Z890
Motherboard chipset family: Intel

Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Maximum internal memory: 192 GB
Unbuffered memory: Yes
ECC сompatibility: Non-ECC

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth: Yes

Internal I/O
Number of COM connectors: 1
Chassis intrusion connector: Yes
12V power connector: Yes
Thunderbolt headers: 1
Front panel audio connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Number of chassis fan connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging data
Package depth: 273 mm
Package width: 353 mm
Package height: 68 mm
Package weight: 2.5 kg

Packaging content
Cables included: SATA
Screws included: Yes

Storage controllers
Number of storage drives supported: 8
Number of HDDs supported: 4
RAID levels: 1, 0, 10, 5
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

Rear panel I/O ports
WiFi-AP antenna jack: 1
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
Thunderbolt ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
