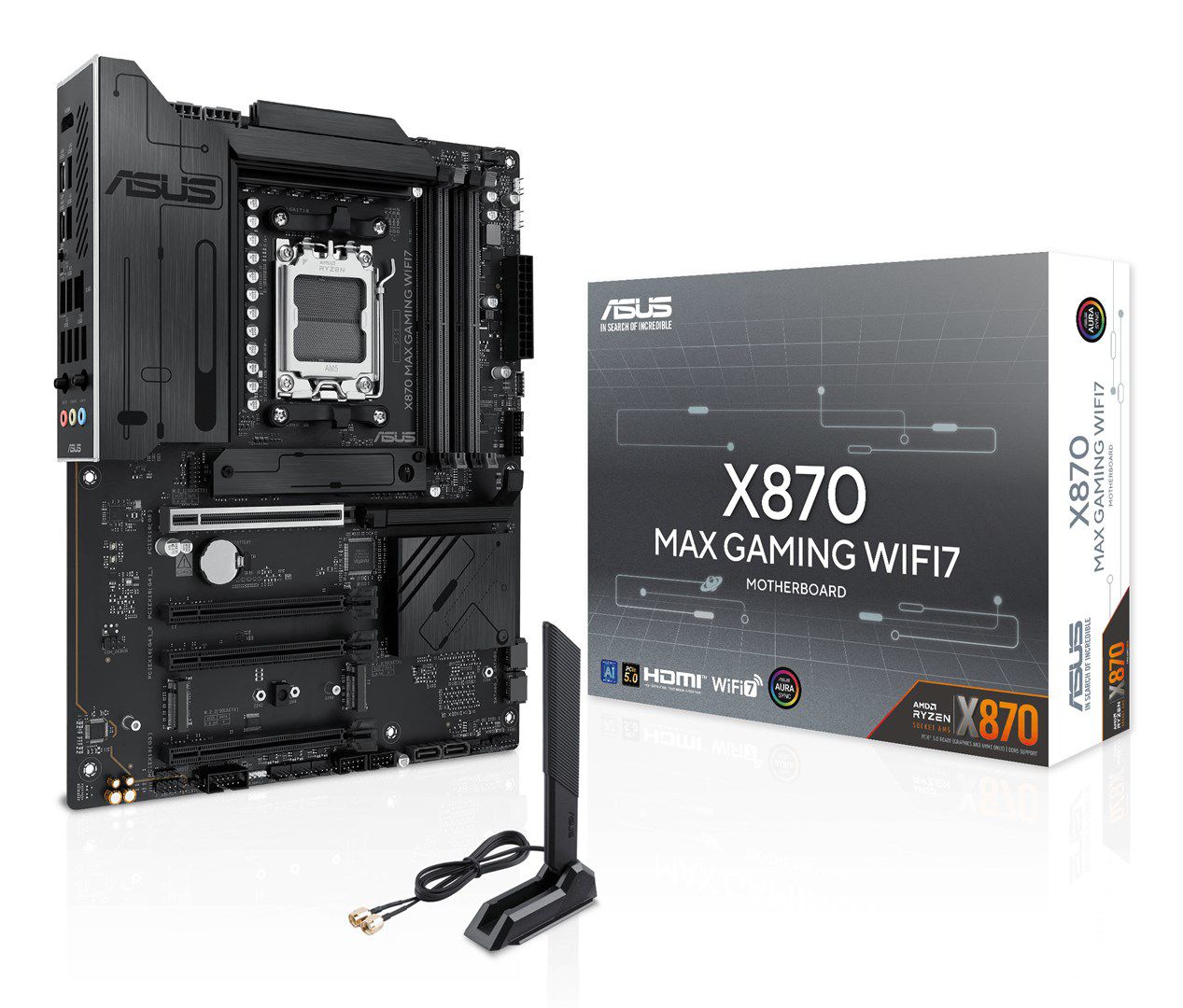

ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11
Product colour: Multicolour
Motherboard chipset: AMD X870

Memory
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 48 mm

Network
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes

Internal I/O
12V power connector: Yes
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Chassis intrusion connector: Yes
TPM connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
USB 2.0 connectors: 2
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of CPU fan connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package height: 68 mm
Package depth: 273 mm
Package width: 353 mm
Package weight: 1.95 kg

Packaging content
Antenna included: Yes

Storage controllers
RAID support: Yes
RAID levels: 1, 5, 0, 10
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 7

Rear panel I/O ports
USB connector type: USB Type-C, USB Type-A
USB4 Gen 3x2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
WiFi-AP antenna jack: 2

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1

Other features
Weight: 1.36 kg
