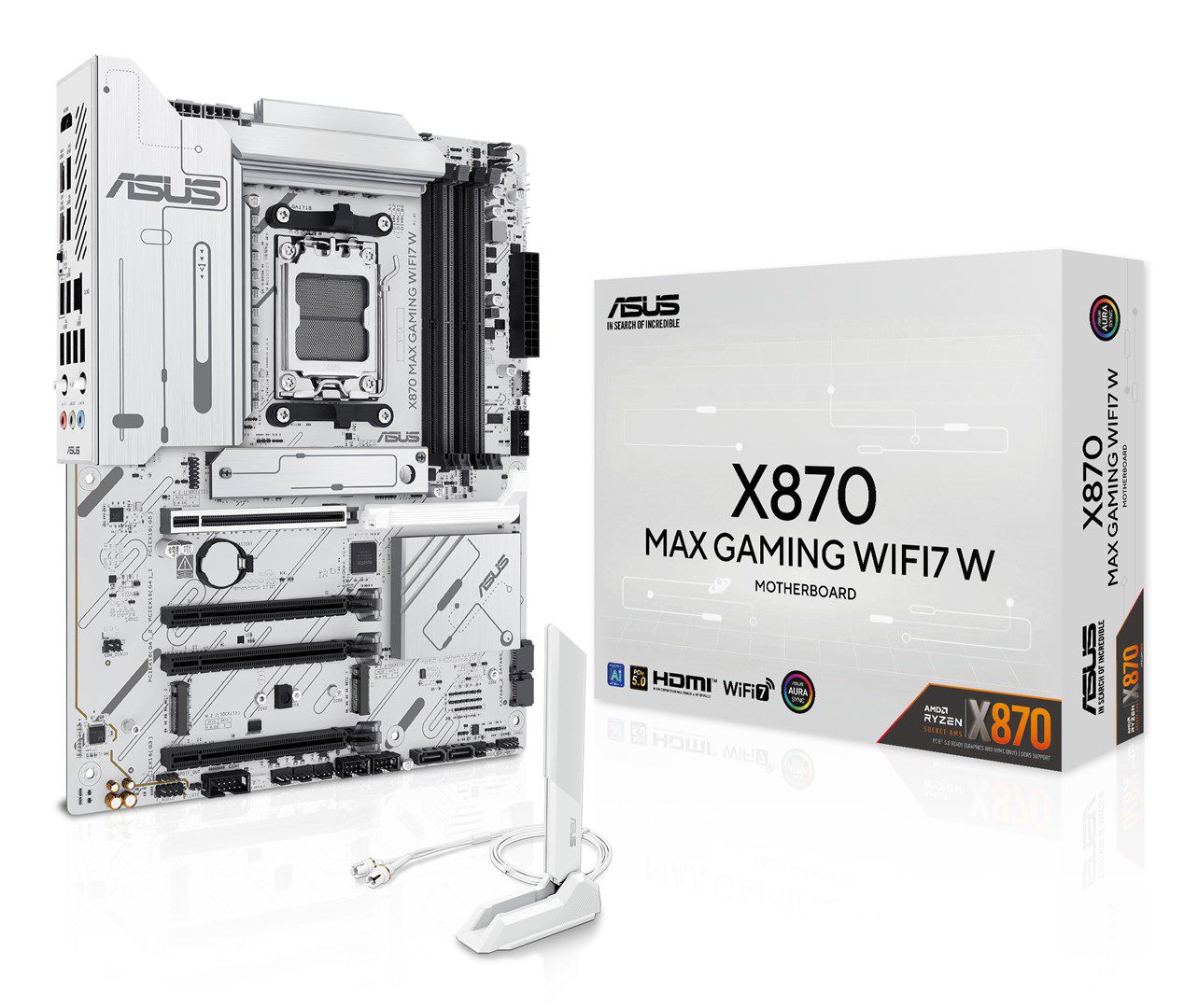

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Maximum resolution: 3840 x 2160 pixels
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Motherboard chipset: AMD X870
Windows operating systems supported: Windows 11
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Product colour: White

Memory
Supported memory clock speed (max): 8000 MHz
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Bluetooth: Yes
Wake-on-LAN ready: Yes
Bluetooth version: 5.4
Wi-Fi: Yes

Internal I/O
USB 3.2 Gen 2x2 connectors: 1
RGB LED pin header: Yes
Chassis intrusion connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
Number of EPS power connectors (8-pin): 2
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of water pump connectors: 1
Number of chassis fan connectors: 4
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
S/PDIF out connector: Yes
Number of RGB LED pin headers: 3
TPM connector: Yes
12V power connector: Yes
Number of CPU fan connectors: 2
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging content
Antenna included: Yes
Cables included: SATA
Screws included: Yes

Storage controllers
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 7
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB4 Gen 3x2 ports quantity: 2
USB connector type: USB Type-C, USB Type-A
Microphone in: Yes
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
WiFi-AP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI version: 2.1
USB 2.0 ports quantity: 4
Headphone outputs: 3

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
