Power Power consumption (typical): 10.6 W Power source: DC Input voltage: 5.3 V
Operational conditions Operating relative humidity (H-H): 0 - 80% Storage temperature (T-T): -20 - 60 °C Operating temperature (T-T): 0 - 50 °C
Weight & dimensions Depth: 76.8 mm Width: 262.3 mm Height: 44 mm Weight: 1.72 kg
Network Ethernet LAN: Yes Ethernet LAN (RJ-45) ports: 1
System requirements Windows operating systems supported: Yes Other operating systems supported: Yes Mac operating systems supported: Yes Linux operating systems supported: Yes
Performance Video bandwidth: 60 Hz Scan interval: 1, 99 s Maximum resolution: 2560 x 1600 pixels
Packaging data Package height: 210 mm Package depth: 325 mm Package weight: 2 kg Package width: 98 mm

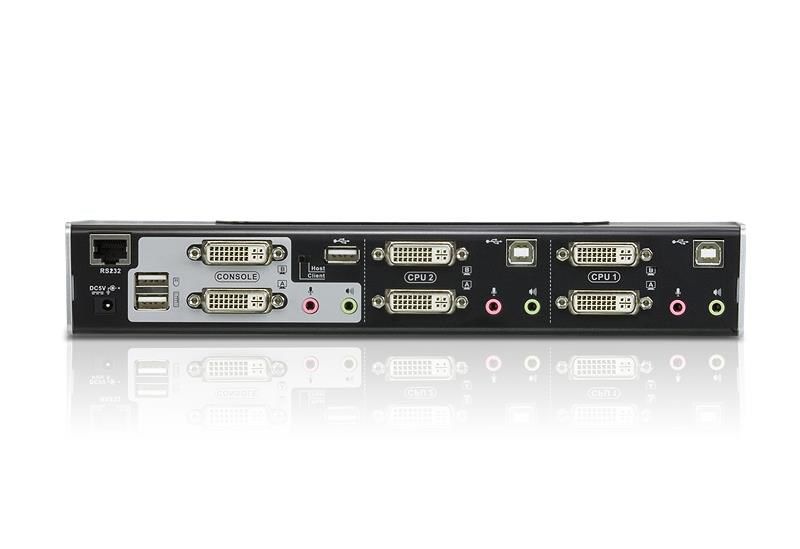

Ports & interfaces USB 2.0 Type-A hub ports quantity: 2 Audio connections: Yes Keyboard port type: USB Console USB ports quantity: 2 Console ports: 3.5mm headphone, 3.5mm mic, USB A, DVI-I Number of computers controlled: 2 DC-in jack: Yes Mouse port type: USB Video port type: DVI-I Headphone outputs: 2 DVI-I ports quantity: 6 Number of microphone inputs: 1
Logistics data Master (outer) case height: 232 mm Harmonized System (HS) code: 85176200 Master (outer) case gross weight: 10.9 kg Master (outer) case length: 512 mm Master (outer) case width: 342 mm Master (outer) case net weight: 8.6 kg Products per master (outer) case: 5 pc(s)
