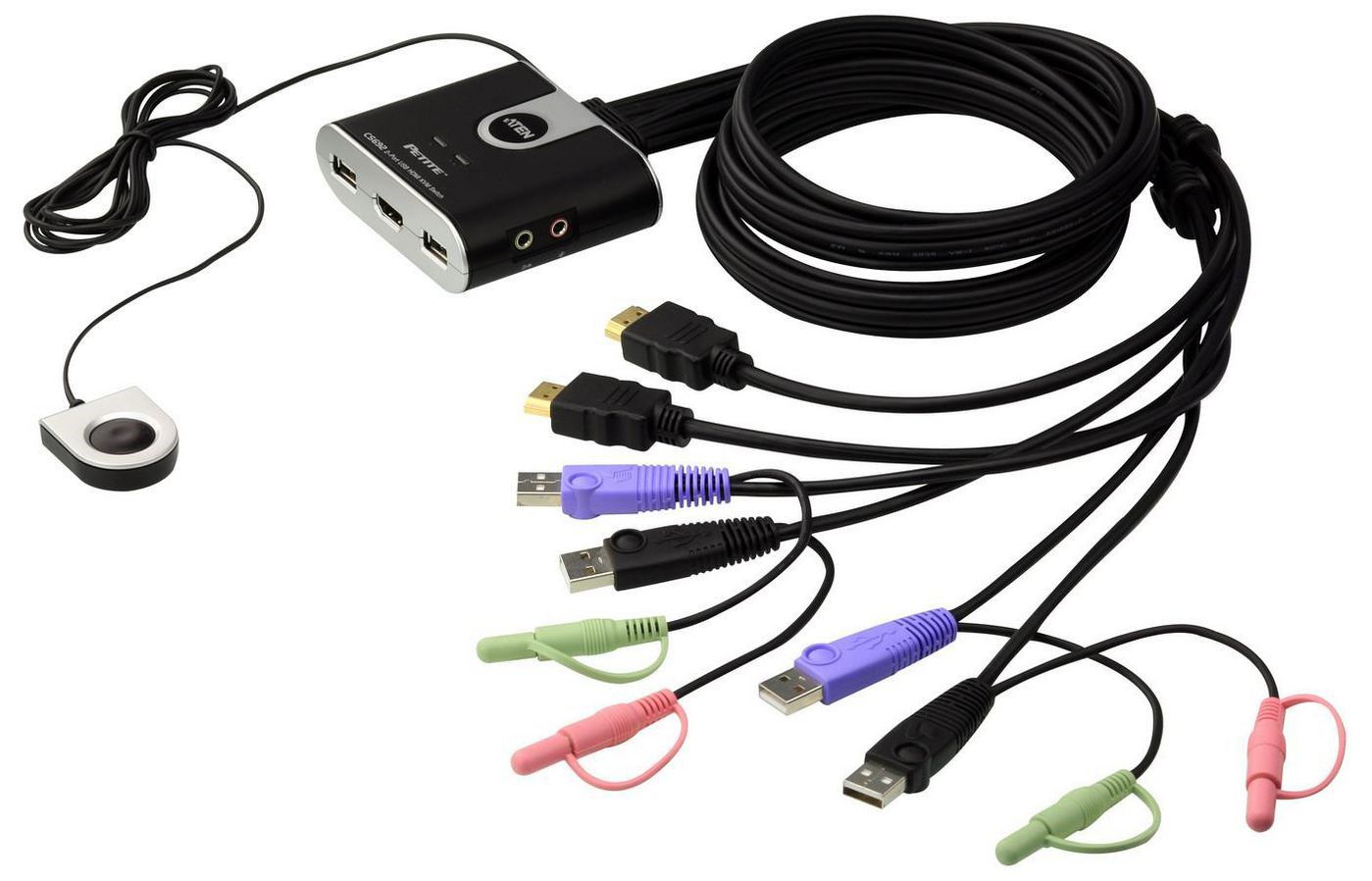

ATEN 2-Port USB HDMI KVM Switch with Audio

Design
Rack mounting: No
Hot keys: Yes
Push button: Yes
Product colour: Black
LED indicators: Yes
Housing material: Plastic

Power
Power source: DC
Input voltage: 5 V
Power consumption (typical): 0.72 W

Operational conditions
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions
Width: 82.4 mm
Depth: 66.5 mm
Height: 25.2 mm
Weight: 409 g

Performance
Maximum resolution: 1920 x 1200 pixels
Scan interval: 3, 20 s, 5, 10
HD type: WUXGA
Video bandwidth: 60 Hz

Packaging data
Package width: 70 mm
Package weight: 550 g
Package height: 235 mm
Package depth: 163 mm

Packaging content
Manual: Yes
Quick installation guide: Yes

Display
Built-in display: No

Ports & interfaces
USB connector type: USB Type-A
HDMI ports quantity: 2
Console ports: USB A, 3.5mm headphone, 3.5mm mic, HDMI
Mouse port type: USB
Console USB ports quantity: 2
Keyboard port type: USB
Headphone outputs: 3
Video port type: HDMI
Audio connections: Yes
Number of microphone inputs: 3
Number of computers controlled: 2
USB 2.0 Type-A hub ports quantity: 4

Logistics data
Harmonized System (HS) code: 85176200
Master (outer) case width: 395 mm
Master (outer) case net weight: 4.09 kg
Products per master (outer) case: 10 pc(s)
Master (outer) case length: 405 mm
Master (outer) case gross weight: 6.13 kg
Master (outer) case height: 182 mm
