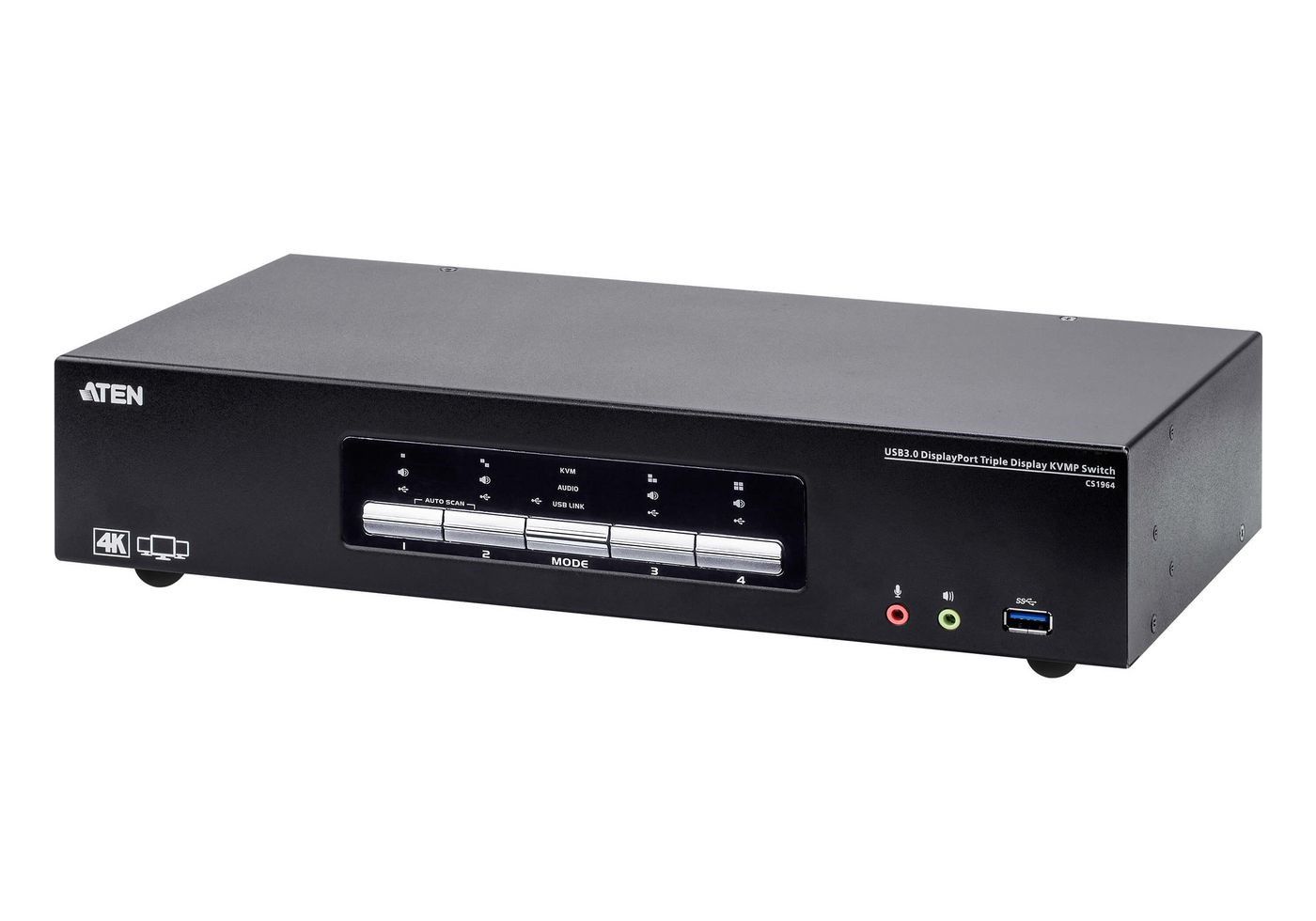

ATEN 4P USB3.0 4K DP TRIPLE VIEW KVMP SW

Design
Hot keys: Yes
Housing material: Metal
Push button: Yes
Product colour: Black
LED indicators: Yes

Power
Power consumption (typical): 15.49 W
Power source: DC
Input voltage: 12 V

Operational conditions
Storage relative humidity (H-H): 0 - 80%
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 0 - 80%
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions
Width: 335 mm
Depth: 156 mm
Height: 65.5 mm
Weight: 3.57 kg

System requirements
Windows operating systems supported: Yes

Performance
Scan interval: 99 s, 5, 1
Video bandwidth: 60 Hz
HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels

Packaging data
Package weight: 4.03 kg
Package height: 233 mm
Package depth: 540 mm
Package width: 131 mm

Packaging content
Quick installation guide: Yes
Manual: Yes

Display
Built-in display: No

Ports & interfaces
Number of microphone inputs: 6
Console ports: DisplayPort, 3.5mm headphone, 3.5mm mic, USB A, HDMI
Mouse port type: USB
Keyboard port type: USB
Console USB ports quantity: 2
Video port type: DisplayPort
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Audio connections: Yes
Number of computers controlled: 4
DisplayPorts quantity: 12
DC-in jack: Yes
Headphone outputs: 6
USB hub: Yes
USB connector type: USB Type-B, USB Type-A

Logistics data
Harmonized System (HS) code: 85176200
Master (outer) case net weight: 10.7 kg
Master (outer) case gross weight: 13 kg
Master (outer) case width: 420 mm
Master (outer) case length: 555 mm
Master (outer) case height: 258 mm
Products per master (outer) case: 3 pc(s)
