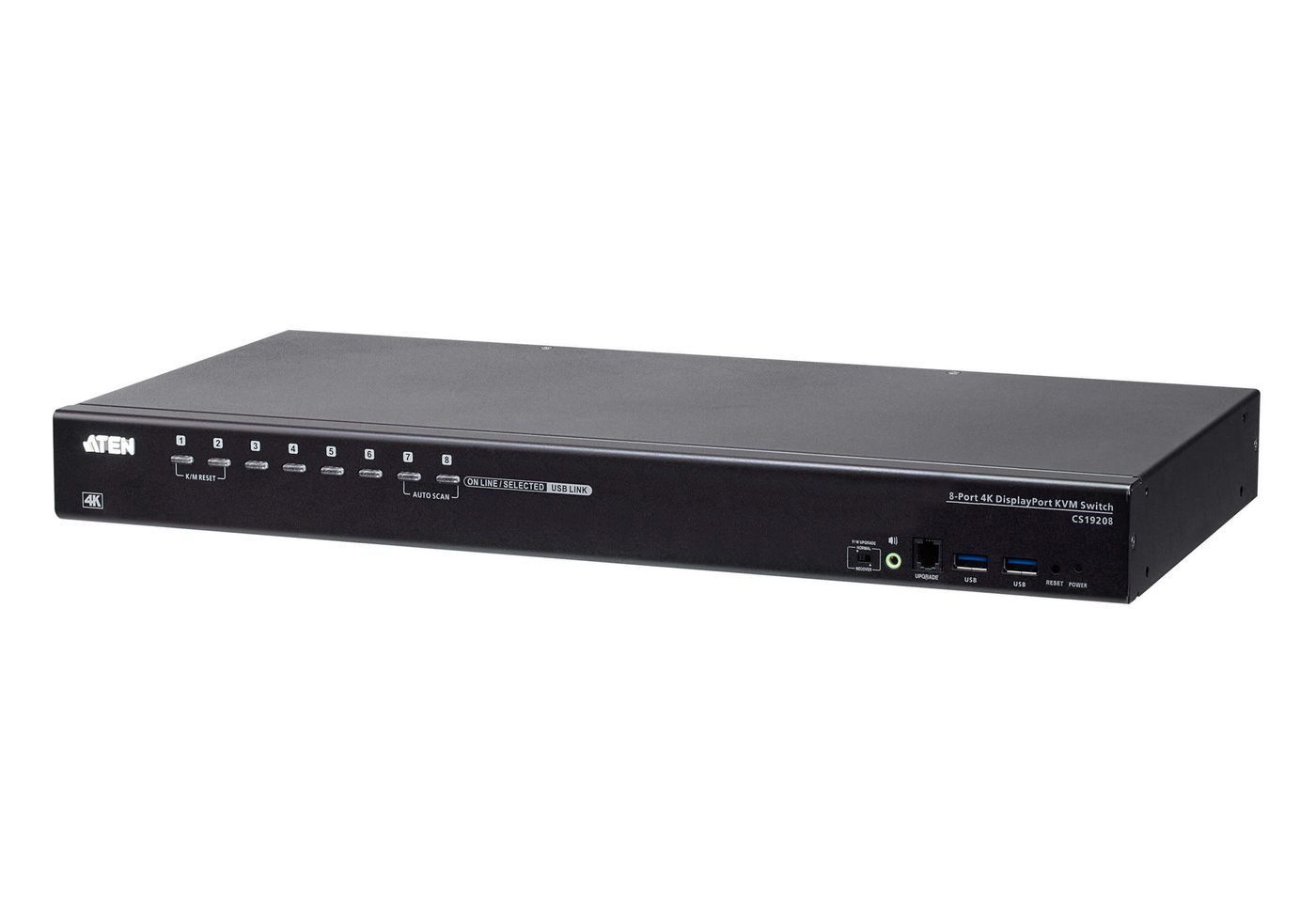

ATEN 8-Port USB 3.0 4K DisplayPort KVM Switch

Design
Push button: Yes
Product colour: Black
LED indicators: Yes
Hot keys: Yes
Housing material: Metal

Power
Input voltage: 12 V
Power consumption (typical): 18.44 W

Operational conditions
Storage temperature (T-T): -20 - 60 °C
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 0 - 80%
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions
Weight: 3.75 kg
Depth: 214.3 mm
Height: 44 mm
Width: 432.4 mm

Performance
Scan interval: 255 s, 1, 5
Video bandwidth: 60 Hz
HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels

Packaging data
Package depth: 499 mm
Package weight: 4.83 kg
Package width: 133 mm
Package height: 324 mm

Packaging content
Manual: Yes
Quick installation guide: Yes

Display
Built-in display: No

Ports & interfaces
Video port type: DisplayPort
Mouse port type: USB
Console USB ports quantity: 2
Console ports: DisplayPort, USB A, HDMI, 3.5mm headphone
Number of computers controlled: 8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 8
Audio connections: Yes
Number of microphone inputs: 1
Keyboard port type: USB
DisplayPorts quantity: 8
DC-in jack: Yes
USB connector type: USB Type-A, USB Type-B
Headphone outputs: 9
USB hub: Yes

Logistics data
Master (outer) case gross weight: 15.6 kg
Master (outer) case net weight: 11.2 kg
Master (outer) case width: 427 mm
Master (outer) case length: 519 mm
Master (outer) case height: 348 mm
Harmonized System (HS) code: 85176200
Products per master (outer) case: 3 pc(s)
