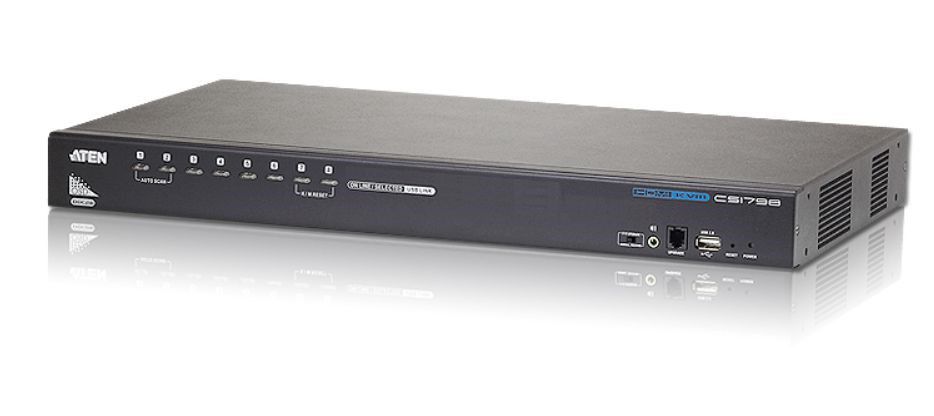

ATEN 8-Port USB - HDMI KVM Switch with USB Peripheral port

Design
LED indicators: Yes
Product colour: Black
Housing material: Metal

Power
Input voltage: 5 V
Power source: DC
Power consumption (typical): 8.56 W

Operational conditions
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions
Width: 432.4 mm
Weight: 4.63 kg
Depth: 257.2 mm
Height: 440 mm

System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Performance
Video bandwidth: 60 Hz
HD type: WUXGA
Maximum resolution: 1920 x 1200 pixels
Scan interval: 255 s, 5, 1

Packaging data
Package weight: 5.22 kg
Package height: 324 mm
Package depth: 499 mm
Package width: 133 mm

Packaging content
Manual: Yes
Quick installation guide: Yes

Display
Built-in display: No

Ports & interfaces
Keyboard port type: USB
Console ports: USB A, 3.5mm headphone, 3.5mm mic, HDMI
DC-in jack: Yes
Mouse port type: USB
USB 2.0 Type-B ports quantity: 8
Number of computers controlled: 8
HDMI ports quantity: 8
Console USB ports quantity: 2
Number of microphone inputs: 1
Headphone outputs: 9
USB connector type: USB Type-B, USB Type-A
Audio connections: Yes
USB hub: Yes
Video port type: HDMI
USB 2.0 Type-A hub ports quantity: 2

Logistics data
Harmonized System (HS) code: 85176200
Master (outer) case net weight: 13.9 kg
Master (outer) case length: 519 mm
Master (outer) case height: 348 mm
Master (outer) case width: 427 mm
Master (outer) case gross weight: 16.7 kg
Products per master (outer) case: 3 pc(s)
