Design
IK code: IK10
International Protection (IP) code: IP66, IP67
Product colour: White, Black
Form factor: Bulb
Mounting type: Ceiling/wall
Power
Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 7.9 W
Security
Security algorithms: HTTPS
IP address filtering: Yes
Password protection: Yes
Operational conditions
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 50 °C
Weight & dimensions
Height: 88 mm
Depth: 208 mm
Width: 133 mm
Weight: 975 g
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Quality of Service (QoS) support: Yes
Bluetooth: No
Networking standards: IEEE 802.1x, IEEE 802.3at
Live view: Yes
Performance
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Connectivity technology: Wired
Placement supported: Indoor & outdoor

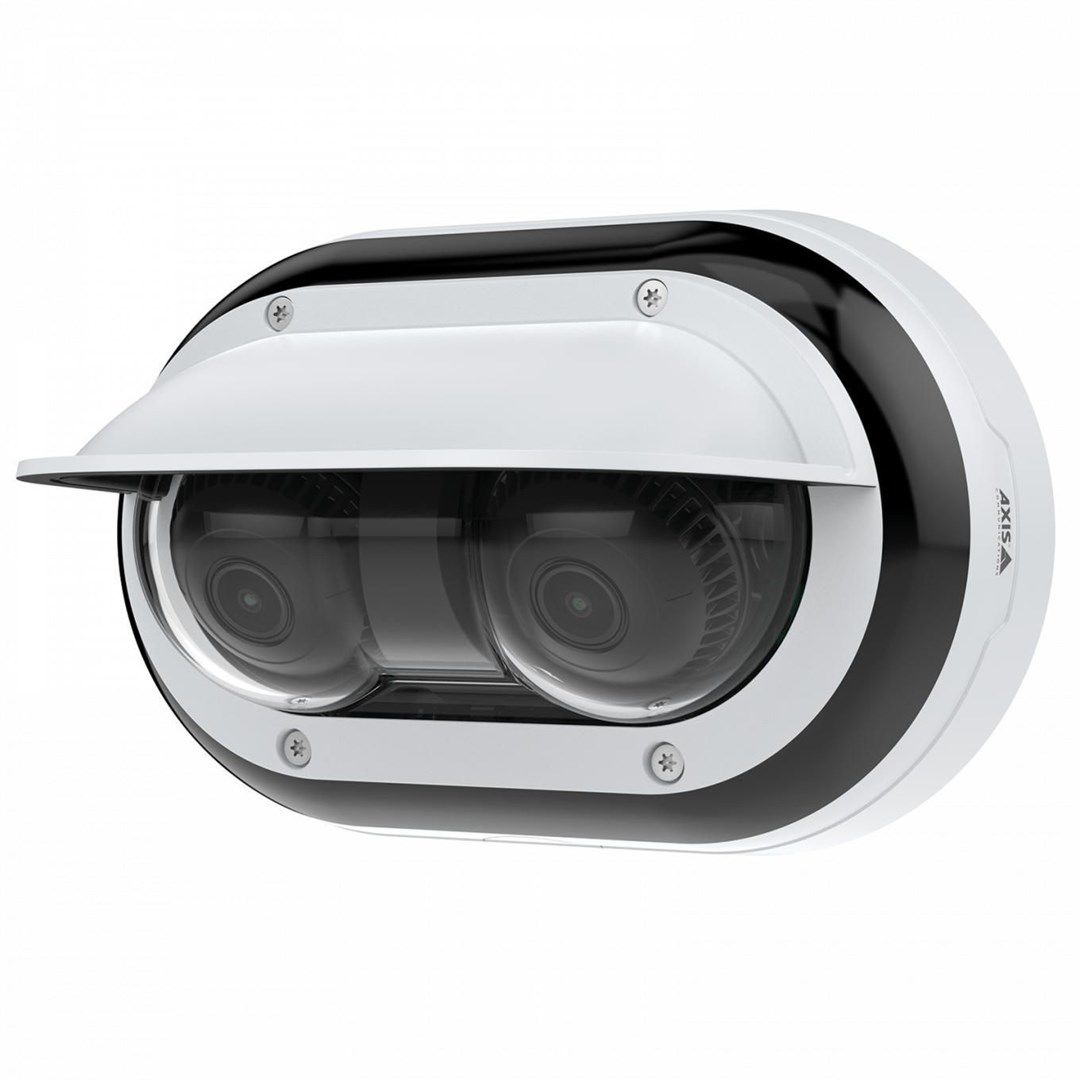

Type: IP security camera
Packaging content
Number of cameras: 2
Audio
Audio system: 2-way
Audio codecs: 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Built-in HDD: No
Ports & interfaces
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Angle of rotation: 170°
Camera shutter speed: 1/33500 - 1/5 s
Pan range: -100 - 110°
Lens viewing angle, horizontal: 98 - 36°
Lens viewing angle, diagonal: 133 - 46°
Lens viewing angle, vertical: 69 - 27°
Tilt angle range: -75 - 75°
Other features
Doesn't contain: BFR, PVC
Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Total megapixels: 2.5 MP
Video compression formats: H.265, H.264, M-JPEG
Maximum resolution: 2592 x 1944 pixels
Supported graphics resolutions: 2560 x 1440, 2592 x 1944
Video streaming: Yes
Frame rate: 30 fps
Image quality adjustment: Contrast, Sharpness, Brightness
Privacy masking: Yes
Night vision
LED type: IR
Night vision: Yes
Lens system
Zoom capability: Yes
Focal length range: 3.26 - 8.12 mm
Number of lenses: 1
Auto focus: Yes
Panoramic camera
Minimum illumination (panoramic camera): 0.19 lx
Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
Focal length range (panoramic camera): 3.26 - 8.12 mm
Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7")
Sensor type (panoramic camera): CMOS
