Design
Form factor: Box
Product colour: White
International Protection (IP) code: IP40
Mounting type: Ceiling/wall
Housing material: Aluminium, Plastic
LED indicators: Yes
Power
Power source type: PoE
Power consumption (max): 12.95 W
Power consumption (typical): 5.4 W
Security
Active tampering alarm: Yes
Alarm output channels: 1
Alarm input channels: 1
Video motion detection: Yes
HTTPS encryption: Yes
Network access storage (NAS): Yes
Operational conditions
Operating relative humidity (H-H): 10 - 85%
Operating temperature (T-T): 0 - 35 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 65 °C
Management features
Cloud-managed: Yes
Weight & dimensions
Depth: 93 mm
Width: 60 mm
Weight: 153 g
Height: 105 mm
Network
Bluetooth: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.3at, IEEE 802.1ar, IEEE 802.3af, IEEE 802.1x
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Performance
Dynamic range: 120 dB
People counting function: Yes
Day/night mode: Yes
Placement supported: Indoor
Wide Dynamic Range (WDR): Yes
Processor model: Ambarella CV25
Built-in processor: Yes

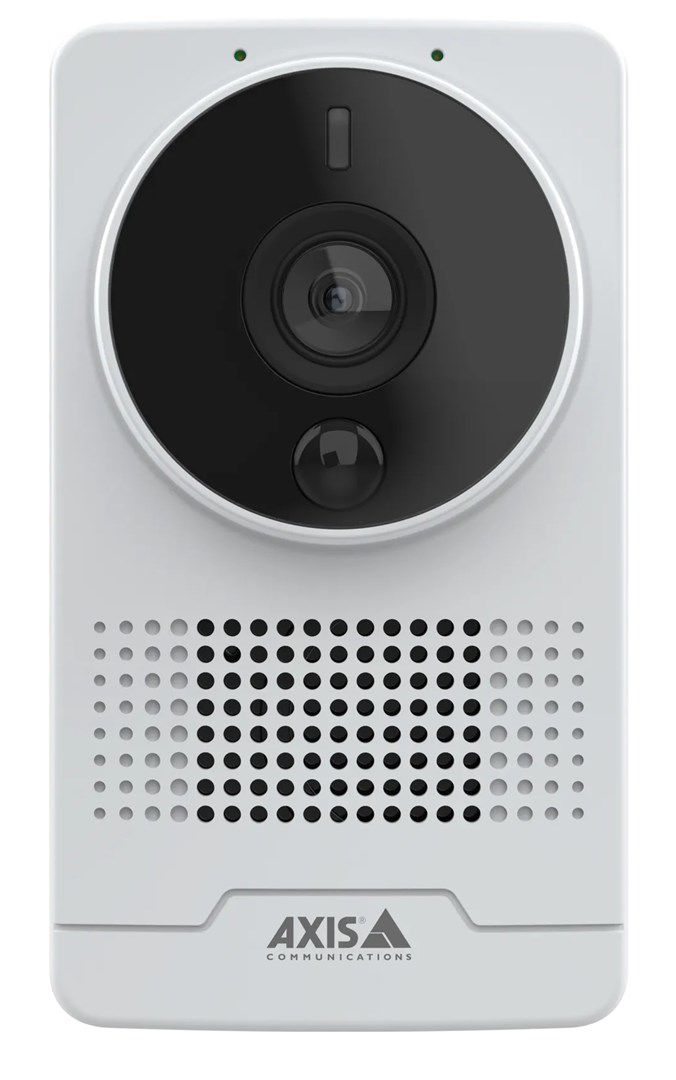

Type: IP security camera
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Packaging content
Mounting kit: Yes
Number of cameras: 1
Manual: Yes
Audio
Built-in microphone: Yes
Built-in speaker(s): Yes
Audio system: 2-way
Audio formats supported: PCM, OPUS, ADPCM, AAC-LC, LPCM, G.711
Storage
RAM capacity: 2048 MB
Flash memory: 1024 MB
Card reader integrated: Yes
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Ports & interfaces
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Camera
Lens viewing angle, vertical: 55°
Camera pixel size: 2.8 µm
Camera shutter speed: 1/19000 - 1/5 s
Minimum illumination: 0.18 lx
Lens viewing angle, horizontal: 103°
Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS
Progressive scan: Yes
Video
Video recording: Yes
Video compression formats: H.264M, H.265, H.264H
Image quality adjustment: Sharpness, Saturation, White balance, Brightness, Contrast
Total megapixels: 2 MP
Maximum resolution: 1920 x 1080 pixels
Video streaming: Yes
Frame rate: 30 fps
Night vision
Infra-red wavelength: 850 nm
Night vision distance: 18 m
Night vision: Yes
LED type: IR
Lens system
Maximum aperture number: 2
Detect distance: 42 m
Zoom capability: Yes
Observe distance: 16 m
Identify distance: 4 m
Recognize distance: 8 m
Fixed focal length: 3.16 mm
