Design
LED indicators: Yes
Form factor: Covert
Product colour: Black, White
Housing material: Plastic, Steel
International Protection (IP) code: IPX3
Mounting type: Ceiling
Power
Power source type: PoE
Power consumption (max): 4.1 W
Power consumption (typical): 3.4 W
Security
Security algorithms: HTTPS, 802.1x RADIUS, PEAP, TLS, EAP-TLS
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Vehicle detection
Alert notification type: E-mail
Human and vehicle targets classification: Yes
Pixel counter: Yes
Operational conditions
Operating temperature (T-T): -20 - 45 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%
Management features
Behavior analysis: Line crossing detection, Scene change detection
Weight & dimensions
Weight: 75 g
Network
Networking standards: IEEE 802.3af, IEEE 802.3at
Bluetooth: No
Streaming method: Multicast
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Performance

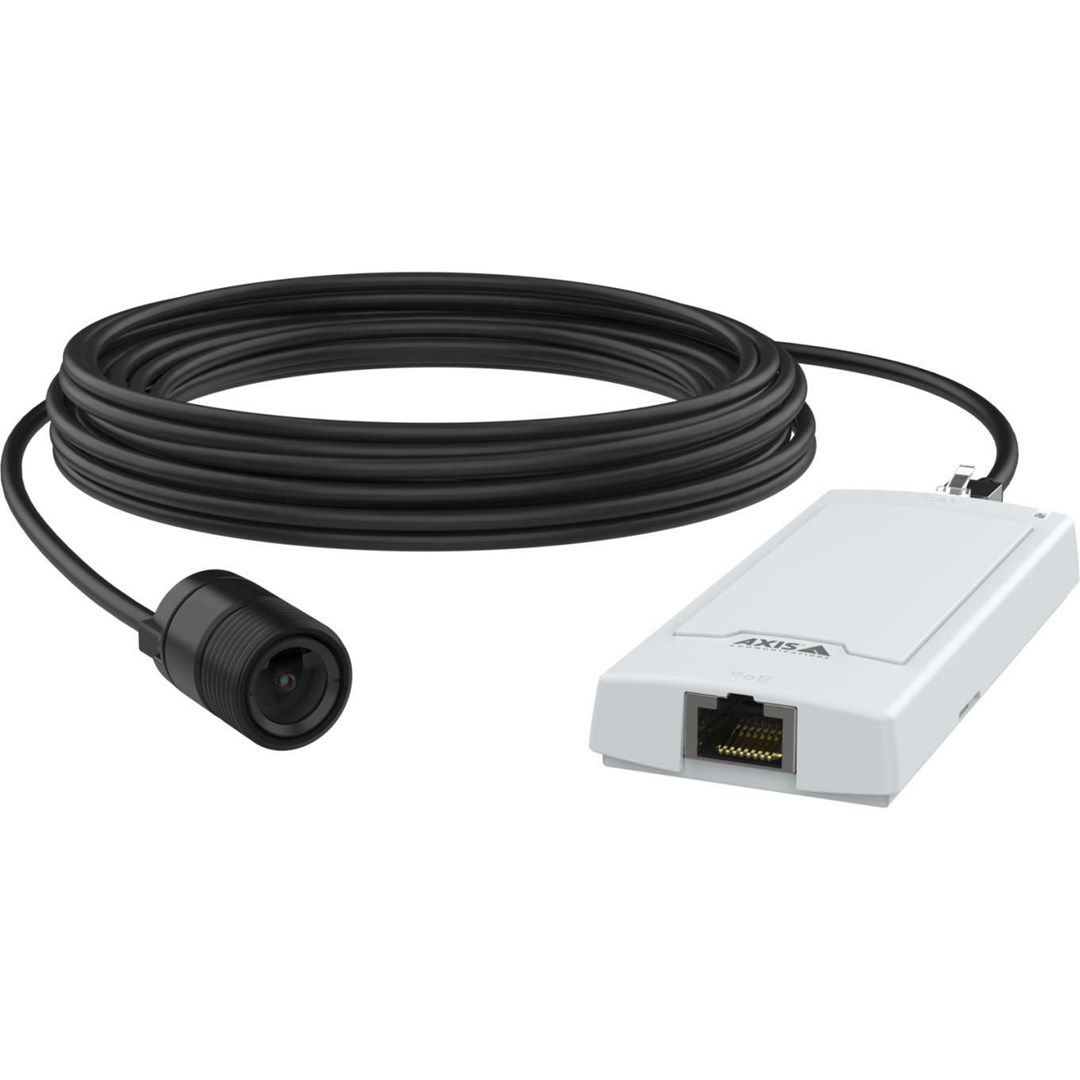

Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor
Packaging content
Manual: Yes
Number of cameras: 1
Audio
Signal-to-Noise Ratio (SNR): 55 dB
Storage
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Flash memory: 512 MB
Card reader integrated: Yes
Internal memory: 1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Lens viewing angle, horizontal: 111°
Lens viewing angle, vertical: 61°
Minimum illumination: 0.2 lx
Camera shutter speed: 1/6500 - 1/5 s
Other features
Doesn't contain: PVC
Image sensor
Sensor type: CMOS
Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Video
Supported graphics resolutions: 1024 x 768 (XGA), 640 x 360, 480 x 360, 1920 x 1080 (HD 1080), 1024 x 640
Maximum resolution: 1920 x 1080 pixels
Video formats supported: M-JPEG, AVC, H.264, HEVC, MPEG4
Bit rate control: Variable Bit Rate (VBR)
Privacy masking: Yes
Image quality adjustment: Contrast, Brightness, Sharpness, Saturation
Frame rate: 30 fps
Video streaming: Yes
Flip & mirror: Yes
Text caption overlay: Yes
Lens system
Fixed focal length: 2.8 mm
Closest focusing distance: 0.2 m
Number of lenses: 1
Maximum aperture number: 2
Sustainability
Compliance certificates: RoHS
