Design
International Protection (IP) code: IP66, IP67
Product colour: Silver, Black
Mounting type: Ceiling/wall
Housing material: Polycarbonate (PC), Aluminium, Plastic
IK code: IK10
Power
Power source type: PoE
Power consumption (typical): 10.2 W
Power consumption (max): 18.8 W
Security
Security algorithms: PEAP, TLS, EAP-TLS, HTTPS, MSCHAPv2
Privacy protection: Yes
Operational conditions
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Operating temperature (T-T): -30 - 50 °C
Weight & dimensions
Width: 208 mm
Depth: 127 mm
Weight: 975 g
Height: 133 mm
Network
Wi-Fi: No
Bluetooth: No
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Performance

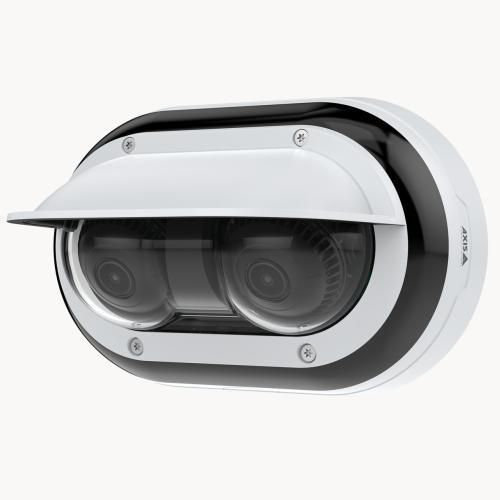

Type: IP security camera
Day/night mode: Yes
Processor model: ARTPEC-8
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Remote viewing: Yes
Built-in processor: Yes
Wide Dynamic Range (WDR): Yes
Packaging content
Number of cameras: 1
Audio
Audio system: 2-way
Audio formats supported: ADPCM, AAC-LC, LPCM, G.726, PCM, G.711
Signal-to-Noise Ratio (SNR): 55 dB
Storage
RAM capacity: 4096 MB
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Flash memory: 8192 MB
Ports & interfaces
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Camera
Camera pan control: Yes
Tilt angle range: -75 - 75°
Angle of rotation: 240°
Camera tilt control: Yes
Camera shutter type: Electronic
Minimum illumination: 0 lx
Camera shutter speed: 1/16000 s
Pan range: -110 - 110°
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Number of sensors: 2
Sensor type: CMOS
Video
Maximum resolution: 3840 x 2160 pixels
Video compression formats: H.265, H.264, M-JPEG
Noise reduction: Yes
Frame rate: 30 fps
Image quality adjustment: Contrast, Mirror, Saturation, Sharpness, Brightness
Total megapixels: 8 MP
Video streaming: Yes
Gain control type: Auto
Noise reduction technology: 2D noise reduction, 3D noise reduction
Night vision
LED type: IR
Infra-red wavelength: 850 nm
Night vision: Yes
Lens system
Recognize distance (wide): 17.6 m
Observe distance (wide): 34.8 m
Detect distance (wide): 87.8 m
Maximum aperture number: 1.9
Detect distance (tele): 220.1 m
Identify distance (wide): 8.8 m
Focal length range: 3.2 - 8.1 mm
Observe distance (tele): 87.3 m
Identify distance (tele): 22 m
Recognize distance (tele): 44 m
Auto focus: Yes
Number of lenses: 2
Zoom capability: Yes
Minimum aperture number: 3.2
Closest focusing distance: 0.5 m
Sustainability
Compliance certificates: CE, Federal Communications Commission (FCC), KC, Trade Agreements Act (TAA), VCCI, UKCA, EAC, cUL, UL, RCM
Panoramic camera
Sensor type (panoramic camera): CMOS
