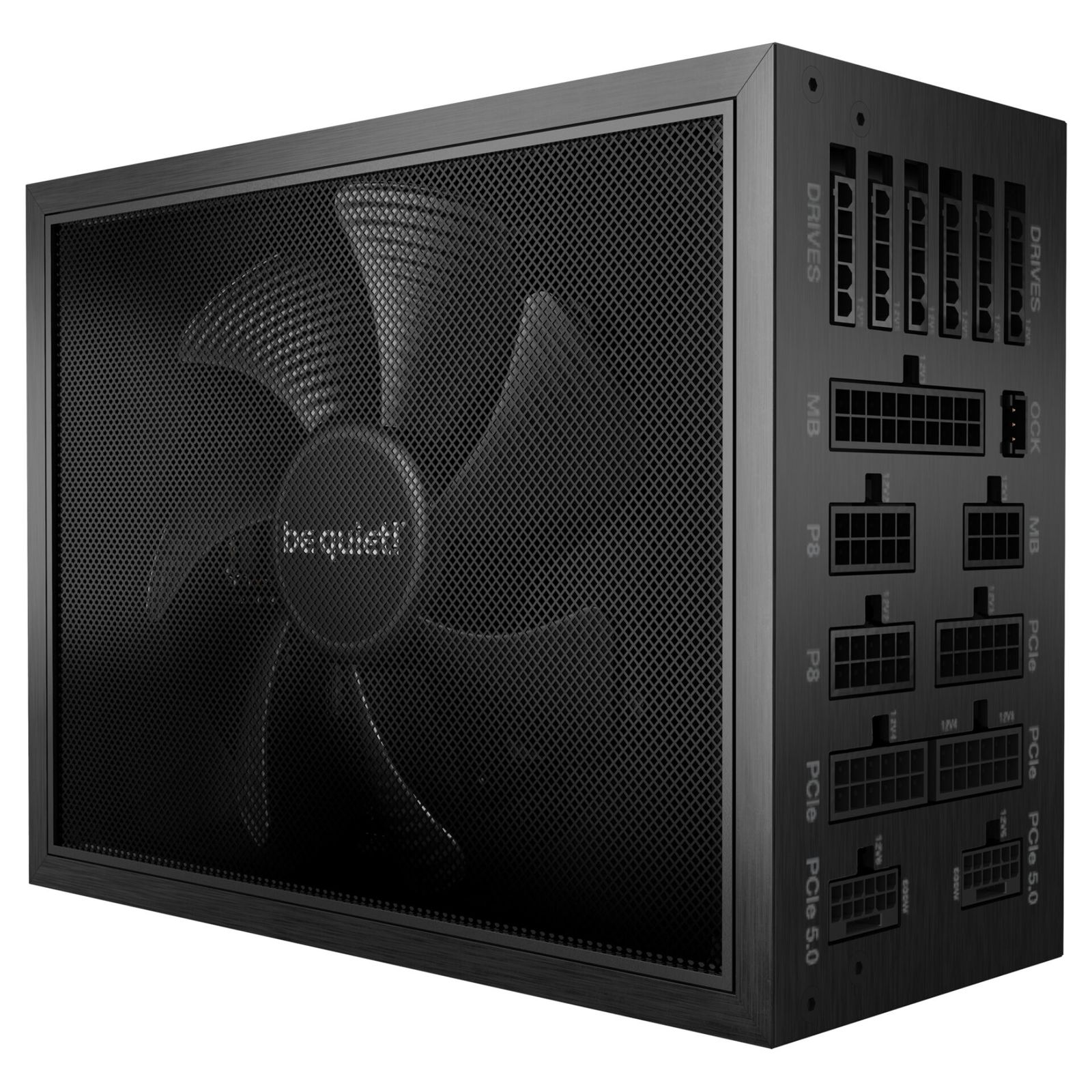

be quiet! DARK POWER PRO 13 1600W Power Supply

be quiet! DARK POWER PRO 13, 1600W power supply (PCIe 5.0 GPU support)

The be quiet! Dark Power Pro 13 1600W offers 80 PLUS Titanium efficiency, near-silent operation and meets ATX 3.0 specifications for next-gen GPU compatibility.

Features:

• 80 PLUS Titanium efficiency (up to 94.5%).
• ATX 3.0 power supply with full support for PCIe 5.0 GPUs and GPUs with PCIe 6+2 connectors
• Handles high peak loads
• Full digital control and full bridge LLC technology for optimal signal stability
• Frameless Silent Wings fan for virtually inaudible operation under normal load
• Overclocking key allows switching between 6 independent 12V lines and one solid 12V line
• Aluminium housing and individually wrapped cables for a sleek appearance

Technical data:

• Continuous power: 1600 W
• Peak power: 1700 W
• Form factor: Version 3.0
• Form factor EPS 12V: Version 2.92
• Topology: Full bridge + LLC + SR + DC/DC
• Digitally controlled
• Mains voltage: 100 - 240 V
• Mains frequency: 50 - 60 Hz
• Rated current: 17 / 9 A
• Power factor at 100% load: >0.99
• Modern standby
• Power consumption in stand-by: < 0.06 W
• Average life: > 100,000 (hrs / 25°C)
• Operating range up to: 50 °C
• Efficiency: 80 Plus Certification Titanium
• Fan size: 135 mm, 6-pin, max. 23.2 dB(A) at full load
• Fan noise (10% / 20% / 50% / 100% load): 9.5 / 9.6 / 9.8 / 31.1 dB(A)
• Fan speed: 2600 rpm

Connections:

• Modular cables
• Jacketed cables
• Ribbon cable
• Maximum cable length: 105 cm
• Cable length to mainboard: 60 cm
• Number of cables: 16
• ATX mainboard (20+4-pin): 1
• P4+4 (CPU): 1
• P8 (CPU): 1
• 12VHPWR cable: 2
• PCI-E 6+2-pin (GPU): 6
• SATA: 16
• PATA: 5

Security:

• Overheat protection: OTP
• Overcurrent protection: OCP
• Overload protection: OPP
• Short circuit protection: SCP
• Overvoltage protection: OVP
• Undervoltage protection: UVP
• Overvoltage protection and protection against excessive inrush current: SIP

Dimensions, colour, weight:

• Dimensions without cable: 200 x 150 x 86 mm
• Colour: black
• Weight: 2.44 kg
