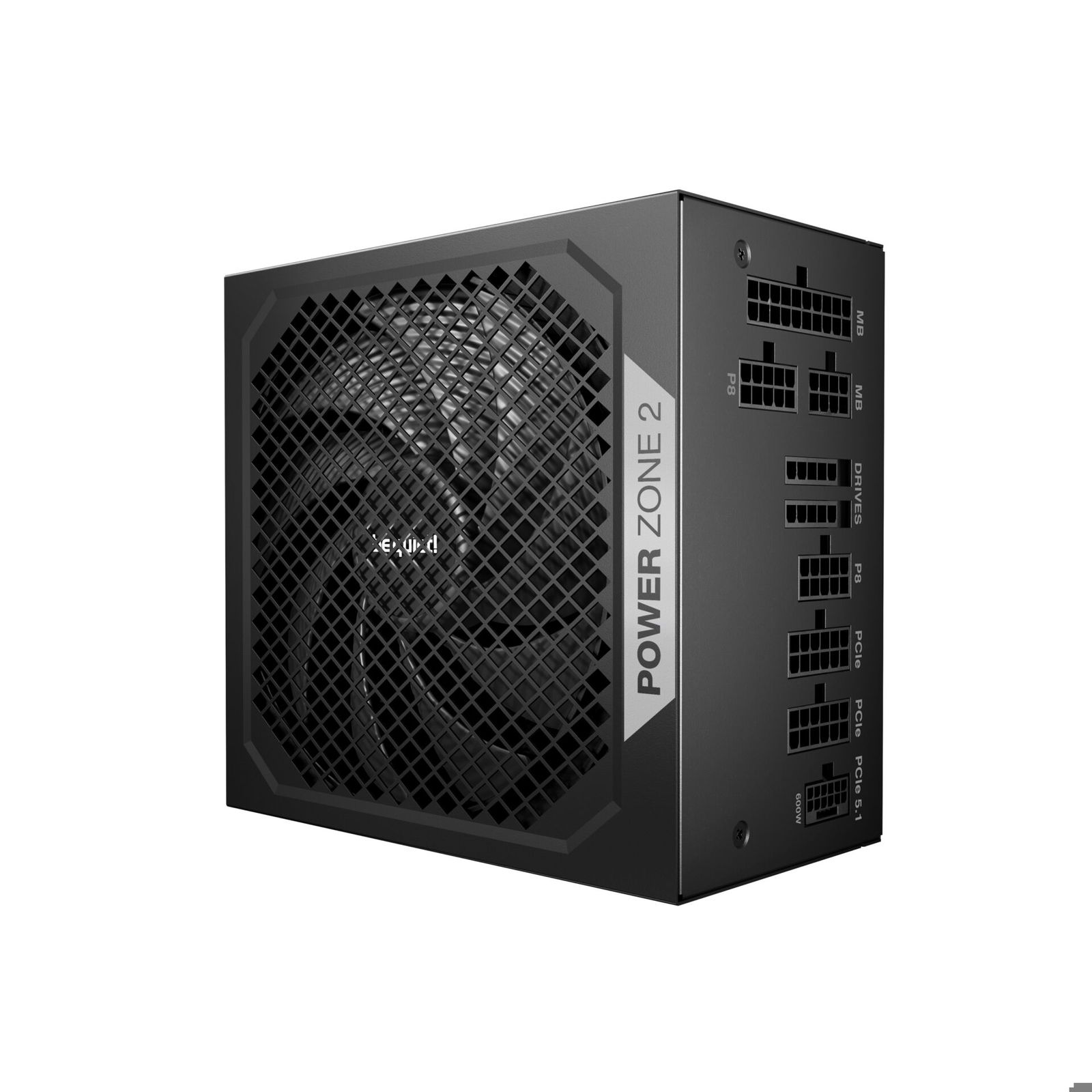

be quiet! POWER ZONE 2 1.000W Netzteil

be quiet! POWER ZONE 2 ATX 3.1, 1000 W Power Supply, fully modular, semi-passive, PCIe 5.1

Exceptional efficiency for gamers
Power Zone 2 (1000W) is an 80 PLUS Platinum certified power supply with semi-passive zero-rpm cooling for efficient and quiet gaming sessions.

Features:

• 80 PLUS Platinum and Cybenetics Platinum efficiency rating (up to 94.0%)
• Semi-passive zero-RPM cooling
• Fully modular
• Fan runs for 2-5 minutes to avoid frequent start-up noise
• Pure Wings 3 140mm fan for quiet and efficient cooling
• 90° angled 12V-2x6 connector and PCIe 5.1 / ATX 3.1 compatibility
• 1x 12VHPWR, max combined power 600 W (PCIe 5.1)
• Advanced voltage regulation and stability thanks to LLC technology
• Unique look with distinctive mesh design
• A massive high-performance 12 V rail
• Applications: gaming systems with high-end graphics cards, quiet PC systems, office applications

Technical data:

• Continuous power: 1000 W
• Peak power: 1070 W
• Input current: 13 / 6.5 A
• Mains voltage: 100 - 240 V (50-60 Hz)
• ATX 12V 3.1 / EPS 12V 2,92
• Fan: 1x 140 mm
• Noise at 10 / 20 / 50 / 100 % load: 6.5 / 6.5 / 6.5 / 27.2 dB(A)
• Power Good signal: 100 - 150
• PFC: active
• Efficiency at 230 V (2 / 10 / 20 / 50 / 100 %): 66.9 / 89.8 / 93.0 / 94.0 / 92.6 %
• Security: OCP, OVP, UVP, SCP, OPP, OTP, SIP
• Power supply life at 40°C (hours): >100000
• Number of cables: 8
• Maximum cable length: 100 cm
• Length ATX connection cable: 60 cm
• Connections:
  • 1x ATX mainboard (20 + 4-pin)
  • 1x 12 V 2x6 cable (PCIe 5.1), 600 W
  • 3x PCI-express (6 + 2 pins)
  • 1x P4+4, 1x P8
  • 7x SATA
  • 1x PATA
• Dimensions (L x W x H): 160 x 150 x 86 mm
• Colour: black
