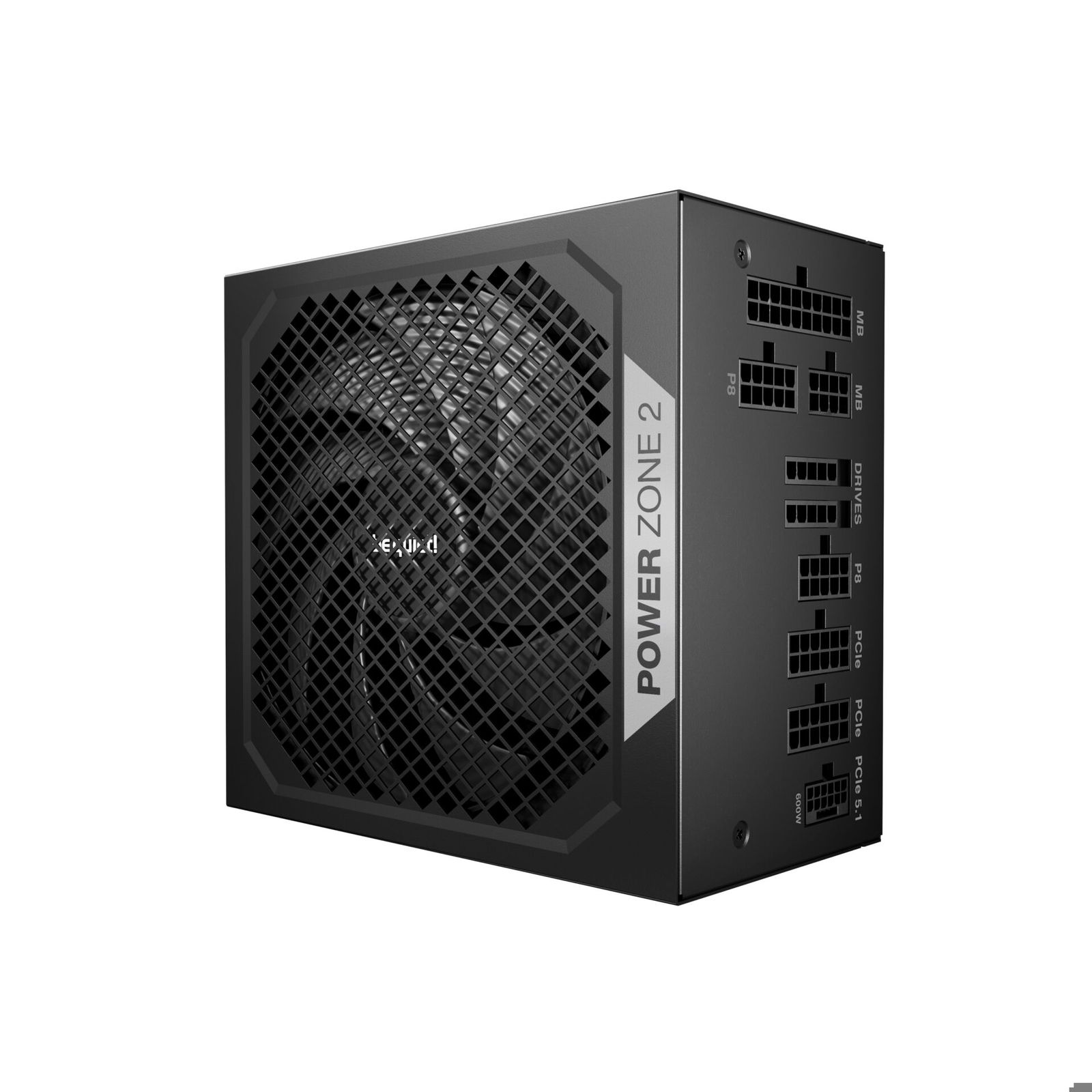

be quiet! POWER ZONE 2 850W Netzteil

be quiet! POWER ZONE 2 ATX 3.1, 850 W power supply, fully modular, semi-passive, PCIe 5.1

Exceptional efficiency for gamers
Power Zone 2 (850W) is a power supply with 80 PLUS Platinum certification and semi-passive Zero RPM cooling for efficient and quiet gaming sessions.

Features:

• 80 PLUS Platinum and Cybenetics Platinum efficiency rating (up to 94.1%)
• Semi-passive zero RPM cooling
• Fully modular
• Fan runs for 2-5 minutes to avoid frequent start-up noises
• Pure Wings 3 140 mm fan for quiet and efficient cooling
• 90° angled 12V 2x6 connector and PCIe 5.1 / ATX 3.1 compatibility
• 1x 12VHPWR, max. combined power 600 W (PCIe 5.1)
• Advanced voltage regulation and stability thanks to LLC technology
• Unique look with unmistakable mesh design
• A massive high-performance 12V rail
• Areas of application: Gaming systems with high-end graphics cards, quiet PC systems, office applications

Technical data:

• Continuous power: 850 W
• Peak power: 920 W
• Input current: 10 / 5 A
• Mains voltage: 100 - 240 V (50-60 Hz)
• ATX 12V 3.1 / EPS 12V 2.92
• Fan: 1x 140 mm
• Noise level at 10 / 20 / 50 / 100 % load: 6.5 / 6.5 / 6.5 / 24.9 dB(A)
• Power Good signal: 100 - 150
• PFC: active
• Efficiency at 230 V (2 / 10 / 20 / 50 / 100 %): 68.3 / 89.9 / 93.0 / 94.1 / 92.3 %
• Safety: OCP, OVP, UVP, SCP, OPP, OTP, SIP
• Service life of the power supply unit at 40°C (hours): >100000
• Number of cables: 8
• Max. Cable length: 100 cm
• ATX connection cable length: 60 cm
• Connections:
  • 1x ATX mainboard (20 + 4-pin)
  • 1x 12 V 2x6 cable (PCIe 5.1), 600 W
  • 3x PCI-express (6 + 2 pin)
  • 1x P4+4, 1x P8
  • 7x SATA
  • 1x PATA
• Dimensions (L x W x H): 160 x 150 x 86 mm
• Colour: black
