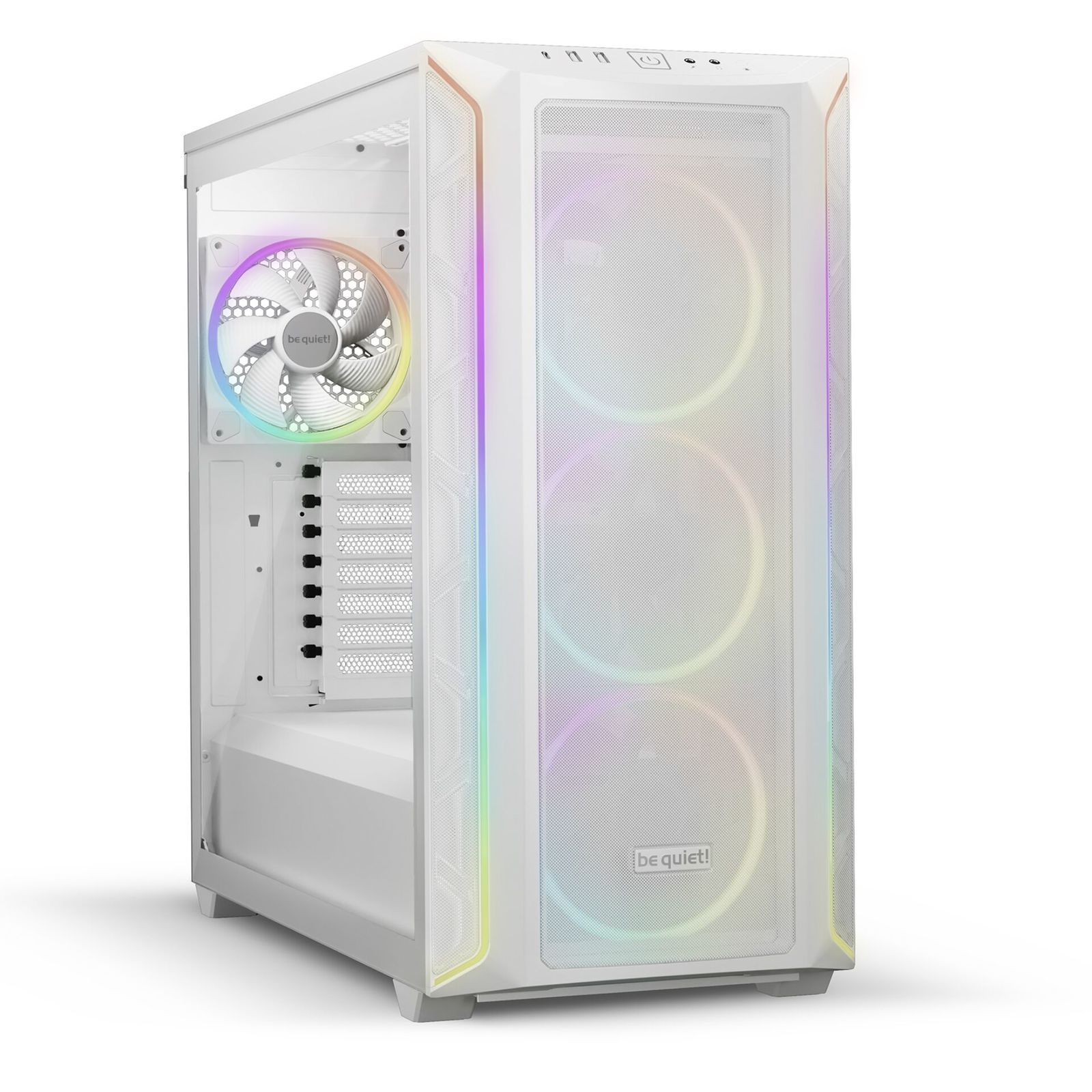

be quiet! SHADOW BASE 800 FX White

be quiet! SHADOW BASE 800 FX, ARGB fan, white

Features:

• Impressive lighting, outstanding airflow
• The Shadow Base 800 FX white is an airflow-optimized case with ARGB lighting and space for bulky components such as large graphics cards and E-ATX motherboards.
• ARGB lighting with ARGB control for maximum design options
• Various colors and modes for a custom look
• 4 Light Wings White 140mm PWM fans provide high airflow with quiet operation
• Outstanding high airflow thanks to open mesh design
• Spacious design with enough room even for the largest components
• Integrated PWM and ARGB hub
• Easy and tool-free installation of HDDs and SSDs
• Tinted side window made of tempered glass allows a great insight
• Removable dust filters: 2x (1x front, 1x bottom)
• PCI slots: 7

Form Factor / Motherboard Compatibility:

• PSU form factor: ATX PS/2
• Motherboard Compatibility: E-ATX / ATX / M-ATX / Mini-ITX

Dimensions, weight, material:

• Color: white
• Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
• Case dimensions excl. feet (L x W x H): 550 x 247 x 503 mm
• Case dimensions incl. feet (L x W x H): 550 x 247 x 522 mm
• Form factor PSU: ATX PS/2
• Weight: 12.3 kg
• Material: steel, plastic, glass

Maximum fan installation:

• Maximum fans: 8
• Top: 3x 140 / 3x 120 mm
• Front: 3x 140 / 3x 120 mm
• Rear: 1x 140 / 1x 120 mm
• Bottom: 1x 140 / 1x 120 mm

Pre-installed fans:

• Fan front: 3x Light Wings White 140 mm PWM
• Fan rear: 1x Light Wings White 140 mm PWM
• Dimensions (L x W x H): Front: 140 x 140 x 25 mm / Rear: 140 x 140 x 25 mm
• Speed at 100% PWM / 12V: 1500 rpm
• Air flow at 100%: 56 / 95.14 CFM / m3/h
• Air pressure at 100% PWM / 12V: 1.49 mm H2O
• Noise level at 100% PWM / 12V: 23.3 dB(A)
• Voltage range: 5 - 13.2 V DC
• Power consumption: 3.84 W
• Rated current: 0.32 A
• Connector plug: 4-pin PWM
• Life expectancy @ 25 °C: ca, 60000 h

Optional radiator installation:

• Top: 120 / 140 / 240 / 280 / 360 / 420 mm
• Front: 120 / 140 / 240 / 280 / 360 / 420 mm
• Rear: 120 mm

Power supply compatibility:

• Maximum dimensions excl. fan at the case bottom: 305 mm
• Maximum dimensions incl. fan at the case bottom: 260 mm

Graphics card compatibility:

• With HDD cage (in height of the graphics card): 430 mm
• Without HDD cage (in height of the graphics card): 430 mm
• Maximum PCI slots with vertical graphics card: 7

Drive capacity:

• 3.5" slots (included): 2
• 3.5" slots (max.): 2
• 2.5" slots (included): 4
• 2.5" slots (max.): 8

Cooling:

• Max. installation height of the CPU cooler: 180 mm
• Air channels: Front / Top / Rear / Bottom

Lighting:

• LED lighting
• LEDs: 40
• LED technology: ARGB - 5V
• LEDs synchronizable with control / motherboard

I/O Panel:

• 1x USB Type-C 3.2 Gen. 2
• 2x USB Type-A 3.2 Gen 1
• 1x HD-Audio

Isolation and damping:

• Side panel noise insulated
• Decoupled HDD cages
• Decoupled fans
• Decoupled power supply
