Blackmagic Design Pyxis Monitor

Blackmagic Design Pyxis Monitor

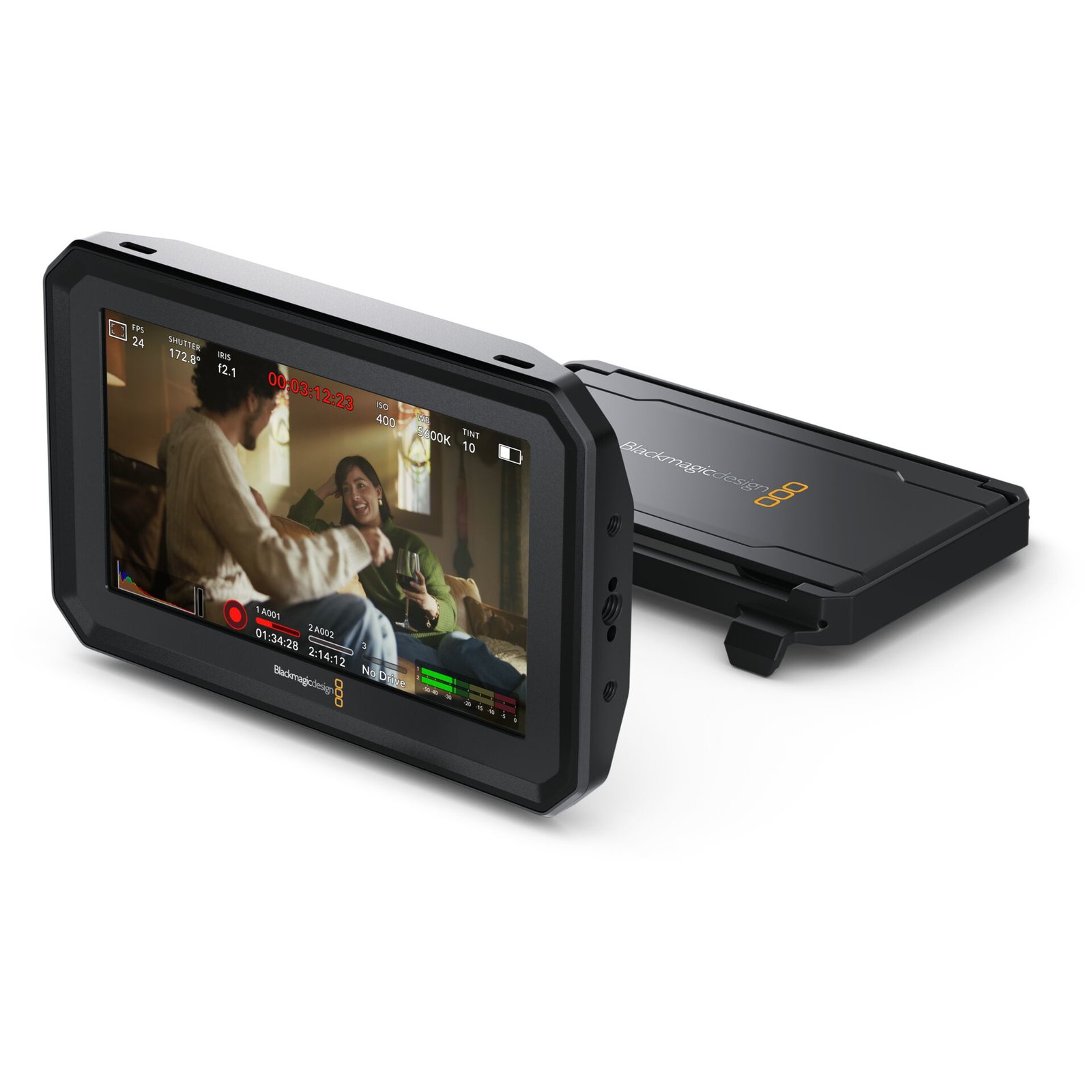

The Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted almost anywhere, making it perfect for use when rigging or when other accessories are blocking the view of the Blackmagic PYXIS's integrated screen. The bright, super-bright 1500-nit screen makes monitoring easier, even in bright sunshine. It has a removable lens hood that can be folded up to protect the monitor. The Blackmagic PYXIS monitor is easy to set up with a single USB-C cable connection for video, power and camera control.

Features:

• Display size: 5" (12.7 cm)
• Display resolution: 1920 x 1080 Full HD
• Display type: Capacitive LCD touchscreen
• Brightness: 1500 cd/m²
• Frame rates: Up to 60 fps
• Tally: Rear-facing LED tally
• Acceleration sensor: Automatic image rotation when mounted upside down
• Compatible cameras: Blackmagic PYXIS 6K, Blackmagic PYXIS 6K PL, Blackmagic PYXIS 6K EF, Blackmagic URSA Cine 12K LF, Blackmagic URSA Cine 17K 65
• Connections: USB-C with lockable connector for video, power, data and software updates
• Attachment points:
  • 1 x 1/4-inch thread with 20 threads on the bottom with ARRI dowel pin pattern
  • 2 x M4 mounting points at the bottom
  • 1 x 1/4-inch thread with 20 threads on the long side with ARRI dowel pin pattern
  • 2 x M4 mounting points on the long side
• Operating systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or higher, Windows 10 and 11
• Power supply: Via USB-C
• Operating temperature: 0 - 40°C
• Dimensions (LxWxH): 142.5 x 30 x 92 mm
