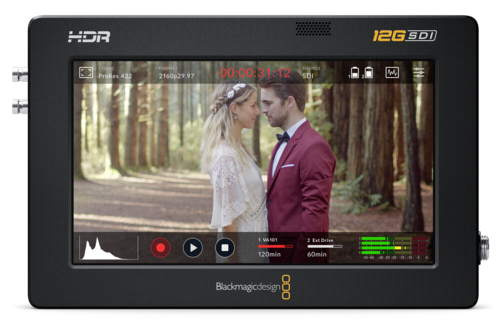

Blackmagic Design Video Assist 5 12G HDR

Blackmagic Video Assist 5” 12G HDR

The 5" Blackmagic Video Assist 12G HDR enables professional monitoring and recording with any SDI or HDMI camera in all HD, Ultra-HD, 2K and 4K-DCI formats. The super-bright 5-inch HDR monitor with 2500 nit supports 3D LUTs and has professional scopes as well as powerful focusing and exposure aids for precise focusing, exposure and cadence. The built-in SD card recorder stores files in broadcast quality 10-bit 4:2:2 ProRes and DNx. You can cut these popular formats directly without having to convert them.

Connectivity:

• SDI video inputs: 1 Micro-BNC
• SDI video outputs: 1 Micro-BNC
• SDI rates: 270 Mbit; 1.5 G; 3 G; 6 G; 12 G
• HDMI 2.0a video inputs: 1
• HDMI 2.0a video outputs: 1
• Analog Audio Inputs: Not available, embedded audio only
• Analog audio outputs: 1 x 3.5mm headphone jack
• Built-in speaker: 1 mono
• Screen dimensions: 5 inches with 1920 x 1080 pixels
• Screen brightness: 2500 nits
• Screen color: P3 color space
• SDI Audio Inputs: 16 channels embedded in 12G SDI
• SDI Audio Outputs: 16 channels embedded in 12G SDI
• HDMI Audio Inputs
• 8 channels embedded in HDMI 2.0a
• HDMI audio outputs: 8 channels embedded in HDMI 2.0a
• Remote control: None
• SD interface: 1 SD slot for UHS II cards
• Memory Type: Removable SD cards with SDXC-UHS-II, SDXC-UHS-I and SDHC-UHS-I
• Supports the following SD cards: DS, HS, SDR12, SDR25, DDR50 and SDR104
• Computer interface: 1 generation 1 USB type C 3.1 for recording to external drives, initial setup, software updates and software control via Video Assist Utility

Storage medium:

• 1 UHS-II SD card for Ultra HD, compatible with regular SD for HD recording

Storage medium type:

• SD cards of types SDXC UHS-II,SDXC UHS-I and SDHC UHS-I

Control:

• Recorder control: Integrated capacitive LCD touchscreen with Blackmagic OS for on-screen control of settings and navigation menus
• No external control
