Design
Mounting type: Wall
Form factor: Bullet
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Product colour: White
Power
Power source type: DC
Power consumption (typical): 2.4 W
DC output voltage: 12
Power consumption (max): 7.5 W
Security
Video motion detection: Yes
Human and vehicle targets classification: Yes
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Management features
Reset button: Yes
Weight & dimensions
Weight: 340 g
Length: 158.3 mm
Diameter: 7.68 cm
Network
Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Ethernet interface type: Fast Ethernet
Bluetooth: Yes
System requirements
Mobile operating systems supported: iOS, Android
Performance
Placement supported: Outdoor
Day/night mode: Yes

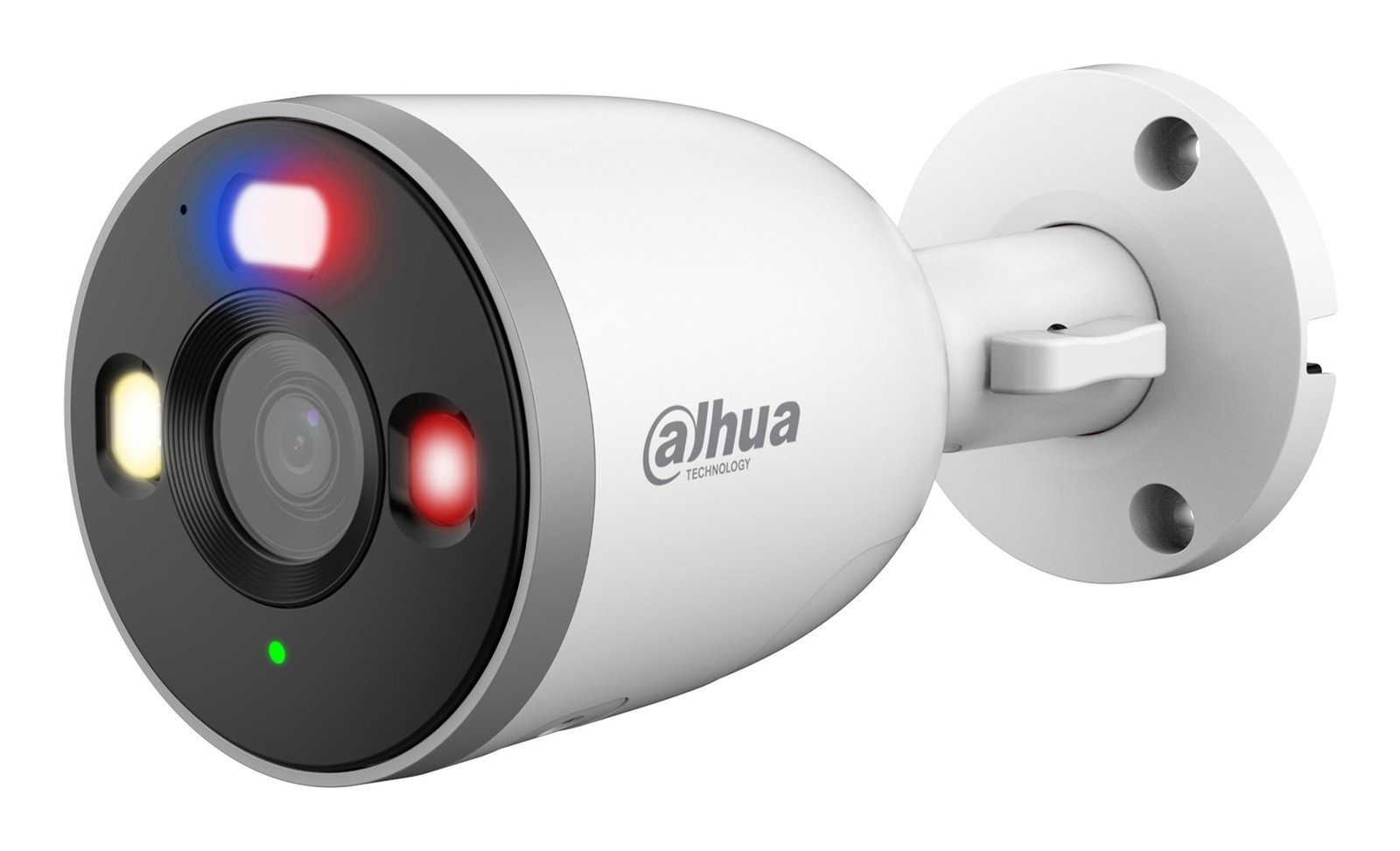

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wireless
Packaging content
Number of cameras: 1
Manual: Yes
Audio
Built-in microphone: Yes
Audio formats supported: G.711 A-law, PCM, G.711 μ-law
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Maximum memory card size: 256 GB
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Camera tilt control: Yes
Angle of rotation: 360°
Minimum illumination: 0.007 lx
Lens viewing angle, diagonal: 124°
Lens viewing angle, horizontal: 104°
Lens viewing angle, vertical: 56°
Tilt angle range: 0 - 90°
Image sensor
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS
Video
Digital Wide Dynamic Range (DWDR): Yes
Total megapixels: 5 MP
Frame rate: 30 fps
Video compression formats: H.264H, H.265, H.264B, H.264
Video recording: Yes
Maximum resolution: 2880 x 1620 pixels
Video streaming: Yes
Night vision
Night vision distance: 30 m
Night vision: Yes
Number of illumination LEDs: 2
LED type: IR
Lens system
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Fixed focus: Yes
Sustainability
Compliance certificates: CE
