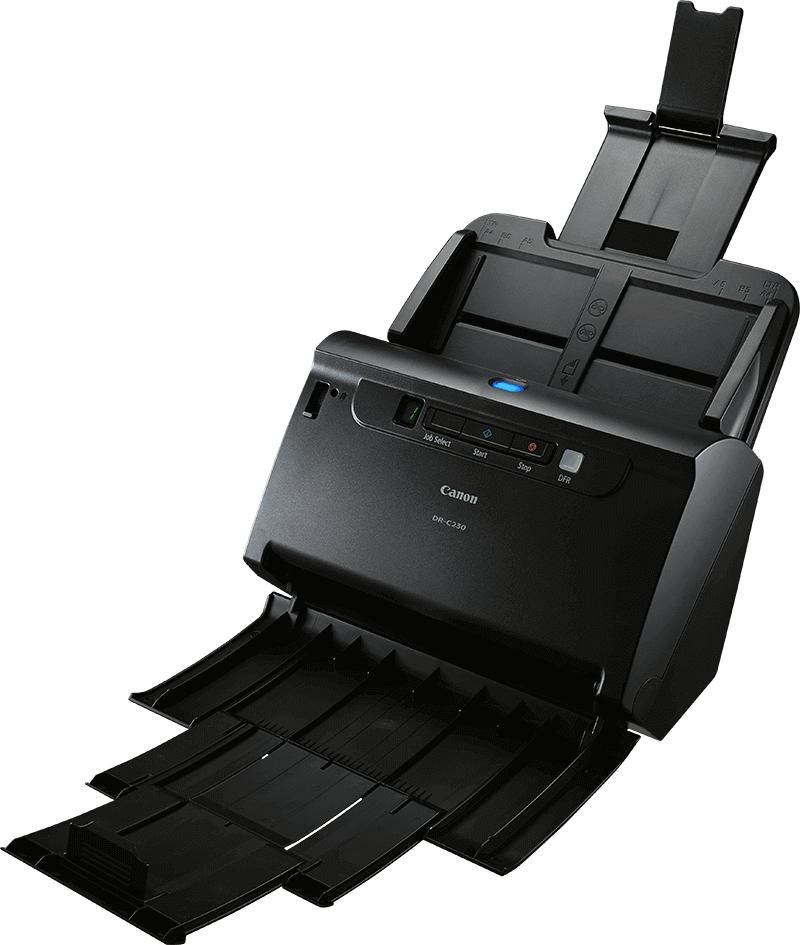

Canon imageFORMULA DR-C230 Sheet-fed scanner 600 x 600 DPI A4 Black

Technical details
Sustainability certificates: ENERGY STAR
Compliance certificates: RoHS

Design
Built-in display: No
Product colour: Black
Scanner type: Sheet-fed scanner

Power
Input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power consumption (off): 0.1 W
Power consumption (standby): 1.4 W
Power supply type: AC
Power consumption (typical): 19 W

Operational conditions
Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 10 - 32.5 °C

Weight & dimensions
Weight: 2.8 kg
Depth: 253 mm
Height: 231 mm
Width: 291 mm

System requirements
Windows operating systems supported: Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 10 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 7 Ultimate x64, Windows 8.1 Pro, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 Home, Windows 7 Starter x64, Windows 7 Professional x64, Windows 10 Home x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 10 Education, Windows 10 Education x64, Windows 10, Windows 10 IOT Core, Windows 7 Enterprise, Windows 7 Home Basic, Windows 7 Ultimate
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2008 R2

Performance
Daily duty cycle (max): 3500 pages
Sensor type: CMOS CIS
Scan drivers: TWAIN, ISIS
Light source: RGB LED

Packaging content
AC adapter included: Yes
Cables included: AC, USB

Ports & interfaces
USB version: 2.0
USB port: Yes
Standard interfaces: USB 2.0

Other features
Scan media weight: 27 - 209 g/m²

Logistics data
Harmonized System (HS) code: 84716070

Input capacity
Standard input capacity: 60 sheets

Paper handling
Maximum ISO A-series paper size: A4
Maximum scan length: 3 m
Multi feed detection: Yes
Maximum scan width: 21.6 cm
Scanning media types supported: Plastic Card, Business Card
Media thickness (min): 0.06 mm

Scanning
ADF scan speed (b/w, A4): 30 ppm
ADF scan speed (colour, A4): 30 ppm
Colour scanning: Yes
Greyscale levels: 256
Duplex ADF scan speed (b/w, A4): 60 ipm
Duplex scanning: Yes
Output colour depth: 24 bit
Maximum scan size: 216 x 3000 mm
Output greyscale depth: 8 bit
Optical scanning resolution: 600 x 600 DPI
Duplex ADF scan speed (colour, A4): 60 ipm
