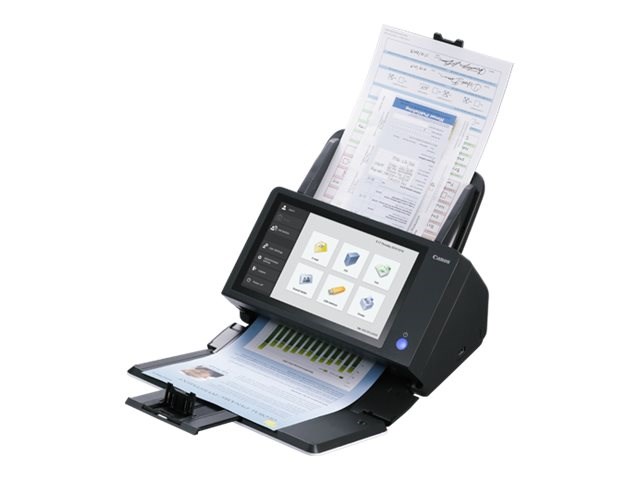

Canon imageFORMULA ScanFront 400 Network Document Scanner

Technical details
Panel type: TFT

Design
Product colour: Black, White
Display diagonal: 25.6 cm (10.1")
Touchscreen: Yes
Built-in display: Yes
Display resolution: 1024 x 600 pixels
Display: TFT
Scanner type: ADF scanner

Power
Input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 40 W
Power consumption (off): 0.5 W
Power supply type: AC

Operational conditions
Operating temperature (T-T): 10 - 32.5 °C
Operating relative humidity (H-H): 20 - 80%

Weight & dimensions
Height: 230 mm
Width: 305 mm
Weight: 4.5 kg
Depth: 282 mm

Network
Supported network protocols: TCP/IP (IPv4), DNS, DHCP, SMB, NTP, HTTP, FTP, SFTP, Secure sending (FTPS and SMTPS), WebDAV, LDAPS
Ethernet LAN: Yes

Performance
Scan file formats: TIFF, PDF, PNG
Daily duty cycle (max): 6000 pages
Light source: RGB LED
Scan to: E-mail, USB, FTP, Fax
Sensor type: CMOS CIS

Ports & interfaces
Standard interfaces: Ethernet, USB 2.0
USB port: Yes
USB version: 2.0

Other features
Compliance certificates: RoHS

Logistics data
Harmonized System (HS) code: 84716070

Input capacity
Auto document feeder (ADF) input capacity: 60 sheets

Paper handling
Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
Auto Document Feeder (ADF) media weight: 27 - 209 g/m²
Maximum ISO A-series paper size: A4
Media thickness (min): 0.04 mm
Maximum scan width: 21.6 cm
Maximum scan length: 35.6 cm
ISO A-series sizes (A0...A9): A4

Scanning
Maximum scan size: 216 x 356 mm
Optical scanning resolution: 600 x 600 DPI
Colour scanning: Yes
ADF scan speed (b/w, A4): 45 ppm
Greyscale levels: 256
Duplex scanning: Yes
ADF scan speed (colour, A4): 45 ppm

Sustainability
Sustainability certificates: ENERGY STAR
