Technical details
Compliance certificates: BSMI, CCC, UKCA, Federal Communications Commission (FCC), RCM, BIS
Warranty period: 10 year(s)
Design
Product colour: Black
Fan location: Top
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 13.5 cm
On/off switch: Yes
Fan speed: 0 - 2300 RPM
Power
Power protection features: Over power, Overheating, Short circuit, Over voltage, Under voltage, Over current

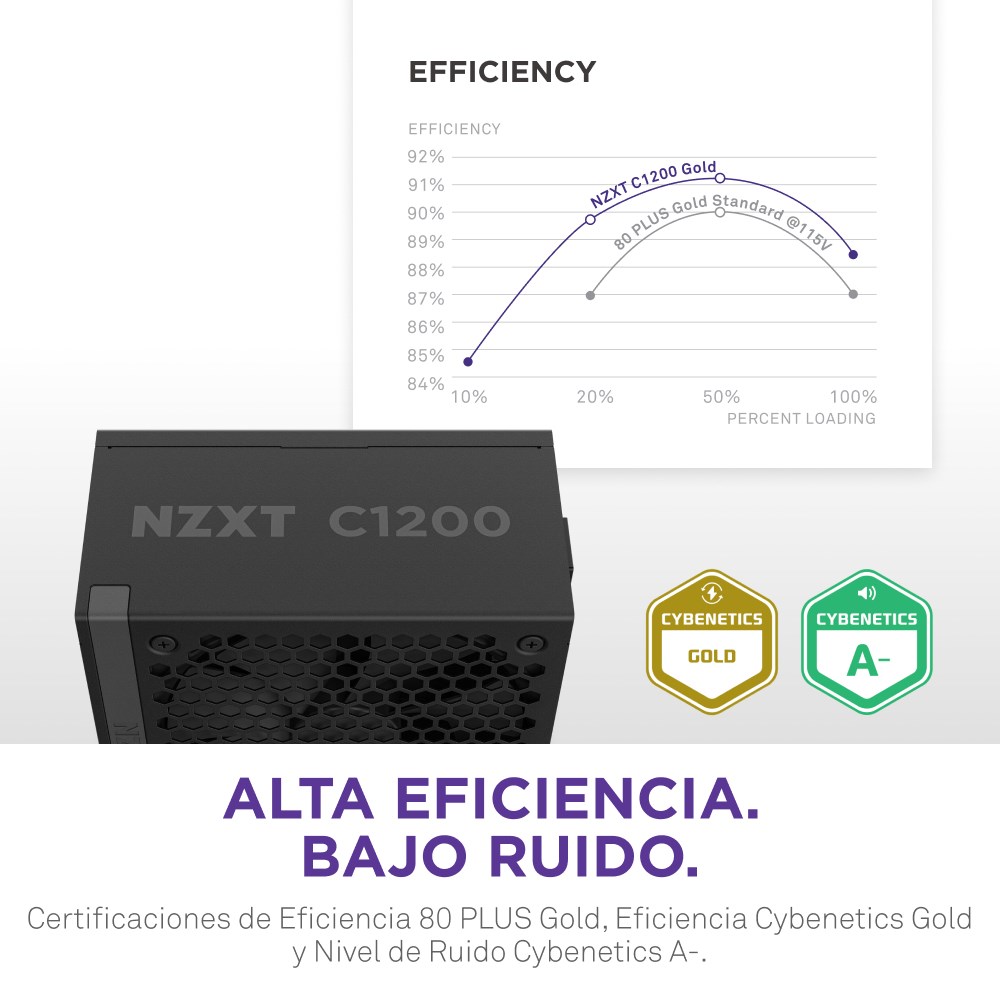

Efficiency: 91.6%
Power Factor Correction (PFC) type: Active
Total power: 1200 W
Combined power (+3.3V): 120 W
AC input voltage: 100 - 240 V
Input current: 7 - 14 A
Max output current (+3.3V): 22 A
Combined power (-12V): 3.6 W
Combined power (+5V): 15 W
Max output current (-12V): 0.3 A
Combined power (+5Vsb): 15 W
Combined power (+12V): 1200 W
Max output current (+12V): 100 A
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
Depth: 160 mm
Height: 86 mm
Width: 150 mm
Performance
Power supply unit (PSU) form factor: ATX
Noise level: 44.5 dB
ATX version: 3.1
Purpose: PC
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
EPS version: 2.92
Ports & interfaces
Cabling type: Fully-Modular
ATX Power connector (24-pin): Yes
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Peripheral (Molex) power cable length: 150, 500 mm
Number of SATA power connectors: 12
SATA power cable length: 500 mm, 150
CPU power connector (4+4 pin): Yes
