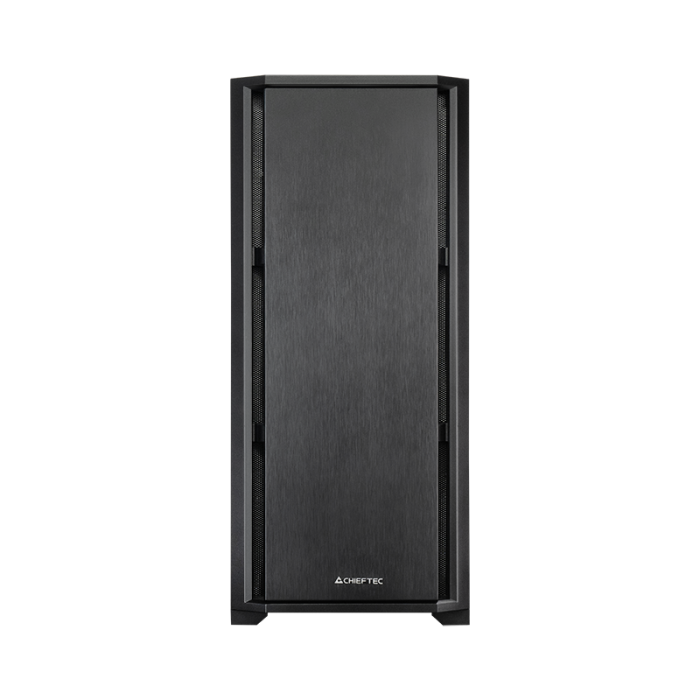

The CHIEFTEC AS-02B-TG-OP boasts an elegant and subtle design with a brushed front panel, complemented by a modern interior layout optimized for cooling.
In addition, it features tempered glass on the left side and a pre-installed 120 mm PWM fan on the rear.
The CHIEFTEC AS-02B-TG-OP is ready to offer customers an enhanced experience of elegance and quality design.
Color: Black
Material: 0.6 mm SPCC
Motherboard support: Mini ITX, mATX, ATX
Dimensions (DxWxH): 390 mm x 215 mm x 485 mm
Weight (without/with packaging): 5.3 kg / 6.2 kg
External drive bays -
Internal drive bays 3x 2.5" and 2x 3.5"
ATX PSU power supply (optional, ~220 mm)
Front connectors: 1x USB Type C, 1x USB 3.0, 2x USB 2.0, audio output (AZALIA / HD-Audio), microphone input
Rear: 1x 120 mm PWM fan pre-installed
Expansion slots 7
Cooling compatibility Front: 3x 120 mm or 2x 140 mm fans or 240 mm radiator or 280 mm radiator or 360 mm radiator
Top: 2x 120 mm or 2x 140 mm fans or 240 mm radiator or 280 mm radiator
Rear: 1x 120 mm fan
Power supply cover: 2 x 120 mm fans
CPU cooler height (max.) 165 mm
VGA card length (max.) 340 mm (295 mm when water cooling is installed at the front)
Official manufacturer website: https://www.chieftec.eu/products-detail/630/AS-02B-TG-OP
