Technical details
Compliance certificates: RoHS, CE
Features
Payment methods supported: Contactless, EMV (Chip & PIN)
Plug and Play: Yes
Application area: Access control, Banking & payments

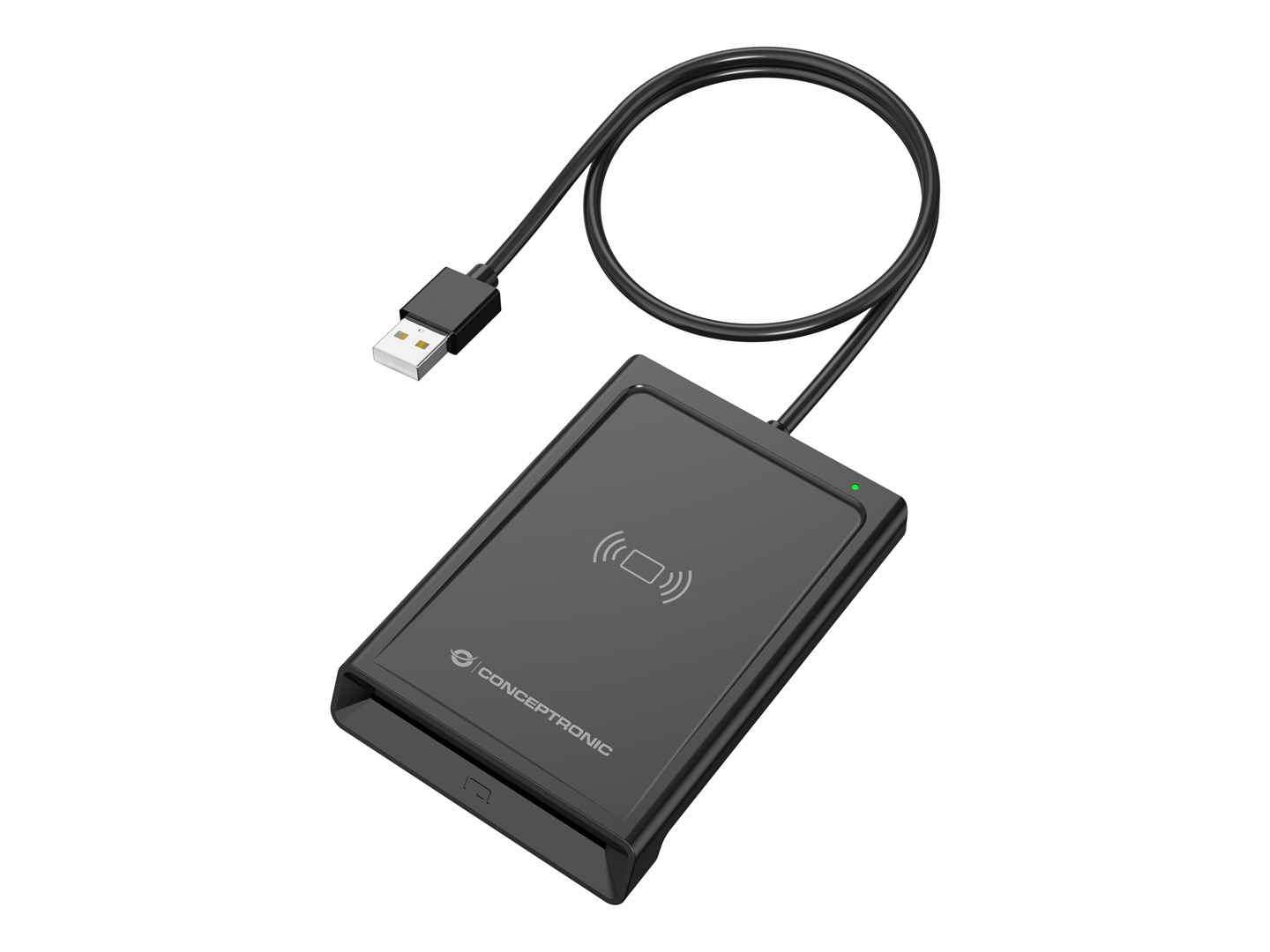

Product type: Universal smart card reader
Design
Country of origin: China
Cable length: 1 m
Product colour: Black
Placement supported: Indoor
Power
Power source: USB
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Weight & dimensions
Weight: 100 g
Depth: 69 mm
Height: 14.8 mm
Width: 100 mm
System requirements
DNIe compatibility: Yes
Windows operating systems supported: Windows 8 x64, Windows 10 Education, Windows 10 Home x64, Windows 8, Windows 11 Home, Windows 7 Ultimate x64, Windows 7 x64, Windows 10 Pro x64, Windows 8 Enterprise, Windows 8 Pro x64, Windows 10 Pro, Windows 7 Home Premium, Windows 11 x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 7 Professional x64, Windows 11 Enterprise, Windows 11 Pro, Windows 7 Professional, Windows 7, Windows 10 Home, Windows 7 Starter x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 10, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 11, Windows 7 Home Basic, Windows 7 Ultimate, Windows 10 Education x64, Windows 11 Enterprise x64
Linux operating systems supported: Yes
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 15.0 Sequoia, Mac OS X 10.14 Mojave, Mac OS X 14.0 Sonoma, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Packaging data
Package weight: 126 g
Package type: Box
Package depth: 90 mm
Package width: 180 mm
Package height: 25 mm
Quick installation guide: Yes
Compliance industry standards: ISO 7816 Class A, B, C (5V, 3V, 1.8V) ISO 14443 Type A and Type B ISO 15693 ISO/IEC 18092 (NFC) T0 and T1 protocol support PC/SC 2.0 smart card industry standard Microsoft USB-CCID Microsoft WHQL I2C memory card:
SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5518, SLE5528, SLE5532, SLE5536, SLE5542, SLE6636 AT-series memory card: AT88SC102, AT88SC153, AT88SC1608, AT45D021, AT45D041
Ports & interfaces
Interface: USB 2.0
Near Field Communication (NFC): Yes
Logistics data
Customs product code (TARIC): 8471900000
Pallet gross width: 120 cm
Master (outer) case length: 315 mm
Master (outer) case gross weight: 8.5 kg
Master (outer) cases per pallet: 40 pc(s)
Pallet gross length: 80 cm
Products per master (outer) case: 60 pc(s)
Pallet gross height: 183.2 cm
Master (outer) case width: 435 mm
Master (outer) case height: 210 mm
